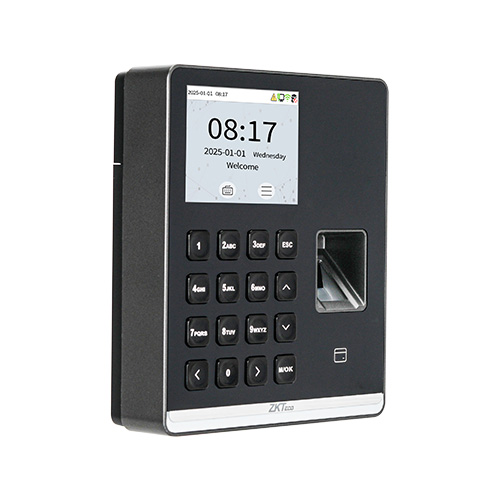

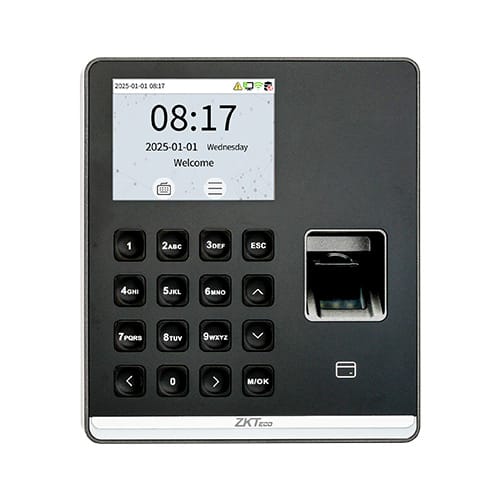

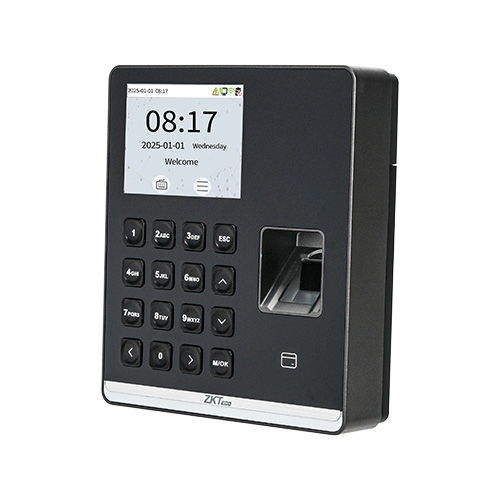

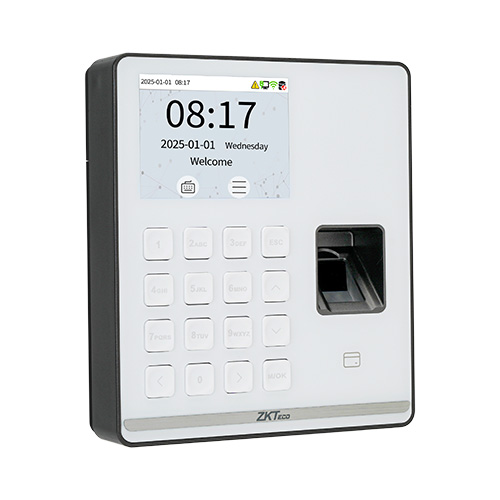

The ZKTeco SenseFP M1 is a simple and affordable fingerprint time and attendance terminal designed for small to medium businesses. With fingerprint, RFID card, and password authentication, plus built-in Wi-Fi and ZKBio Zlink compatibility, it provides a reliable way to track staff attendance without complex setup.
The ZKTeco SenseFP M1 is designed for businesses that need a straightforward,
dependable way to track staff attendance. No complicated setup, no unnecessary features —
just a practical device that works.
Whether you’re running a small office, retail store, warehouse, or workshop,
the SenseFP M1 helps you keep accurate records of who is on-site and when.
Fingerprint verification takes less than 1.5 seconds, giving staff a quick and reliable way to clock in and out.
Supports up to 500 users, making it ideal for small to medium businesses that need a simple attendance solution.
Connect the device to your network without extra cabling and manage attendance data remotely through ZKBio Zlink.
Choose between fingerprint, RFID card, or PIN depending on what works best for your team.
The SenseFP M1 integrates with ZKBio Zlink, allowing you to:
This makes it a strong option for businesses that want cloud-based visibility without investing in complex systems.
With a simple interface, physical keypad, and clear display, staff can use the device with minimal training.
It’s built to be reliable in day-to-day environments without overcomplicating the process.
| Specification | Details |
|---|---|
| Model | SenseFP M1 |
| Product Type | time & attendance Terminal with Fingerprint Authentication |
| Authentication Methods | Fingerprint / RFID Card / Password |
| Fingerprint Technology | ZK Optical Sensor |
| Biometric Algorithm | ZKFingerprint V13.0 |
| Display | 2.8" TFT Colour LCD (320 × 240) |
| User Interface | 16 Physical Keypad Buttons |
| Operating System | Linux |
| Memory | 8MB RAM / 16MB ROM |
| Speaker | Built-in 1W Speaker |

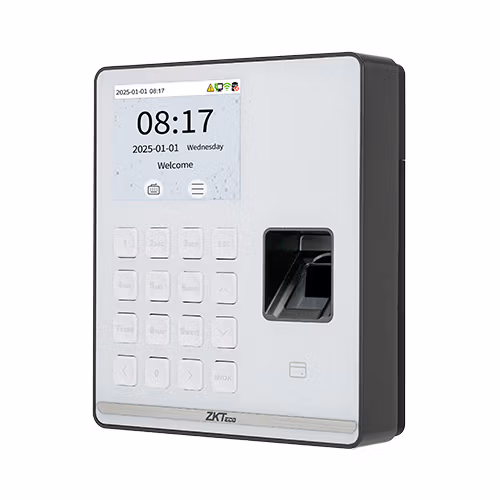

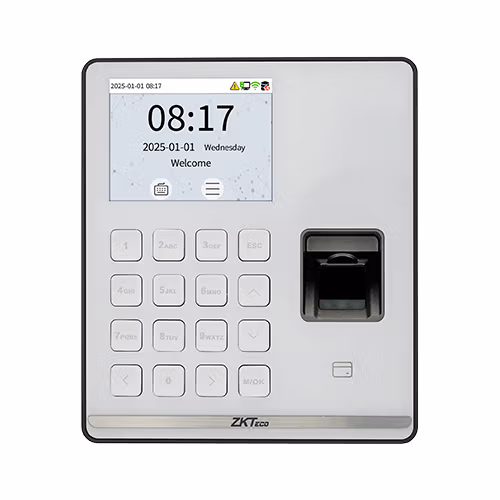

| Colour Options | Black / White |
| User Capacity | 500 Users |
| Fingerprint Capacity | 500 Templates |
| Card Capacity | 500 Cards |
| Transaction Logs | 100,000 Records |
| Password Length | Up to 6 Digits |
| Authentication Speed | < 1.5 seconds (Fingerprint) |
| FAR | < 0.0001% |
| FRR | < 0.1% |
| Card Type | 125kHz ID Card (Standard) / 13.56MHz IC Card (Optional) |
| Communication | Wi-Fi (2.4GHz IEEE 802.11 b/g/n), USB (for firmware/data import) |
| Standard Functions |
DST, Record Query, Automatic Status Switch, Multiple Authentication Methods, T9 Input, Online Firmware Upgrade, Up to 14-digit User ID |
| Optional Features | IC Card Module |
| Power Supply | DC 5V 2A |
| Operating Temperature | 0°C to 45°C |
| Operating Humidity | 20% to 80% RH (Non-condensing) |
| Dimensions | 135.5 × 118.23 × 35.95 mm |
| Net Weight | 0.245 kg |
| Gross Weight | 0.485 kg |
| Supported Software | ZKBio Zlink (Mobile App & Cloud Platform) |
| Installation | Wall-mounted (Single Gang / Asian Gang Box compatible) |
| Typical Applications | Small to Medium Businesses, Offices, Retail, Basic Workforce Management |
