ZKTeco UA860: Biometric Time Attendance and Access Control Terminal with Color Screen
ZKTeco UA860

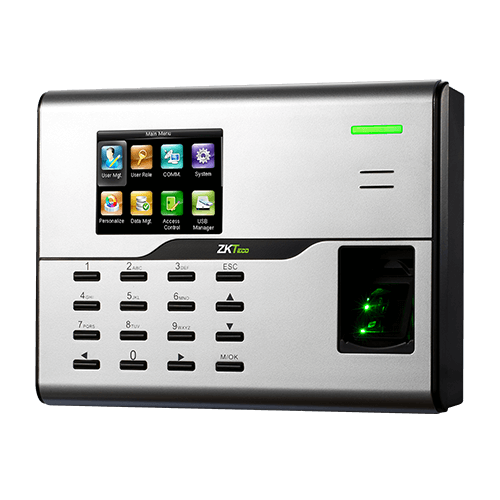

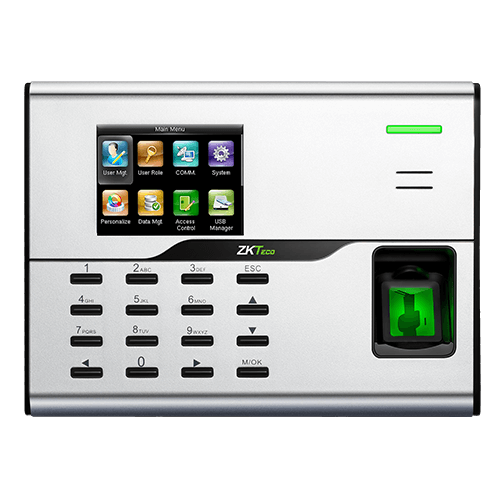

The ZKTeco UA860 is a biometric terminal with a 2.8-inch color screen for time attendance and access control applications. It adopts BioID fingerprint collector for excellent recognition and has internal WiFi for convenient communication.
Features
- Supports fingerprint identification
- Stores up to 3,000 fingerprint templates
- Supports ID card identification (optional)
- Supports Wi-Fi connectivity
- User-friendly management software for easy configuration and attendance reporting
Product Details
The ZKTeco UA860 is a biometric terminal with a 2.8-inch color screen for time attendance and access control (primary) applications. It adopts BioID fingerprint collector for excellent recognition and has internal WiFi for convenient communication. Users can manage data via TCP/IP, WiFi, and USB-host port for data up/download to avoid the risk of accidental deletion. Optional ADMS can achieve remote data management with ZKTime.Net 3.0.
The UA860 has a user capacity of 3,000, a fingerprint capacity of 3,000, and an ID card capacity of 3,000 (optional). It has a record capacity of 50,000. Its standard functions include 14-digit User ID, T9 Input, SMS, DST, Self-Service Query, Automatic Status Switch, Schedule Bell, Workcode, Multiple Verify Modes, RS232 External Printer. Interfaces for access control include 3rd Party Electric Lock, Exit Button. Optional functions include IC/ID Card, Webserver, ADMS, Backup Battery.
The UA860 uses ZKTime.Net 3.0 software and has a power supply of DC 12V / 1.5A. Its verification speed is ≤1 Sec. The device operates at a temperature range of 0°C - 45°C and humidity range of 20% - 80%. Its dimensions are 185 * 137 * 38.2mm (LxWxT).
Specifications
| Feature | Specification |
|---|---|
| User Capacity | 3,000 |
| Fingerprint Capacity | 3,000 |
| ID Card Capacity | 3000 |
| Record Capacity | 50,000 |
| Display | 2.8’ color screen |
| Communication | TCP/IP, WiFi, USB-host |
| Standard Functions | 9 Digit User ID, T9 Input, SMS, DST, Self-Service Query, Automatic Status Switch, Ring bell |
| Optional Functions | ID/Mifare, WDMS, RS232 External Printer |
| Access Control Interface | 3rd Party Electric Lock, Exit Button |
| Software | ZKTime.Net 3.0 |
| Power Supply | DC 12V/1.5A |
| Operating Temp | 0 °C - 45 °C |
| Operating Humidity | 20%-80% |
| Dimension | 185*137*38.2mm (LxWxT) |
Downloads
[download_now_page]
Related products
-
SpeedFace-V5L[P]: High-Speed Biometric Terminal
-
ZKTeco WL20: Fingerprint Time Attendance Terminal
-
ZKTeco D2: Tabletop Biometric Time Attendance Terminal
-
ZKTeco VF380: Face Identification Time Attendance Terminal
-
ZKTeco uFace602 Plus: Multi-Biometric Time & Attendance Terminal
-
ZKTeco uFace800 Plus: Multi-Biometric Time Attendance Terminal
ZKTeco UA860
The ZKTeco UA860 is a biometric terminal with a 2.8-inch color screen for time attendance and access control applications. It adopts BioID fingerprint collector for excellent recognition and has internal WiFi for convenient communication.
Features
- Supports fingerprint identification
- Stores up to 3,000 fingerprint templates
- Supports ID card identification (optional)
- Supports Wi-Fi connectivity
- User-friendly management software for easy configuration and attendance reporting
Recommended Retail Price (NZ) $645.00 + GST
Product Details
The ZKTeco UA860 is a biometric terminal with a 2.8-inch color screen for time attendance and access control (primary) applications. It adopts BioID fingerprint collector for excellent recognition and has internal WiFi for convenient communication. Users can manage data via TCP/IP, WiFi, and USB-host port for data up/download to avoid the risk of accidental deletion. Optional ADMS can achieve remote data management with ZKTime.Net 3.0.
The UA860 has a user capacity of 3,000, a fingerprint capacity of 3,000, and an ID card capacity of 3,000 (optional). It has a record capacity of 50,000. Its standard functions include 14-digit User ID, T9 Input, SMS, DST, Self-Service Query, Automatic Status Switch, Schedule Bell, Workcode, Multiple Verify Modes, RS232 External Printer. Interfaces for access control include 3rd Party Electric Lock, Exit Button. Optional functions include IC/ID Card, Webserver, ADMS, Backup Battery.
The UA860 uses ZKTime.Net 3.0 software and has a power supply of DC 12V / 1.5A. Its verification speed is ≤1 Sec. The device operates at a temperature range of 0°C - 45°C and humidity range of 20% - 80%. Its dimensions are 185 * 137 * 38.2mm (LxWxT).
Specifications
| Feature | Specification |
|---|---|
| User Capacity | 3,000 |
| Fingerprint Capacity | 3,000 |
| ID Card Capacity | 3000 |
| Record Capacity | 50,000 |
| Display | 2.8’ color screen |
| Communication | TCP/IP, WiFi, USB-host |
| Standard Functions | 9 Digit User ID, T9 Input, SMS, DST, Self-Service Query, Automatic Status Switch, Ring bell |
| Optional Functions | ID/Mifare, WDMS, RS232 External Printer |
| Access Control Interface | 3rd Party Electric Lock, Exit Button |
| Software | ZKTime.Net 3.0 |
| Power Supply | DC 12V/1.5A |
| Operating Temp | 0 °C - 45 °C |
| Operating Humidity | 20%-80% |
| Dimension | 185*137*38.2mm (LxWxT) |
Downloads
[download_now_page]
Reviews
There are no reviews yet.
