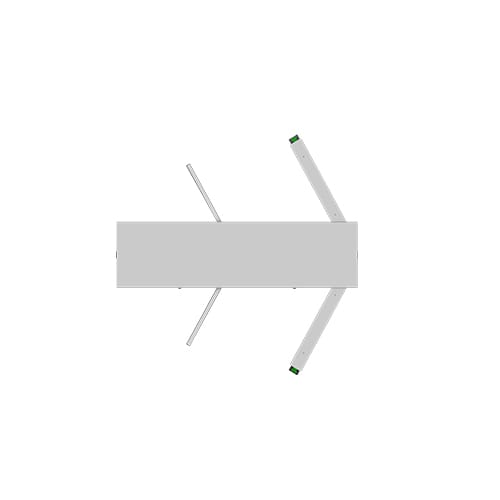

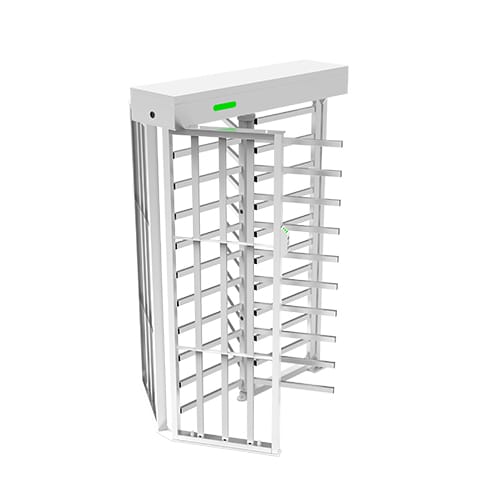

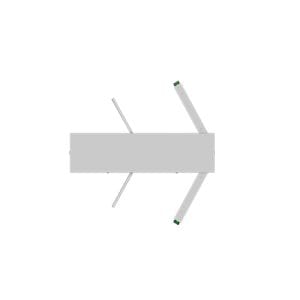

The ZKTeco FHT3300 full height turnstile controls pedestrian movement through a three-blade rotor that advances in 120° steps. It suits projects that need a defined entry point within a perimeter or building entrance, with the physical turnstile linked to the chosen access control system.
The standard lane is 550mm wide. Each travel direction can be configured independently for controlled access, locked operation or free rotation, allowing the entrance and exit policy to match how a site operates. Red-cross and green-arrow LED indicators in the vertical column show whether passage is denied or allowed.
The FHT3300 and FHT3400 are both single-lane members of the FHT3000 series. The FHT3300 uses three rotor blades with 120° rotation; the FHT3400 uses four blades with 90° rotation. Their standard passage width is the same, so the FHT3400 should not be treated as a second-lane or wider-access version.

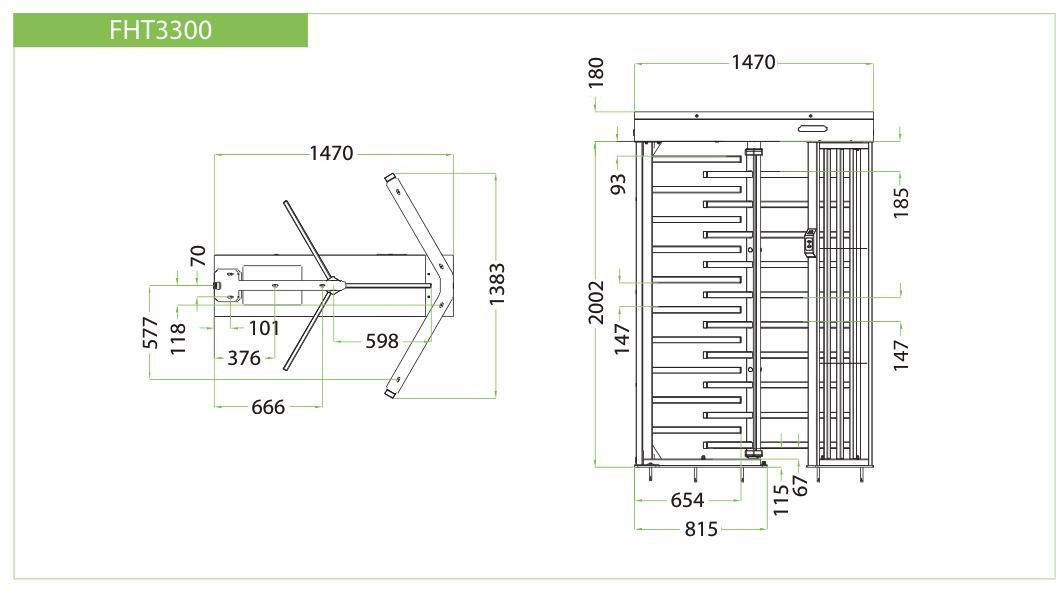

At 1470 × 1382.5 × 2182mm and 260kg net, the FHT3300 has the narrower overall enclosure and lower weight of the two models. These model-specific dimensions matter when checking the entrance footprint, delivery route, foundation and clearances. Use the FHT3300 dimension drawing in the gallery when planning the installation.
Reader options include ProID10 for RFID credentials, FR1500S for fingerprint verification and QR500 for QR codes. Other fingerprint reader integrations are identified by the manufacturer, but the exact reader, controller and interface arrangement must be confirmed for the project. Readers and access packages are configuration choices; do not assume every authentication method is supplied with the base turnstile.
ZKBio CVSecurity support depends on the installed access controller. Static and dynamic QR verification also require suitable software support. Specify the credential method, controller and software together so the turnstile fits the site’s access permissions and administration process.
The housing and lid use SUS304 stainless steel with a #120-grit hairline finish; SUS316 is optional. The design includes removable rotor rods and access to the mainboard/controller area for maintenance. Anti-tailgating functionality supports the physical access barrier, while an emergency mode unlocks the rotor during emergencies.
The IPX4 rating provides splash protection. Assess rainfall exposure, drainage and corrosive conditions before selecting an outdoor location; the installation guide cautions against wet or corrosive environments unless the equipment is suitably rated. Confirm the appropriate material and protection arrangement for the actual site.
Allow for a flat, level, solid floor, secure anchoring, grounding and correctly separated power/control wiring. An optional base plate is available for unfinished floors. The specified supply is AC110–220V, 50/60Hz with a 40W power rating; confirm the supplied electrical configuration for the installation.
The 550mm rotating lane does not provide a wide accessible entrance. Plan a suitable separate route for wheelchairs, larger items and the site’s wider emergency-access arrangement. Confirm the required passage rate against the intended credentials and real traffic pattern rather than assuming a brochure maximum will be achieved.
Compare our full height turnstiles, or consider the FHT2400D dual-lane turnstile if the project needs two lanes. Request an FHT3300 quote with your entrance dimensions, expected users, credential system, installation environment and emergency-access requirements.
| Model | FHT3300 |
|---|---|
| Lane type | Single lane |
| Rotor configuration | 3-blade rotor |
| Rotation per passage | 120° |
| Passage width | 550mm |
| Lane height | 2002mm |
| Overall dimensions (L × W × H) | 1470 × 1382.5 × 2182mm |
| Net weight | 260kg |
| Gross weight | 300kg |
| Housing and lid | SUS304 stainless steel; #120-grit hairline finish |
| Optional material | SUS316 stainless steel |
| Rotor arm material | Stainless steel |
| Direction configuration | Bi-directional; controlled, locked or free rotation independently configurable |
| Visual indication | Red cross: passage denied; green arrow: passage allowed |
| Controller | Standard full height turnstile controller |
| Mainboard functions | System configuration, entry-log memory and safety logic |
| Mainboard communication | 1 × fire-alarm relay port; 1 × RS485 port |
| Fire signal input | Voltage-free contact |
| Credential options | ProID10 RFID; FR1500S or third-party fingerprint readers; QR500 QR reader — configuration dependent |
| Supported software | ZKBio CVSecurity — depends on installed access controller |
| QR verification | Static and dynamic QR require suitable software support |
| Power supply | AC110–220V, 50/60Hz |
| Power rating | 40W |
| Noise level | Less than 60dB |
| MCBF | 1 million |
| Operating temperature | -28°C to 60°C |
| Operating humidity | 0% to 95% RH, non-condensing |
| Ingress protection | IPX4 |
| Emergency mode | Rotor unlocks automatically during emergencies |
| Security function | Anti-tailgating |
| Site preparation | Flat, level, solid floor; optional base plate for unfinished floors |
| Environment | Indoor / outdoor, subject to site exposure assessment and installation-guide precautions |
