Manage two pedestrian lanes in one unit with the ZKTeco FHT2400D full height turnstile. Its semi-automatic rotating barriers, SUS304 stainless steel construction and 580 mm passage width suit commercial and industrial entrances. Choose the base turnstile or an RFID or fingerprint access control configuration for indoor or sheltered outdoor installation.

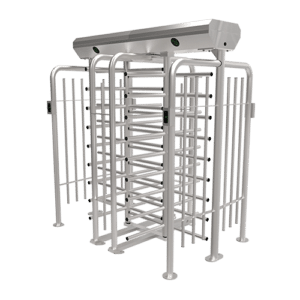

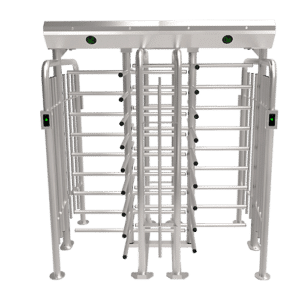

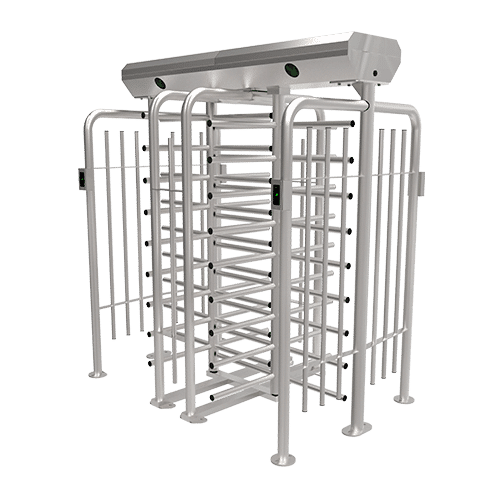

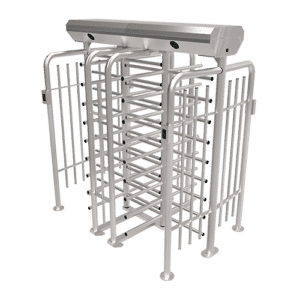

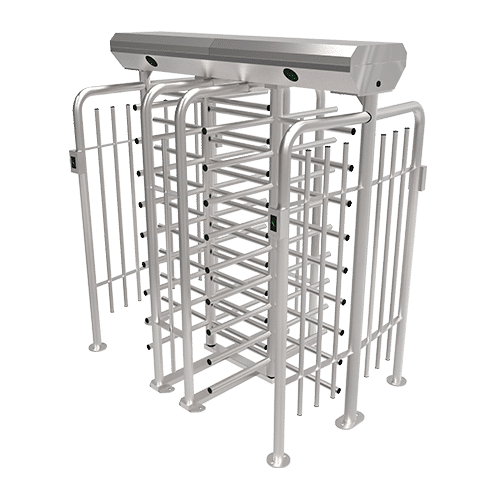

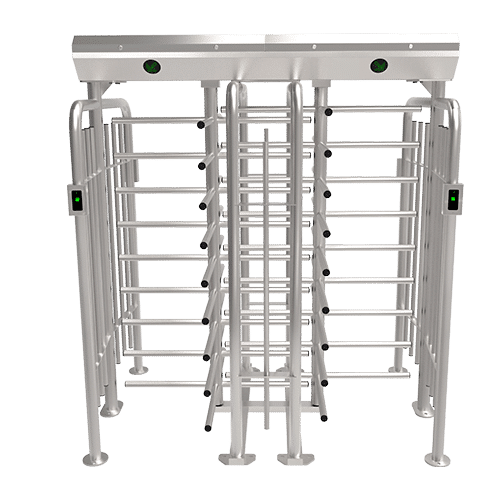

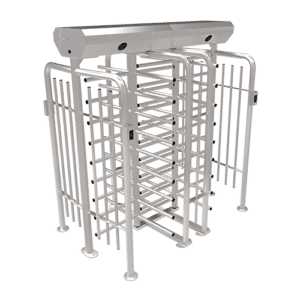

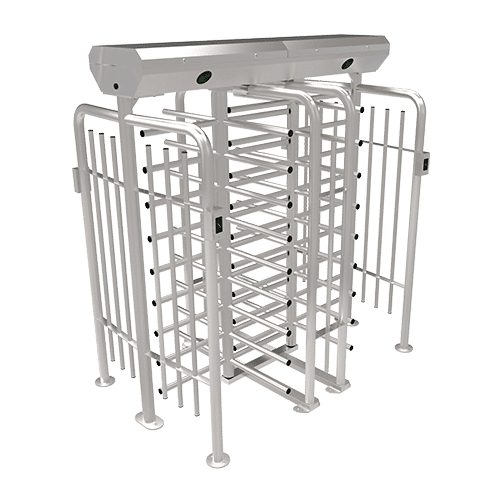

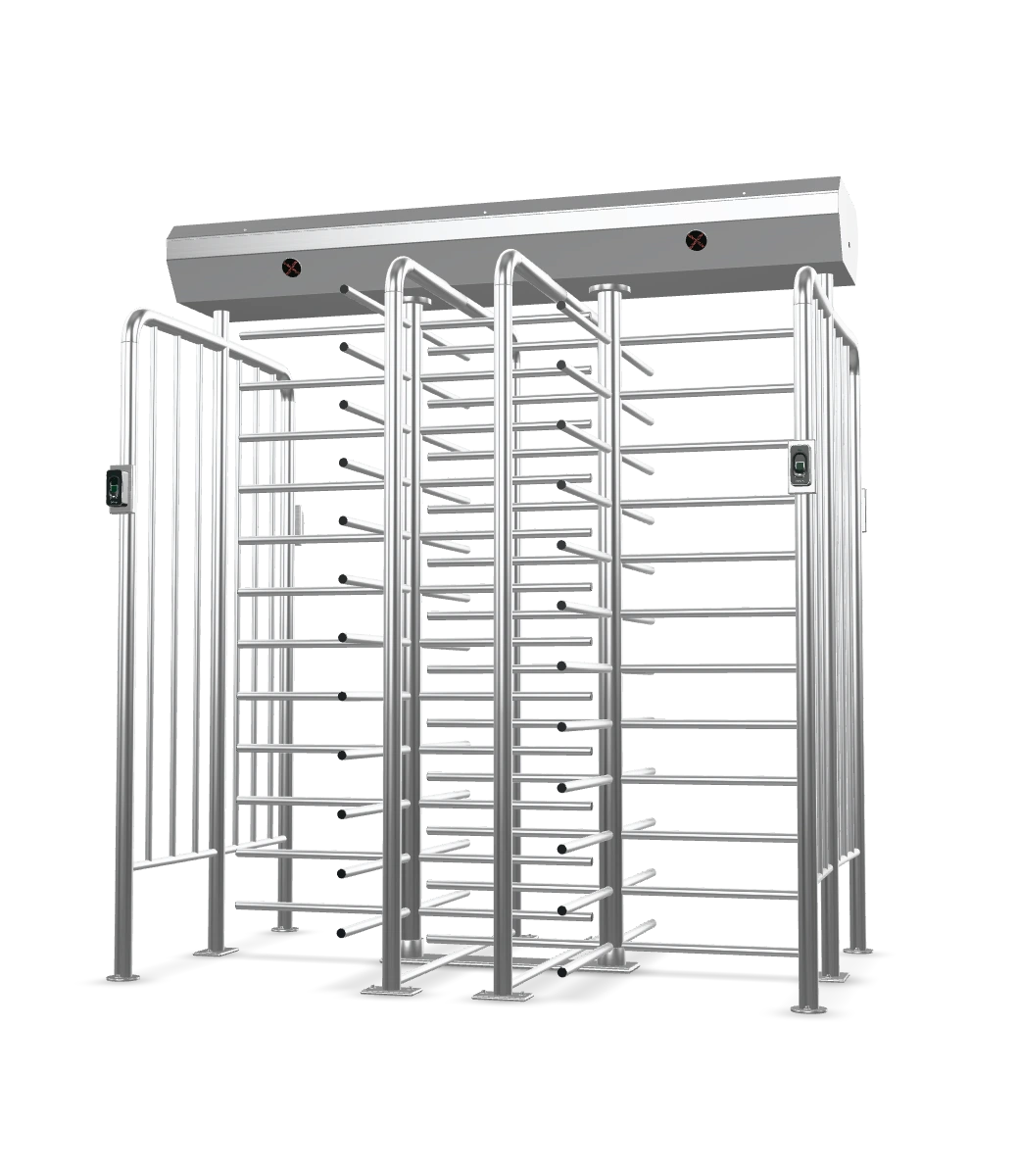

The ZKTeco FHT2400D combines two full height pedestrian passages in one turnstile assembly. It provides a defined access point for industrial facilities, corporate sites, government premises and transport facilities where entry needs to be managed through a physical barrier.
The D-series layout is wider than the single-lane FHT2400 turnstile: the FHT2400D footprint is 2018 × 1324 mm, with a 580 mm passage width. Compare the available turnstile types when planning the number of lanes and the entrance layout.
The mechanism releases after an authorised access signal, allowing the pedestrian to push the rotating barrier through the passage. This is semi-automatic operation: the rotor is moved by the person using the turnstile. LED direction indicators give users visible guidance at the entrance.
With the appropriate access configuration, maximum throughput is 20 people per minute using RFID or 15 people per minute using fingerprint verification. Treat these as manufacturer maximums when planning busy changeovers or arrival periods; the reader, credential checks and user behaviour affect actual flow.
Confirm the controller, reader specification, credential technology and required software with NZTeco before ordering. These choices define the complete access control system and its integration requirements.
The SUS304 stainless steel cabinet and rotating barriers have an IP54 ingress rating. SUS316 barrier material is optional. Install indoors or in a sheltered outdoor position, and assess drainage, exposure and the surrounding environment. Avoid highly corrosive environments such as seaside locations, chemical plants and saline soils unless the proposed installation has been assessed for the application.
Allow for the 2018 × 1324 mm footprint, a suitable mounting surface, power and control cabling, and access for maintenance. The overall height is 2220 mm; confirm the supplied unit and final installation drawing before setting clearances. Plan accessible pedestrian access and emergency escape routes as part of the wider entrance design. Emergency mode is supported, but the full site arrangement needs to be specified for the project.
Contact NZTeco for a project quote with your site location, lane count, expected traffic, preferred credentials and existing access control details.
| Specification | Details |
|---|---|
| Product | ZKTeco FHT2400D Series dual-lane full height turnstile |
| Mechanism | Semi-automatic; pedestrian pushes the rotating barrier after access is released |
| Base model | FHT2400D: turnstile without an access control system |
| RFID configuration | FHT2411D: C3-400 controller with four RFID readers (June 2024 manual configuration) |
| Fingerprint configuration | FHT2422D: InBio460 controller with four fingerprint readers (June 2024 manual configuration) |
| Lane width | 580 mm |

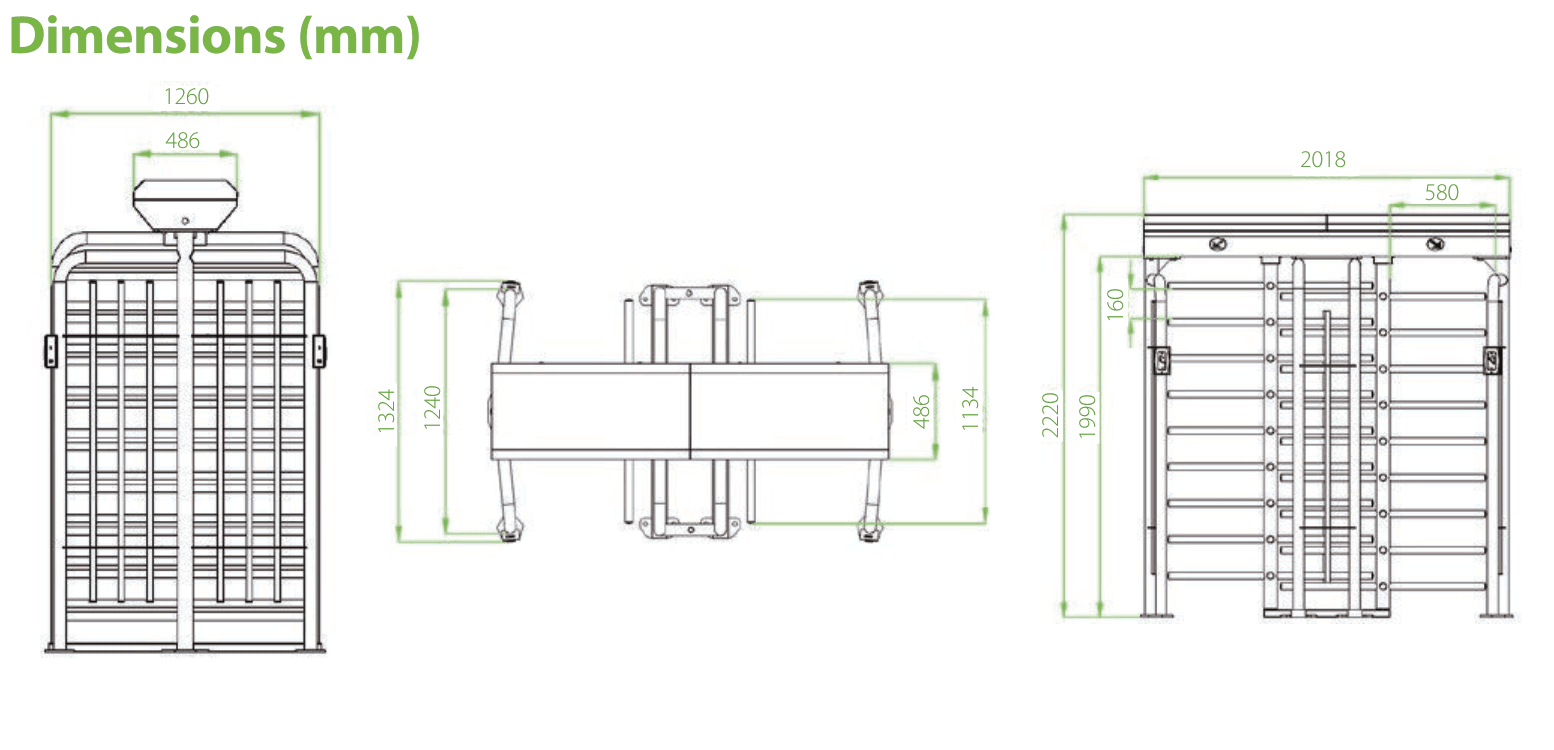

| Footprint (L × W) | 2018 × 1324 mm |
| Overall dimensions (L × W × H) | 2018 × 1324 × 2220 mm (V2.0 brochure and manual drawing; confirm final installation dimensions) |
| Barrier movement | Rotating |
| Cabinet material | SUS304 stainless steel |
| Barrier material | SUS304 stainless steel; SUS316 optional |
| Ingress protection | IP54 |
| Installation environment | Indoor or sheltered outdoor; avoid highly corrosive environments |
| Operating temperature | −28°C to 60°C |
| Operating humidity | 0% to 95% |
| Power requirements | AC110V / 220V, 50 / 60Hz |
| Input control signal | Switching signal |
| Communication interface | RS232 (turnstile controller; access system connectivity depends on selected controller) |
| Maximum throughput — RFID | 20 people per minute with suitable RFID configuration |
| Maximum throughput — fingerprint | 15 people per minute with suitable fingerprint configuration |
| Direction indicator | LED indicator supported |
| Emergency mode | Supported; emergency and escape arrangements require project-specific design |
| MCBF | 1 million cycles |
Overall height is 2220 mm in the V2.0 product brochure and the June 2024 manual drawing; the manual specification table states 2200 mm. Confirm the supplied unit and installation drawing before setting clearances. Maximum throughput depends on the selected access system and how the entrance is used.
