Portable, single-lane full-height turnstile for high-security pedestrian access. Supports RFID, fingerprint, QR and facial authentication options; designed for rapid deployment, indoor or covered-outdoor installations.

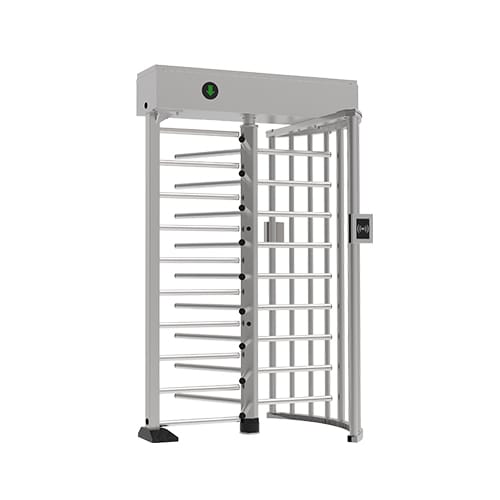

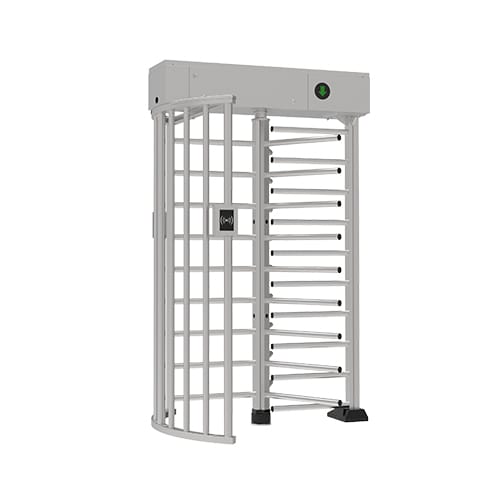

The ZKTeco Saturn-H1300 is a single-lane, full-height pedestrian turnstile for sites that need a physical access boundary without permanently committing the gate to one location. Its modular construction is designed for rapid deployment, convenient transport and redeployment, making it well suited to temporary access points, project sites and changing perimeter requirements.
Traditional full-height turnstiles are often fixed installations. Saturn-H1300 is designed to be disassembled into compact modules, then reassembled where access control is needed next. The 600mm pedestrian lane uses a three-blade stainless-steel rotor and supports bi-directional operation. Each direction can be configured independently for controlled access, locked rotation or free rotation to suit the site’s workflow.
Choose the credential technology around the access-control design. The manufacturer lists compatibility with ProID10 RFID readers, FR1500S or third-party fingerprint readers, QR500 QR code reader, and ZKTeco or third-party facial-recognition standalone terminals. Reader and controller selection should be confirmed for the project; a full-height turnstile is part of a complete access-control system, rather than a substitute for its controller, credentials or emergency planning.
Integrated LED indicators provide a red cross for denied passage and a green arrow for authorised passage. The gate supports anti-passback and anti-tailgating functions, while the rotor unlocks automatically in an emergency. A relay fire-alarm port is listed by the manufacturer, so the final fire-interface arrangement should be coordinated with the building’s fire and compliance requirements.
The stainless-steel rotor arms and SUS304 housing have a 240# hairline finish; SUS316 housing and lid material are listed as optional. The unit is supplied pre-assembled for easier installation and needs a flat, level finished floor. An optional base plate is available for unfinished floors. It is specified for indoor and covered-outdoor environments. Although the manufacturer states an IPX4 rating, this does not make it suitable for fully exposed outdoor installation without appropriate weather protection.
Typical applications include construction and infrastructure projects, warehouses, campuses, event perimeters, service yards and other controlled pedestrian entrances where the position of access control may change over time. For a complete solution, pair it with a suitable full-height turnstile, a Saturn-series entrance gate, compatible readers and controllers, plus an installation plan matched to the site’s circulation and evacuation needs.
Saturn-H1300 is a high-security entrance-control product. It should be selected and installed by a qualified access-control professional, with local building, accessibility and fire-safety obligations considered before ordering. Contact NZTeco for project advice, compatible authentication hardware, configuration support and a quote.
| Specification | Saturn-H1300 |
|---|---|
| Lane type | Single lane |
| Lane width | 600mm |
| Overall dimensions (L × W × H) | 1400 × 1190 × 2265mm |
| Rotor | Full-height rotating, 3-blade rotor; 9 arms; 38mm diameter |
| Throughput | Maximum 20–25 people per minute |
| Credential options | ProID10 RFID; FR1500S or third-party fingerprint reader; QR500; compatible ZKTeco and third-party facial-recognition terminals |
| Flow rate by credential | RFID 20/min; fingerprint 15/min; QR code 20/min; facial authentication 15/min |
| Visual indicator | Integrated column LEDs: red cross denied, green arrow allowed |
| Cabinet and lid | SUS304 stainless steel, 240# hairline finish; SUS316 optional |
| Rotor arm material | Stainless steel |
| Controller communication | 1 × fire-alarm relay port |
| Security features | Anti-passback and anti-tailgating |
| Emergency operation | Rotor unlocks automatically during emergencies |
| Power supply | 100–120VAC or 200–240VAC, 50/60Hz |
| Power rating | 40W |
| Noise level | Less than 60dB |
| MCBF | 2 million |
| Net / gross weight | 152kg / 198kg |
| Operating environment | -28°C to 60°C; 0–95% RH, non-condensing; IPX4 |
| Application environment | Indoor and covered outdoor |
| Site preparation | Flat, level finished floor; optional base plate for unfinished floors |
| Delivery | Pre-assembled for easier installation |
| Supported software | zkbio cvsecurity, dependent on the installed access controller |
| Manufacturer-stated warranty | 1 year |
