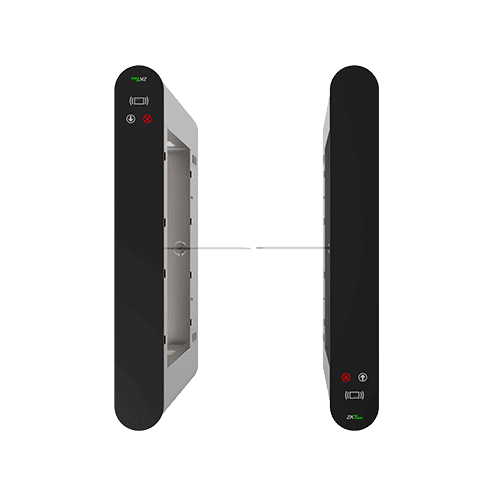

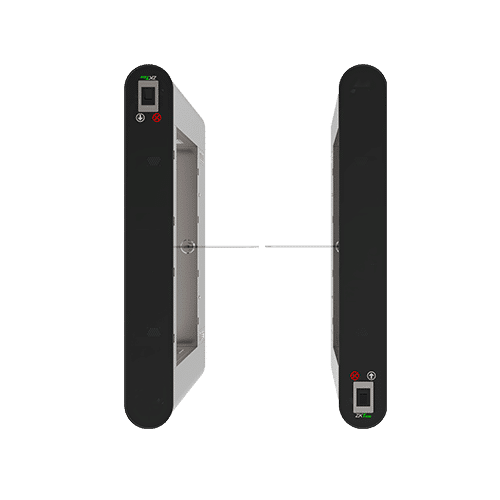

ZKTeco SBTL5000: Single Lane Swing Barrier Turnstile for High-Traffic Volume
ZKTeco SBTL5000
A durable single lane swing barrier turnstile designed for high-traffic areas. Equipped with RFID and/or fingerprint recognition technology, the SBTL5000 offers secure access control to the desired side. Its swing barrier movement allows for efficient throughput of up to 30 people per minute with RFID, and 25 people per minute with fingerprint.
The SBTL5000 has several parameters including power requirements of AC 100 to 120V/200 to 240V at 50/60Hz, working temperature range of -28°C to 60°C, working humidity range of 20% to 95%, speed of throughput with RFID at maximum 30/minute and fingerprint at maximum 25/minute.
Features
- Supports RFID and fingerprint authentication
- Maximum throughput of 30 people per minute with RFID
- Maximum throughput of 25 people per minute with fingerprint
- Made of stainless steel
- Smooth and silent operation
Product Details
The ZKTeco SBTL5000 is a single lane swing barrier turnstile series designed for smooth and silent operation and draws very little power. It’s made of stainless steel which makes SBTL5000 highly durable. The SBTL5000 is an elegant cost-effective entrance control system designed for high-traffic volume.
The turnstile has swing barriers made of tempered glass (optional: acrylic), LED indicators, and emergency mode support. It has several parameters including power requirements of AC 100 to 120V/200 to 240V at 50/60Hz, working temperature range of -28°C to 60°C, working humidity range of 20% to 95%, speed of throughput with RFID at maximum 30/minute and fingerprint at maximum 25/minute, lane width of 650mm (optional ≤850mm), footprint of 1400mm by 1010mm, dimensions of 1400mm by 180mm by 1000mm, net weight of 120kg, weight with packing of 150kg, LED indicator support, SUS304 stainless steel cabinet material and lid material, tempered glass barrier material (optional: acrylic), barrier movement swing, emergency mode support.
Specifications
| Feature | Specification |
|---|---|
| Power Requirements | AC 100-120V/200-240V, 50/60Hz |
| Working Temperature | -28°C to 60°C |
| Working Humidity | 20%-95% (Non-condensing) |
| Speed of Throughput | RFID: Maximum 30/minute Fingerprint: Maximum 25/minute |
| Lane Width (mm) | 650mm (optional ≤ 850mm) |
| Footprint (mm*mm) | 1400*1010 |
| Dimension (LWH) | 14001801000 (mm) |
| Dimension with Packing (LWH) | 15002601100 (mm) |
| Net Weight (kg) | 120 kg |
| Weight with Packing (kg) | 150 kg |
| Cabinet Material | SUS304 Stainless Steel |
| Lid Material | Tempered Glass |
| Barrier Material | Tempered Glass (optional: acrylic) |
| Barrier Movement | Swing |
| Emergency Mode | Support |
| Security Level | Medium |
| Warranty | 1 year |
