ZKDigimax DG03-A5W AI Wall-Mounted Digital Signage

Description

Make digital-signage decisions with more than intuition. The ZKDigimax DG03-A5W AI Wall-Mounted Digital Signage series combines a Full HD wall display with a built-in 5 MP AI camera and ScreenDirect demographic analytics. It is designed for organisations that want to present branded content while understanding broad audience patterns that can inform content timing, placement and campaign planning.

The range includes the DG03-A5W43 and DG03-A5W55 models, providing 43-inch and 55-inch display options for indoor public-facing locations. Potential applications shown by ZKDigimax include food halls and malls, exhibitions, cosmetic stores and transit hubs. These sizes also suit retail sales floors, reception spaces, hospitality venues, waiting areas, service centres and other locations where wall-mounted content needs to be both visible and purposeful.

Audience insight through ScreenDirect

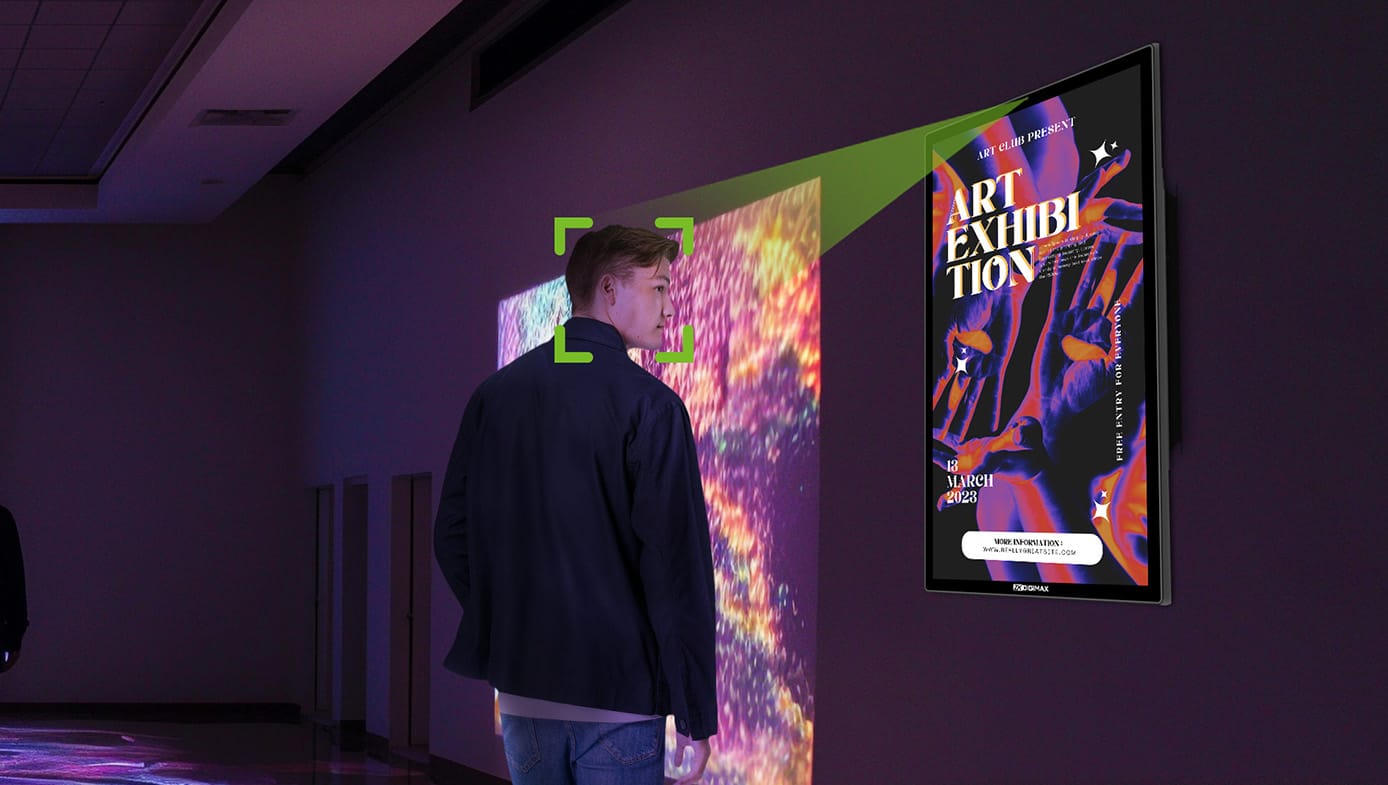

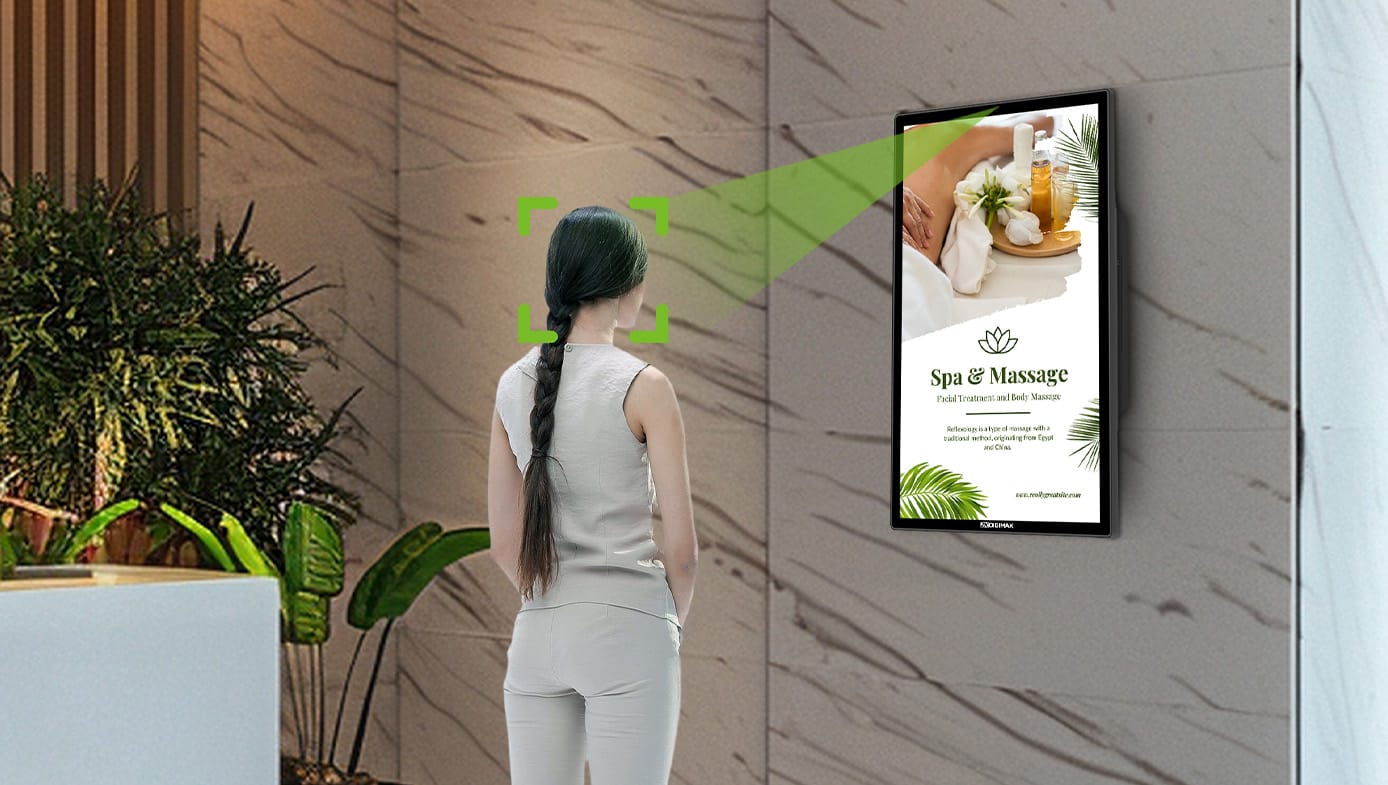

The built-in AI camera analyses visitor demographics in real time and presents analytics through the ScreenDirect dashboard. The official material illustrates age-range and gender distribution, ad-view trends and entry-flow information. These insights can help a content team understand which content is viewed, when audience patterns change, and how campaign timing or placement may be refined across a compatible signage deployment.

Camera-enabled analytics need careful deployment. Define the intended analytics purpose, configure access and retention controls, and confirm the appropriate privacy, notice and organisational requirements for each installation before the feature is used. NZTeco can help scope the signage, ScreenDirect workflow and project requirements, while the organisation deploying the display remains responsible for its site policies and information-handling obligations.

Full HD wall signage for commercial environments

Both models use ELED backlighting with 1920 x 1080 resolution, 16:9 aspect ratio, a 1200:1 contrast ratio and 300 cd/m² typical brightness. The 178-degree horizontal and vertical viewing angles support an effective presentation from common approach angles, while the stated display life is more than 30,000 hours. Stereo speakers rated at 5 W x 2 provide local audio where it is suitable for the venue and the content plan.

The system runs Android 12.0 on a CPU described by the official brochure as quad-core Cortex-A76 plus quad-core Cortex-A55 at 2.4 GHz, with 4 GB RAM and 64 GB ROM. Connectivity includes RJ45, USB 2.0, USB 3.0, HDMI out, Type-C and an earphone connection. A 2.4 GHz Wi-Fi option is listed alongside wired LAN, allowing the final network approach to be selected around the site and IT environment.

Choose the appropriate size and installation

The DG03-A5W43 is listed at 1004.7 x 592.8 x 56.3 mm and 16 kg net weight; the DG03-A5W55 is 1275.5 x 747.1 x 56.3 mm and 30 kg. Rated consumption is 50 W for the 43-inch model and 90 W for the 55-inch model, with standby consumption below 4 W. Both are specified for an indoor operating temperature of 0°C to 50°C and 20% to 80% operating humidity.

Specify the display around wall structure, viewing distance, power provision, content workflow, network controls and service access. Explore the ZKDigimax digital-signage range, compare a standard DG03-A1W wall display, or consider the portable DG03-A2F43 for moveable promotions. Contact NZTeco for a project-specific recommendation and quote.
