32–55-inch commercial digital signage displays for 24/7 indoor use, with 500-nit anti-glare panels, Android 9, landscape or portrait installation, 4K options and ScreenDirect CMS compatibility.
Keep commercial messaging clear and compelling across every indoor location with the ZKDigimax DG03-A1W Series. Available in 32, 43, 50 and 55-inch formats, these professional Android digital signage displays are designed for continuous 24/7 operation in retail, hospitality, corporate, education and public-facing environments. A bright 500-nit panel with an anti-glare surface helps promotional, directional and operational content remain easy to view under typical indoor lighting.

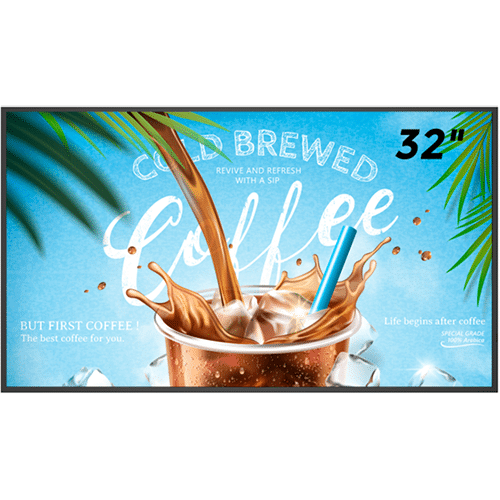

Select the display size and resolution that suit the installation: DG03-A1W32 provides Full HD resolution, while the 43, 50 and 55-inch models provide 4K UHD resolution in landscape use. All models support both landscape and portrait installation, allowing one signage platform to serve menu boards, wayfinding, reception messaging, campaign displays and information screens.
The DG03-A1W Series uses a narrow, even bezel and a black aluminium frame for a neat, professional presentation. Its 50,000-hour panel life, minimum 30,000-hour MTBF and 24/7 duty rating make it a practical choice for scheduled daily communications and continuous commercial display applications. Cable-chain routing helps keep the rear of the installation tidy, while VESA-compatible mounting supports a secure wall-mounted setup.
With Android 9 AOSP, a quad-core ARM Cortex-A53 processor, 2 GB memory and 16 GB eMMC storage, the display provides a self-contained platform for deployed signage content. Two HDMI inputs, AV input, USB, microSD, LAN, Wi-Fi, Bluetooth, RS232 and stereo audio output provide flexible connectivity for local sources, installed networks and managed integrations. Built-in speakers deliver 10 W × 2 audio where required.
Use BOE Cast for wireless screen casting over the built-in Wi-Fi connection, or distribute and update content remotely with OTA capability. The DG03-A1W Series is also compatible with ZKDigimax ScreenDirect CMS, giving organisations a practical workflow for scheduling and managing messaging across one or more displays. For multi-screen visual installations, the integrated VDW mode supports video-wall configurations of up to 5 × 5 displays.
For a wider deployment, explore our ZKDigimax digital signage range, compare portable presentation options such as the DG03-A2F43 portable digital signage display, or consider the DG03-A1D24 desktop signage display for counter and desktop communications.
Whether the screen is specified for a café menu, retail campaign, visitor information point or staff communications, the DG03-A1W Series is built to simplify a professional installation. A clean cable-chain design helps route connections neatly, while the black aluminium frame and narrow, even bezel give the display a polished look in customer-facing spaces. The units support default power-on settings for predictable recovery after a scheduled power cycle, and USB cloning assists technicians when applying the same configuration across multiple compatible screens.
Its 500-nit, anti-glare display surface is suited to brightly lit indoor sites; final screen selection should take into account ambient light, viewing distance, mounting height and required content orientation. Networked signage deployments can use LAN or Wi-Fi, while HDMI and AV inputs provide straightforward connectivity for local media players and other sources. If your project needs multiple screens, NZTeco can help plan the display format, content workflow, physical mounting and commissioning requirements.
Talk with NZTeco about the right screen size, mounting orientation, content-management setup and installation approach for your site. Contact our team for a commercial signage quote.
| Series / models | DG03-A1W32, DG03-A1W43, DG03-A1W50, DG03-A1W55 |
|---|---|
| Display sizes | 32 in, 43 in, 50 in, 55 in |
| Panel type | ADS (32/43/55 in); VA (50 in) |
| Resolution | 32 in: 1920 × 1080 (Full HD); 43/50/55 in: 3840 × 2160 (4K UHD, landscape) |
| Aspect ratio | 16:9 |
| Brightness | 500 cd/m² (typical) |
| Backlight | Direct LED |
| Static contrast ratio | 32 in: 1200:1; 43 in: 1200:1; 50 in: 500:1; 55 in: 1200:1 |
| Response time | 8 ms |
| Viewing angle | 178° horizontal / 178° vertical |
| Colour | 32 in: 16.7 M (8-bit); 43/50/55 in: 1.07 B (8-bit + FRC) |
| Colour gamut | NTSC 72% (typical, CIE1931) |
| Surface treatment | 32/43/55 in: haze 25%, 3H; 50 in: haze 1%, 3H |
| Operating orientation | Landscape or portrait |
| Duty cycle | 24/7 continuous operation |
| Panel life | 50,000 hours |
| MTBF | Minimum 30,000 hours |
| Operating system | Android 9 AOSP |
| CPU | ARM quad-core Cortex-A53, up to 1.5 GHz |
| GPU | ARM Mali-G52 2EE MC1 |
| Memory / storage | 2 GB DDR3 / 16 GB eMMC |
| HDMI input | 2 × HDMI (HDMI 1.0; HDCP 2.2/1.4) |
| Other inputs | 1 × AV (3-in-1), 2 × USB 2.0 Type-A, microSD |
| Control and networking | RS232 (DB9), RJ45 LAN, 2.4 GHz 802.11 b/g/n Wi-Fi, Bluetooth 4.2 |
| Audio | 10 W × 2 speakers, 6 Ω; 3.5 mm stereo audio output |
| Power input | AC 100–240 V, 50/60 Hz |
| Maximum power consumption | 32 in: ≤95 W; 43 in: ≤170 W; 50 in: ≤230 W; 55 in: ≤250 W |
| Standby consumption | <0.5 W |
| Housing | Black aluminium frame; black SGCC rear cover |
| VESA mounting | Supported with fixed support bracket |
| Operating conditions | 0–40 °C; 20–80% RH, non-condensing |
| Storage conditions | −10–60 °C; 20–80% RH, non-condensing |
| Video-wall mode | Built-in VDW, up to 5 × 5 |
| Wireless and remote functions | BOE Cast wireless screen casting; OTA content updates |
