IP65 weather-resistant outdoor standing signage in 43 and 55-inch formats, with 2,500 cd/m² typical brightness, Android 11 and ScreenDirect CMS compatibility.
ZKDigimax DG03-B1F outdoor standing signage is designed for organisations that need clear, dependable digital communication in outdoor-facing and public-access environments. Available as the 43-inch DG03-B1F43 and 55-inch DG03-B1F55, the freestanding series combines a portrait-format commercial display with an IP65 weather-resistant enclosure and 2,500 cd/m² typical brightness. It is a practical choice for branded promotions, visitor information, wayfinding and service messages where daylight, moisture and changing conditions need to be considered from the outset.
The display delivers Full HD 1920 × 1080 resolution, a 16:9 aspect ratio, 16.7 million colours and 178° horizontal and vertical viewing angles. Its 4,000:1 dynamic contrast specification and high typical brightness help on-screen content remain legible in bright ambient conditions. The system uses Android 11 with a quad-core Cortex-A55 2.0 GHz processor, RK3568 chipset, 2 GB RAM and 16 GB ROM, providing an integrated commercial signage platform for day-to-day content playback.

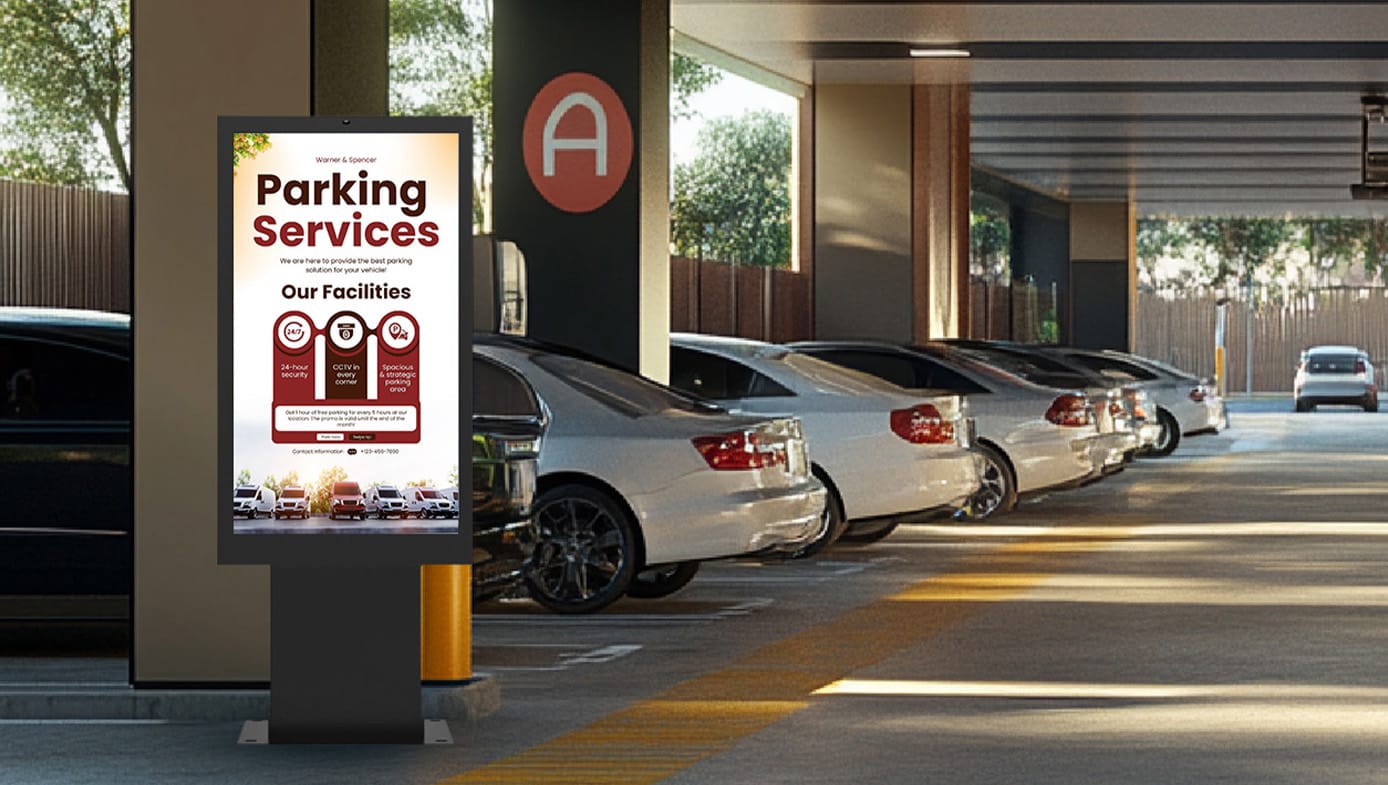

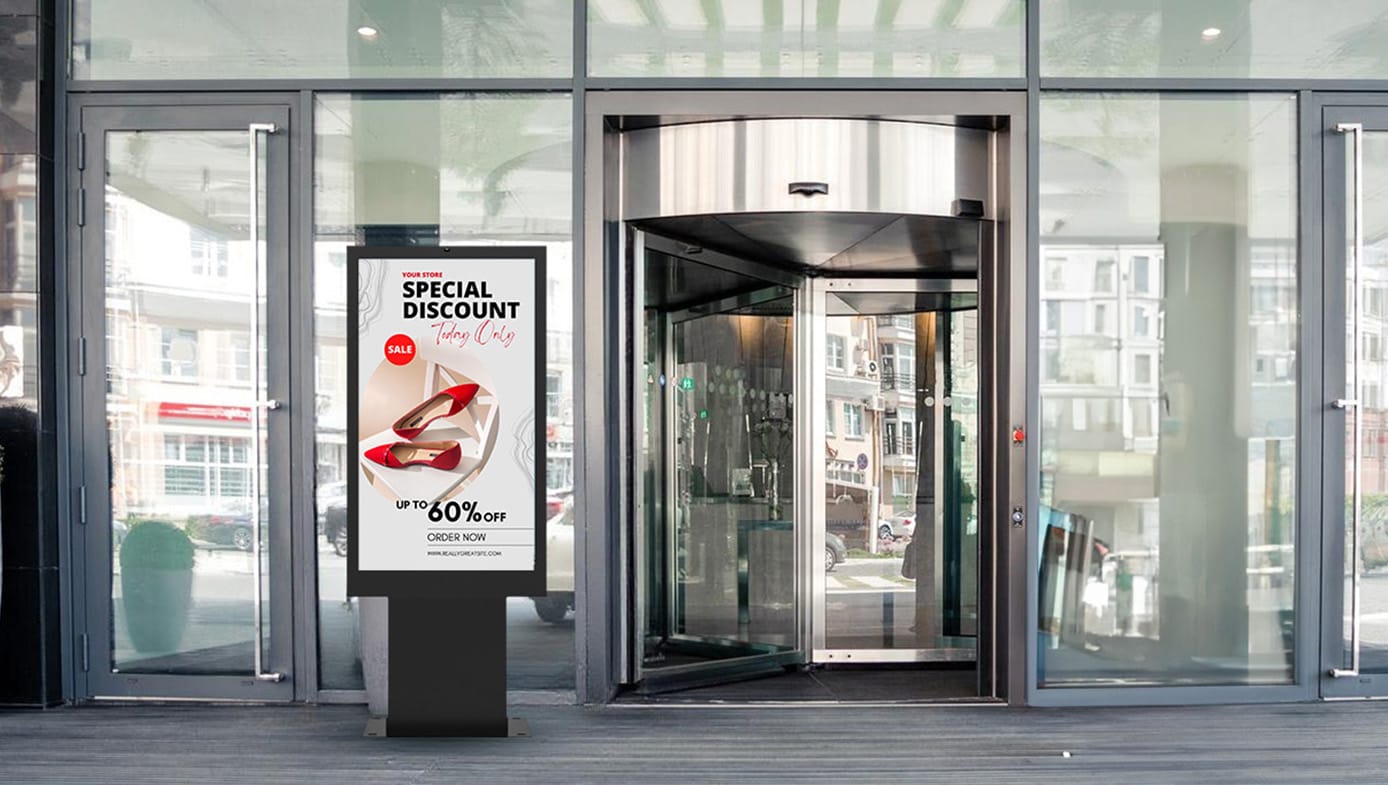

The DG03-B1F series carries an IP65 weather-resistance rating and is designed for outdoor applications including restaurant frontages, station and bus-stop environments, public spaces, mall entrances and parking facilities. This rating supports protection against dust and water exposure within the manufacturer’s design parameters; it does not remove the need for a site-specific assessment of mounting, drainage, power protection, local regulations and service access. NZTeco can help plan a suitable installation approach before ordering.
The 43-inch DG03-B1F43 measures 1800 × 690 × 300 mm, while the 55-inch DG03-B1F55 measures 2000 × 830 × 400 mm. The stated operating range is -10°C to 50°C with 5% to 90% relative humidity, non-condensing. These model dimensions and environmental limits should be reviewed against the selected location, pedestrian circulation, visibility requirements and installer access.
Choose the screen size only after reviewing the available footprint, content scale and typical viewing distance. The 43-inch and 55-inch models share the same high-brightness display platform, while their cabinet dimensions and maximum power consumption differ. Treat the display, its foundation or mounting arrangement, power route, network connection and planned maintenance access as one project. A clear installation plan helps protect the intended IP65 performance and gives the content team a more reliable way to keep public information and promotional campaigns current.
The series is compatible with ZKDigimax ScreenDirect CMS, enabling authorised teams to organise, schedule and update signage content from a central content-management workflow. This gives operators a practical way to keep campaigns, service notices and venue information current without treating the screen as a standalone poster. The hardware also supports Wi-Fi and RJ45 LAN connectivity, alongside USB 3.0, USB OTG, TF card, HDMI output and earphone connections for the wider installation design.
Content teams can work with common video formats including WMV, AVI, FLV, RM, RMVB, MPEG, TS and MP4, plus MP3, WMA, MP2 and WAV audio, and BMP, JPEG, PNG and GIF images. The brochure lists a maximum consumption of 300 W for the 43-inch model and 400 W for the 55-inch model, so the final electrical plan should be sized for the exact model and project configuration.
For related commercial display options, browse our ZKDigimax digital signage range. If you are selecting between the DG03-B1F43 and DG03-B1F55, or need guidance on outdoor placement, ScreenDirect CMS and a compliant installation plan, contact NZTeco for a practical recommendation and quotation.
| Specification | DG03-B1F43 | DG03-B1F55 |
|---|---|---|
| Screen size | 43-inch | 55-inch |
| Operating system | Android 11.0 | |
| CPU | Quad-core Cortex-A55, 2.0 GHz | |
| Chipset | RK3568 | |
| Memory | 2 GB RAM | |
| Storage | 16 GB ROM | |
| Ingress protection | IP65 weather-resistant | |
| Aspect ratio | 16:9 | |
| Display colours | 8-bit (16.7M) | |
| Resolution | 1920 × 1080 | |
| Contrast | 4000:1 (dynamic) | |
| Viewing angle | 178° (H) / 178° (V) | |
| Brightness | 2500 cd/m² (typ.) | |
| Speaker | 8 Ω, 10 W | |
| Interfaces | 1 × RJ45, 1 × earphone, 1 × USB 3.0, 1 × USB OTG, 1 × HDMI Out, 1 × TF card | |
| Video formats | WMV, AVI, FLV, RM, RMVB, MPEG, TS, MP4 | |
| Audio formats | MP3, WMA, MP2, WAV | |
| Image formats | BMP, JPEG, PNG, GIF | |
| Wi-Fi | Support | |
| LAN | RJ45 | |
| Power input | AC 100–240 V, 50/60 Hz | |
| Maximum consumption | 300 W | 400 W |
| Product dimensions (L × H × W) | 1800 × 690 × 300 mm | 2000 × 830 × 400 mm |
| Operating temperature | -10°C to 50°C | |
| Storage temperature | -20°C to 60°C | |
| Operating humidity | 5% to 90% RH (non-condensing) | |
| Storage humidity | 5% to 100% RH (non-condensing) | |
