Design-led 32 and 43 inch Full HD picture frame signage with imitation wood-grain styling, ScreenDirect CMS compatibility and flexible indoor wall mounting.
ZKDigimax DG03-A8W picture frame signage gives design-conscious venues a practical way to communicate, promote and display digital artwork without introducing the look of a conventional commercial screen. The DG03-A8W Series combines a slim, imitation wood-grain frame with Full HD visual performance, so wall-mounted content can sit comfortably in galleries, offices, libraries, hospitality spaces and premium retail interiors.

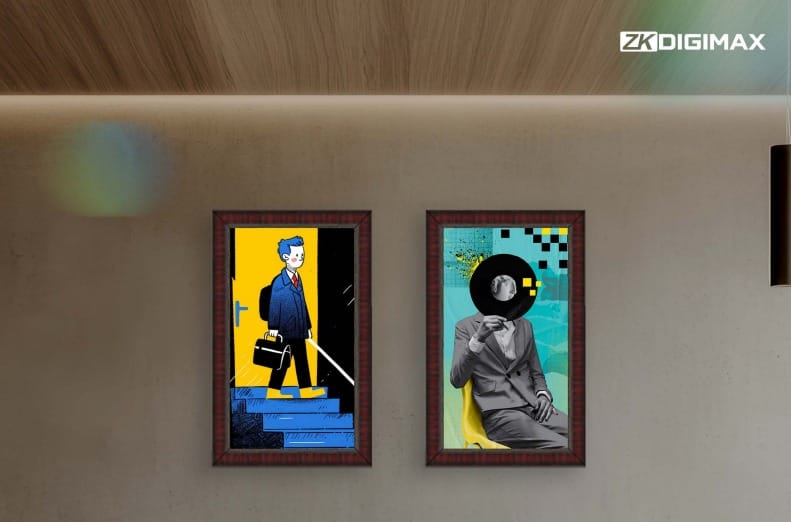

Its artistic frame styling gives this commercial signage display the appearance of a contemporary picture frame when it is presenting artwork, branded visuals or scheduled notices. This makes it especially useful where the presentation of the screen matters as much as the message on it. The display is designed for wall mounting, helping teams place communications at the right viewing height while keeping the installation tidy and unobtrusive.
The series covers two practical Full HD models: the 32-inch DG03-A8W32 and the 43-inch DG03-A8W43. Both use a 16:9, 1920 × 1080 LED LCD panel with 300 cd/m² typical brightness, a 1000:1 contrast ratio and 178° horizontal and vertical viewing angles. These specifications support clear, balanced presentation for indoor audiences viewing information from different positions in a room.
The Full HD panel, 60 Hz refresh frequency and 8 ms response time support smooth, legible presentation of everyday commercial content. With 16.7 million colours, 300 cd/m² typical brightness and a 1000:1 contrast ratio, the DG03-A8W Series is a considered choice for visual messaging that needs to remain clear without overwhelming the surrounding interior. Its E-LED backlight and more than 30,000-hour panel life support long-term deployment planning for managed signage installations.
DG03-A8W Picture Frame Signage is compatible with ScreenDirect CMS, enabling teams to organise multimedia content and schedule screen updates from a central platform. It is well suited to rotating promotional material, wayfinding messages, notices, menus, event communications and digital artwork across one display or a coordinated signage deployment. Android 10.0, 1 GB RAM and 16 GB storage provide the embedded platform for content playback, while 4K 60 fps H.265, H.264 and VP9 video decoding supports modern media files.
The display provides two HDMI inputs, two USB 2.0 ports, an RJ45 network connection, TF card slot and earphone output. Wi-Fi 2.4 GHz, Bluetooth and wired LAN connectivity give installers flexible options for local media, networked content management and connection to external AV sources. Dual 5 W speakers are built in for applications where accompanying audio is appropriate; confirm the acoustic requirements of the space during system design.
Use the DG03-A8W32 for compact wall areas, corridors, meeting spaces and intimate customer-facing zones. Select the larger DG03-A8W43 where the screen needs greater presence in reception areas, galleries, showrooms or wider retail displays. Both models support landscape and portrait orientation, allowing the content layout to follow the wall, message and viewing journey rather than forcing a single format.
For a successful installation, select a mounting solution rated for the chosen display and the wall construction, provide suitable mains and network access, and plan content dimensions for the intended orientation. Browse our ZKDigimax digital signage range for related commercial display options, or contact NZTeco to discuss screen sizing, ScreenDirect CMS and a tailored signage solution.
| Series | DG03-A8W Picture Frame Signage |
|---|---|
| Models | DG03-A8W32; DG03-A8W43 |
| Display sizes | 32 inch; 43 inch |
| Operating system | Android 10.0 |
| CPU | Quad-core Cortex-A53, 1.5 GHz |
| Chipset | H133 |
| RAM | 1 GB |
| Storage | 16 GB ROM |
| Backlight | E-LED |
| Aspect ratio | 16:9 |
| Resolution | 1920 × 1080 |
| Brightness | 300 cd/m² (typ.) |
| Contrast ratio | 1000:1 |
| Response time | 8 ms |
| Refresh frequency | 60 Hz |
| Viewing angle | 178° horizontal / 178° vertical |
| Colour depth | 16.7 million colours |
| Panel life | More than 30,000 hours |
| Built-in speakers | 2 × 5 W |
| HDMI input | 2 |
| USB | 2 × USB 2.0 |
| Network port | RJ45 × 1 |
| TF card | 1 slot |
| Audio output | Earphone output × 1 |
| Wi-Fi | 2.4 GHz |
| Bluetooth | Supported |
| Video decoding | 4K at 60 fps: H.265, H.264 and VP9 |
| Video encoding | 1080P at 100 fps: H.265 and H.264 |
| Image formats | JPG, BMP, PNG and GIF |
| Audio formats | MP3, WMA, MP2, OGG, AAC, M4A, MA4, FLAC, APE, 3GP and WAV |
| Power input | AC 110–240 V |
| Rated consumption — 32 inch | Less than 50 W |
| Rated consumption — 43 inch | Less than 60 W |
| Product colour | Imitation wood-grain colour |
| Orientation | Landscape or portrait |
| 32-inch product dimensions | 815.6 × 510 × 84.9 mm (L × H × W) |
| 43-inch product dimensions | 1059 × 647.2 × 84.9 mm (L × H × W) |
| 32-inch net weight | 12.5 kg |
| 43-inch net weight | 16 kg |
| Operating temperature | 0–50 °C |
| Storage temperature | -20–60 °C |
| Operating humidity | 20%–85% RH, non-condensing |
| Storage humidity | 20%–85% RH, non-condensing |
