43-inch portable banner signage for retail promotions, menus and customer information. DG03-A2F43 combines Full HD ELED visuals, Android 11, HDMI input, built-in speakers and a portable A-frame format for flexible indoor commercial deployment.

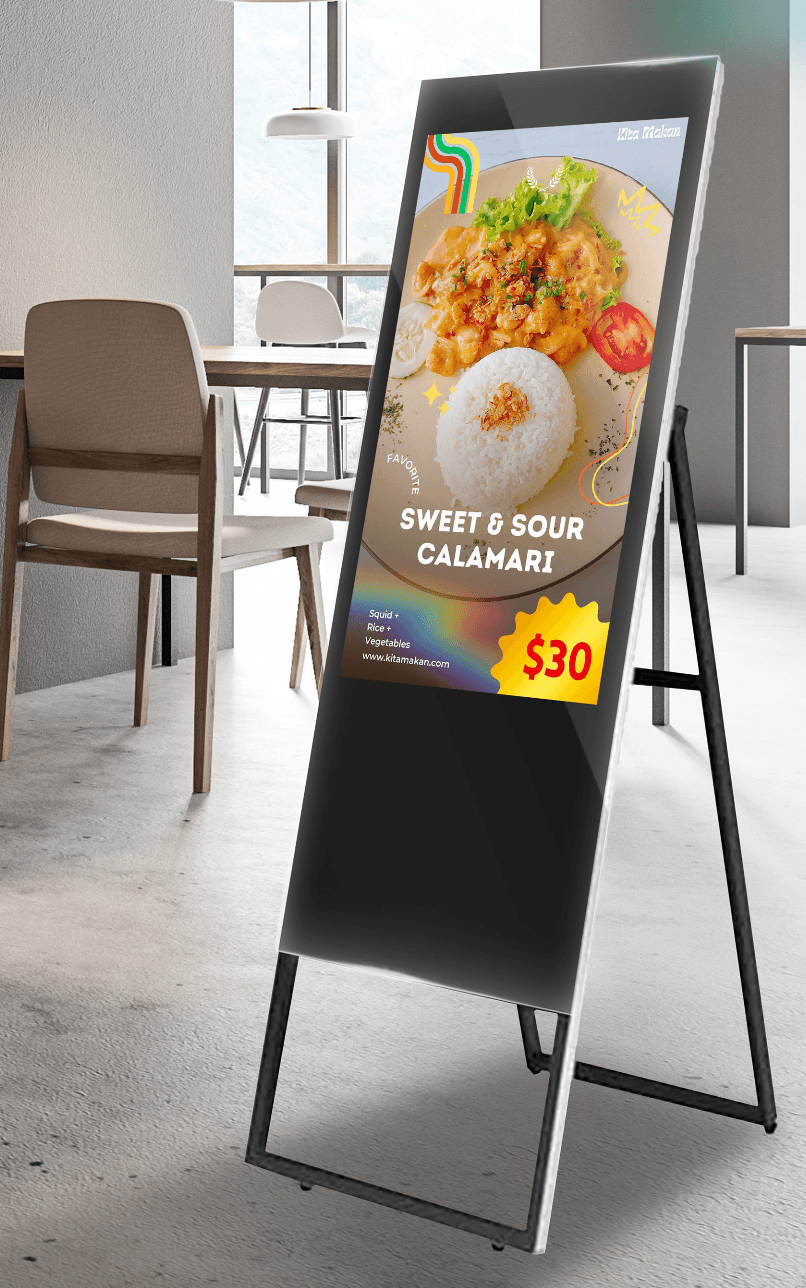

Place changing promotions, menus and customer messages where they will be noticed with the ZKDigimax DG03-A2F43 Portable Banner Signage. This 43-inch freestanding digital display combines a Full HD ELED panel, Android platform and portable A-frame form factor, giving retail, hospitality and service environments a practical alternative to static floor signs and printed promotional material.
Use it near store entrances, restaurant queues, café counters, showroom displays, service areas, seasonal activations or supermarket aisles. The display can present campaign content, daily specials, menu boards, branded messages, product launches and visitor information without being permanently fixed to a wall. Its portrait format and integrated A-frame support make it well suited to locations where a floor sign needs to be visible, stable and straightforward to reposition as the customer journey or promotion changes.
The DG03-A2F43 has a 43-inch Full HD display with 1920 x 1080 resolution, 16:9 aspect ratio, 350 cd/m² typical brightness and a 1200:1 contrast ratio. A 178-degree horizontal and vertical viewing angle helps keep content readable from the usual approaches in an indoor commercial space. ELED backlighting, a 60 Hz refresh rate and 16.7 million display colours support clear campaign graphics, still images, menus and video content.
Position the screen for the actual site lighting, viewing distance and path of travel. The portable design does not make it an outdoor display: the official brochure specifies a 0°C to 40°C operating temperature and 10% to 85% operating humidity, with no IP rating published. Plan a secure indoor position, safe cable route, suitable power outlet and enough circulation space for customers and staff.
The current official product page lists Android 11, a quad-core Cortex-A55 CPU and support for HDMI input and built-in speakers. The brochure specifies an RK3566 chipset, 2 GB RAM, 16 GB ROM, one RJ45 port, one HDMI input, two USB ports, one SD-card slot and one earphone connection. Built-in 8 W x 2 speakers make the display suitable for applications where locally appropriate audio is part of the message.
The DG03-A2F43 also supports common video, audio and image formats, helping project teams select an appropriate content workflow. It is compatible with ZKDigimax ScreenDirect CMS, providing a practical way to organise approved promotions and information across compatible ScreenDirect displays. This is useful for operators who need menu updates, campaign artwork and location messaging to stay consistent across more than one site.
The display accepts AC 100-240 V, 50/60 Hz power and is specified at up to 75 W maximum consumption. The brochure lists a closed product dimension of 1635.45 x 559.7 x 23 mm and includes a power cable and remote controller. Confirm the intended content workflow, available power, floor position, service access, optional wireless requirements and movement plan before ordering.
For a counter-top option, explore the ZKDigimax DG03-A1D24 Desktop Digital Signage Display. For larger wall display requirements, see the ZKDigimax DG03-A1W Series, or browse the ZKDigimax digital-signage range. Contact NZTeco for a site-appropriate portable signage configuration and quote.
| Specification | DG03-A2F43 |
|---|---|
| Model | DG03-A2F43 |
| Product type | Portable banner signage display |
| Display size | 43-inch |
| Operating system | Android 11 (current official product page) |
| CPU | Quad-core Cortex-A55, 1.8 GHz |
| Chipset | RK3566 |
| RAM | 2 GB |
| ROM | 16 GB |
| Backlight | ELED |
| Resolution | 1920 x 1080 |
| Aspect ratio | 16:9 |
| Brightness | 350 cd/m² (typ.) |
| Contrast ratio | 1200:1 |
| Response time | 8 ms |
| Refresh rate | 60 Hz |
| Display colours | 16.7 M |
| Viewing angle | 178° (H) / 178° (V) |
| RJ45 | 1 |
| HDMI input | 1 |
| USB | 2 |
| SD card | 1 |
| Earphone connection | 1 |
| Wireless | Optional Wi-Fi listed in the official brochure |
| Content management | Compatible with ZKDigimax ScreenDirect CMS |
| Speakers | Built-in, 8 W x 2 |
| Supported media | Common video, audio and image formats; see brochure for full codec list |
| Power input | AC 100-240 V, 50/60 Hz |
| Maximum consumption | ≤75 W |
| Operating temperature | 0°C to 40°C |
| Storage temperature | -20°C to 60°C |
| Operating humidity | 10% to 85% |
| Storage humidity | 10% to 90% |
| Closed product dimensions | 1635.45 x 559.7 x 23 mm |
| Package dimensions | 1700 x 660 x 150 mm |
| Included accessories | Power cable and remote controller |
| Source | Official ZKDigimax product page and brochure |
