Create a 360° visual feature with ZKDigimax DG01-A7 LED Cube displays. Choose 320mm or 640mm cube formats for retail, hospitality and creative digital-signage projects.

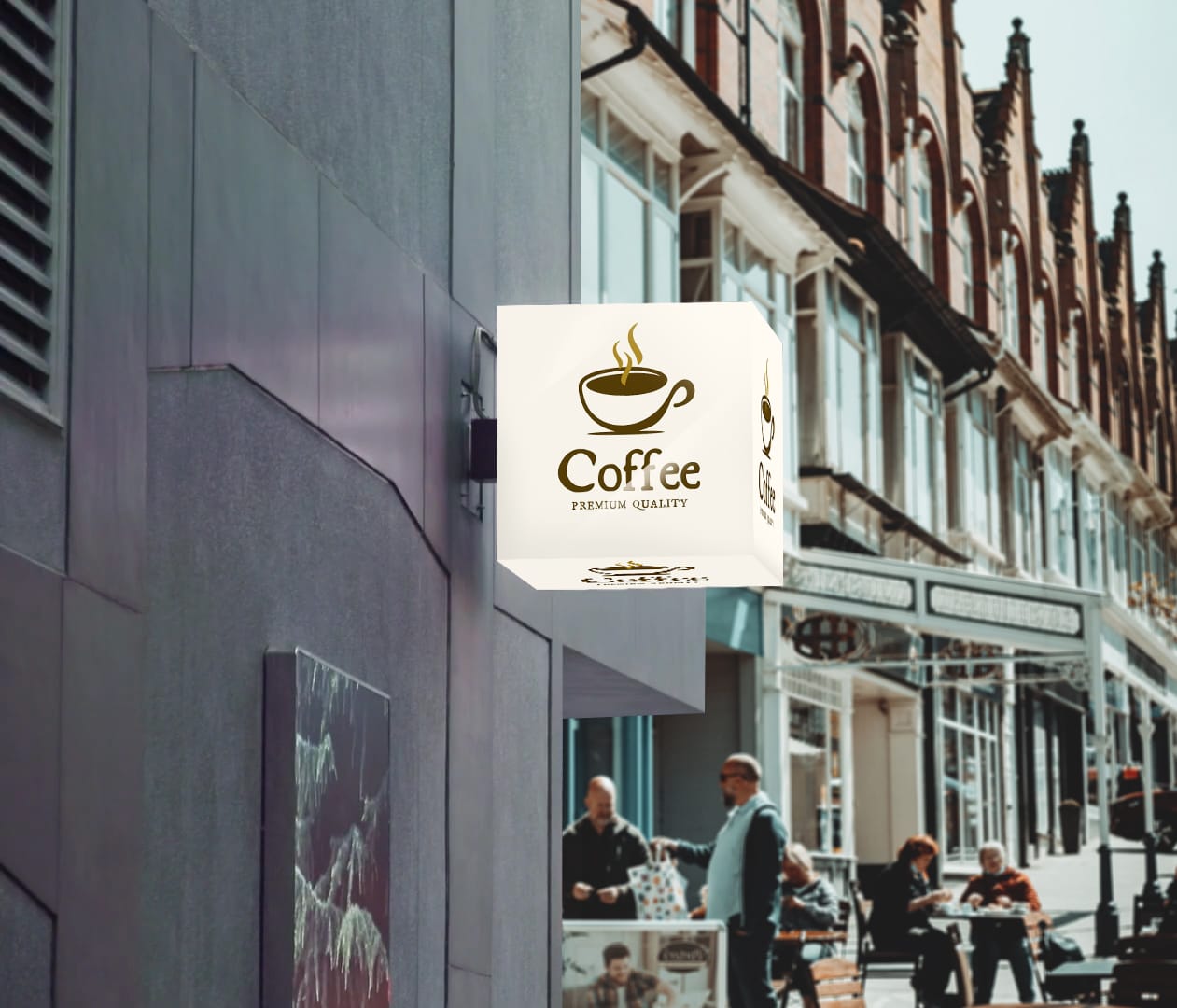

The ZKDigimax DG01-A7 LED Cube is a three-dimensional LED display designed to turn a standard sign position into a striking, multi-sided digital feature. Its cube structure presents programmed content across four or five display faces, giving audiences a 360° view as they move around it. For shopfronts, restaurants, book stores, footwear and clothing retailers, the format creates a far more dimensional visual presence than a conventional flat digital sign.
Available in 320 × 320 × 320mm and 640 × 640 × 640mm formats, the DG01-A7 series gives integrators a practical choice of compact or larger-format LED cube signage. All four variants use a 2.5mm pixel pitch, brightness of at least 800cd/m² and a refresh rate of at least 3840Hz. The brochure specifies both side-hanging and lifting installation options, depending on the selected model, so the display can be planned around the sign location and support arrangement.

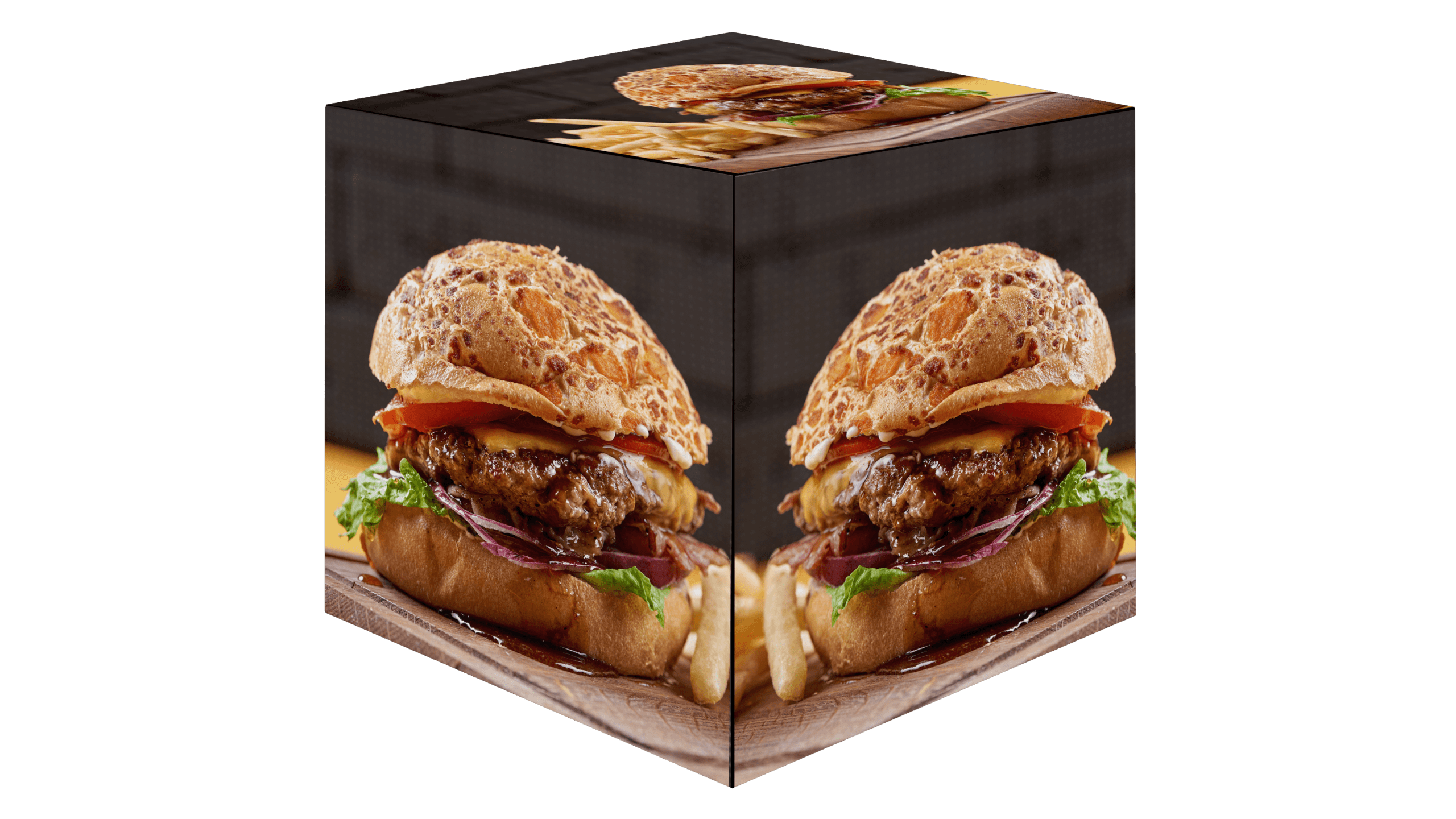

The LED Cube uses a box-style design and seamless splicing between its display surfaces to create a continuous visual object. Rather than asking customers to face one screen, it gives content visibility from multiple directions. This makes it well suited to locations where pedestrians or shoppers approach from different angles, including retail frontages, hospitality venues, exhibitions, museums and entertainment spaces.
For digital-signage projects, the cube is particularly effective when content is designed for the format: brand graphics, menus, promotions, wayfinding messages and motion visuals can be presented across the available faces. The 320mm range delivers 128 × 128 pixels on each display face, while the 640mm range provides 256 × 256 pixels per face. NZTeco can help you select the appropriate model and discuss content, mounting and electrical requirements for the intended installation.
The side-hanging DG01-A7P25A32 and DG01-A7P25A64 models use four display faces. The lifting DG01-A7P25C32 and DG01-A7P25C64 models use five display faces. Average power consumption ranges from 110W for the DG01-A7P25A32 to 460W for the DG01-A7P25C64, while the brochure lists a 100,000-hour lifespan for every model. See our ZKDigimax LED display range, explore the ZKDigimax brand, or contact NZTeco to discuss a project-specific enquiry.
Every DG01-A7 model is specified with brightness of at least 800cd/m² and a refresh rate of at least 3840Hz. The 320mm side-hanging DG01-A7P25A32 averages 110W and weighs 11kg, while the lifting DG01-A7P25C32 averages 115W and weighs 13kg. In the 640mm range, the side-hanging DG01-A7P25A64 averages 370W and weighs 28kg; the lifting DG01-A7P25C64 averages 460W and weighs 30kg. These details make it easier to compare the available formats with the intended sign position and installation approach.
All four models are listed with a 100,000-hour lifespan in the official brochure. The series is also described as low power consumption and easy to install. Because the display is a multi-sided installation, the final selection should consider the available support structure, sightlines and the display-face configuration that best suits the planned content.
The DG01-A7 LED Cube is supplied on an enquiry basis so the selected cube size, display-face configuration, installation method and content requirements can be matched to the site. Review the brochure for the full technical specification, then contact NZTeco for availability and an installation-focused recommendation.
| Specification | DG01-A7P25A32 | DG01-A7P25C32 | DG01-A7P25A64 | DG01-A7P25C64 |
|---|---|---|---|---|
| Pixel pitch | 2.5mm | 2.5mm | 2.5mm | 2.5mm |
| Screen size | 320 × 320 × 320mm | 320 × 320 × 320mm | 640 × 640 × 640mm | 640 × 640 × 640mm |
| Resolution (W × H) | 128 × 128 × 4 sides | 128 × 128 × 5 sides | 256 × 256 × 4 sides | 256 × 256 × 5 sides |
| Brightness | ≥800cd/m² | ≥800cd/m² | ≥800cd/m² | ≥800cd/m² |
| Average power consumption | 110W | 115W | 370W | 460W |
| Refresh rate | ≥3840Hz | ≥3840Hz | ≥3840Hz | ≥3840Hz |
| Installation | Side hanging | Lifting | Side hanging | Lifting |
| Weight | 11kg | 13kg | 28kg | 30kg |
| Lifespan | 100,000 hours | 100,000 hours | 100,000 hours | 100,000 hours |
