ZKDigimax DG03-A7T Transparent Box Display

Description

Transparent digital display for premium retail presentation

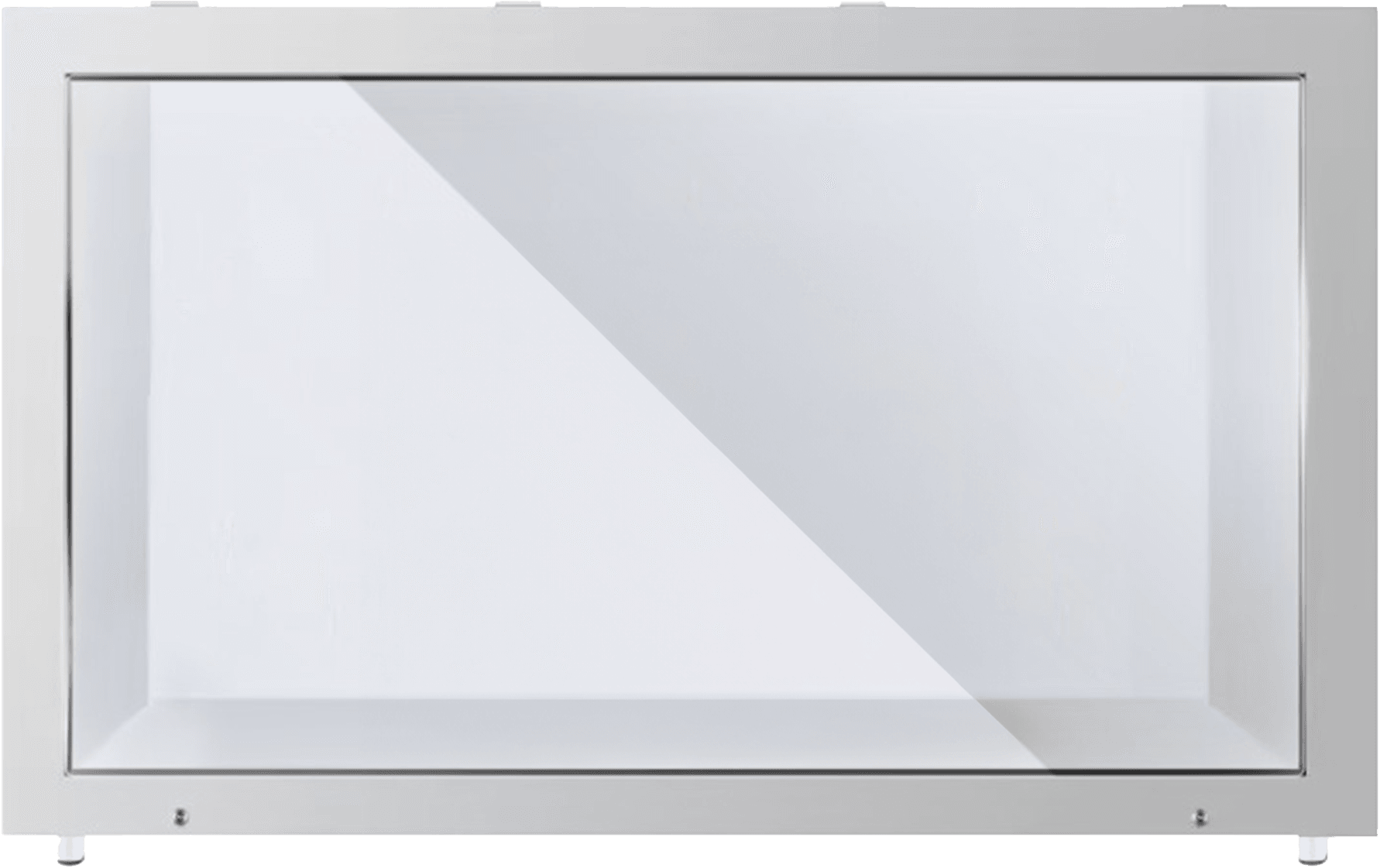

The ZKDigimax DG03-A7T Transparent Box Display combines a transparent display surface with a protective tempered-glass front and a clean metallic enclosure. It is designed for projects where digital content needs to stand out while the surrounding retail or exhibition environment remains part of the experience. The result is a refined display format for product launches, in-store campaigns, collections and visitor information.

Available in 22-inch, 32-inch and 43-inch versions, the DG03-A7T range provides a practical choice of screen size without changing the product concept. Each model uses a 1,920 × 1,080 display, supports touch, and presents images, audio and video content. The automatic colour and image-enhancement engine is designed to produce detailed, vivid visuals for commercial content.

Choose the right transparent display size

DG03-A7T22 is the 22-inch model, with 250 cd/m² typical brightness and 1,000:1 contrast. DG03-A7T32 and DG03-A7T43 are 32-inch and 43-inch options respectively, each with 350 cd/m² typical brightness; their listed contrast ratios are 1,200:1 and 4,000:1. All models offer a 178° horizontal and vertical viewing angle, 60 Hz frequency and 8-bit display colour (16.7 million colours).

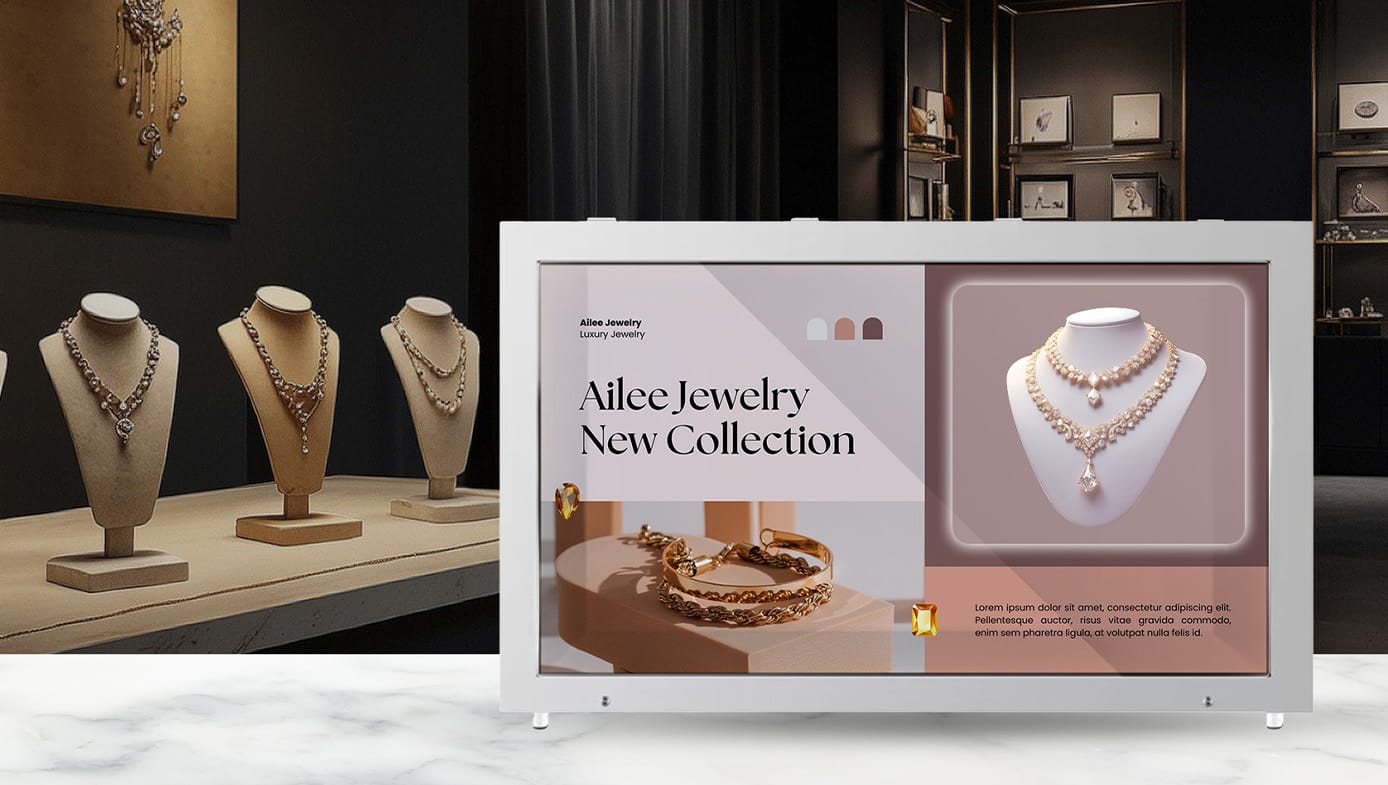

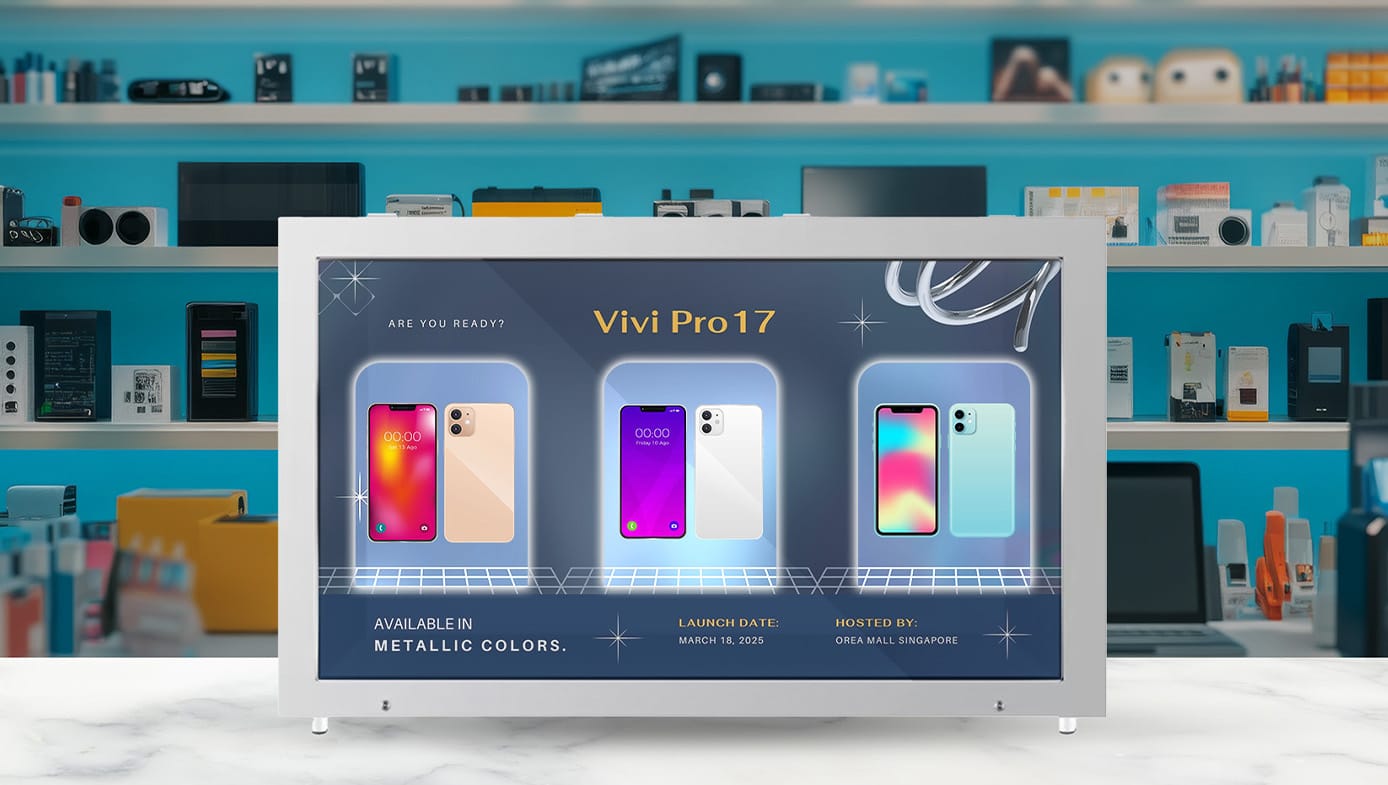

For close-up retail communication, the smaller model suits compact counters and display areas. The 32-inch option gives more room for campaign content, while the 43-inch model is intended for larger feature displays. The brochure illustrates electronic, jewellery and clothing stores as well as museum applications, so the range can support a considered digital layer within a customer-facing space.

Content, touch and connectivity

The built-in Android 7.1 mainboard is specified with a quad-core Cortex-A7 1.5 GHz CPU, 2 GB RAM and 32 GB ROM. Each model includes Wi-Fi support, RJ45 LAN, two USB ports, one HDMI OUT port, a TF-card slot and an earphone connection. Supported video formats are listed as MP4, AVI, DIVE, XVID, VOB, DAT, MPG and RM; audio formats include MP3, WMA and OGG; image formats include JPG, MMP, GIF and PNG.

Touch support gives project teams the option to consider interactive content as part of the customer journey. Content design, interaction flow, installation position and network requirements should be planned for the individual project. This helps ensure the display complements the physical products and provides a clear experience for visitors.

Design content for the transparent format

Transparent displays work best when the content and physical setting are considered together. Use the full-HD screen area to present a clear campaign message, product information or visual story, while leaving enough visual space for the surrounding merchandise or exhibition. The automatic colour and image-enhancement engine is designed to keep detailed content vivid, but the final result will also depend on the artwork, lighting and viewing position in the installation.

Before deployment, confirm how the display will be loaded with media, whether touch interaction is required, and how staff or visitors will access the screen. A concise content plan helps ensure that the transparent box remains a useful retail or visitor-engagement asset rather than simply another screen in the room.

Plan the display around the space

The transparent box has a white finish and operates from AC 100–240 V at 50/60 Hz. Its full-HD format, tempered-glass protection and metallic appearance make it well suited to an indoor customer-facing installation, subject to site assessment. Discuss viewing position, content, access, power and mounting requirements with NZTeco before ordering so the selected model suits the intended environment.

Explore our ZKDigimax LED display range or view the ZKDigimax brand range for related solutions. To request a DG03-A7T quote and discuss screen size, content requirements and installation context, contact NZTeco.
