ZKDigimax DG01-A6 LED Poster Cabinet Digital Signage Display

Description

The ZKDigimax DG01-A6 LED Poster Cabinet gives retailers, hospitality venues and public-facing businesses a freestanding digital signage display for promotions, menus, product launches and brand messaging. Its portrait LED format helps turn unused floor space into a clear visual communication point, allowing video and photo content to be shown where customers are already browsing, queuing or making a purchase decision.

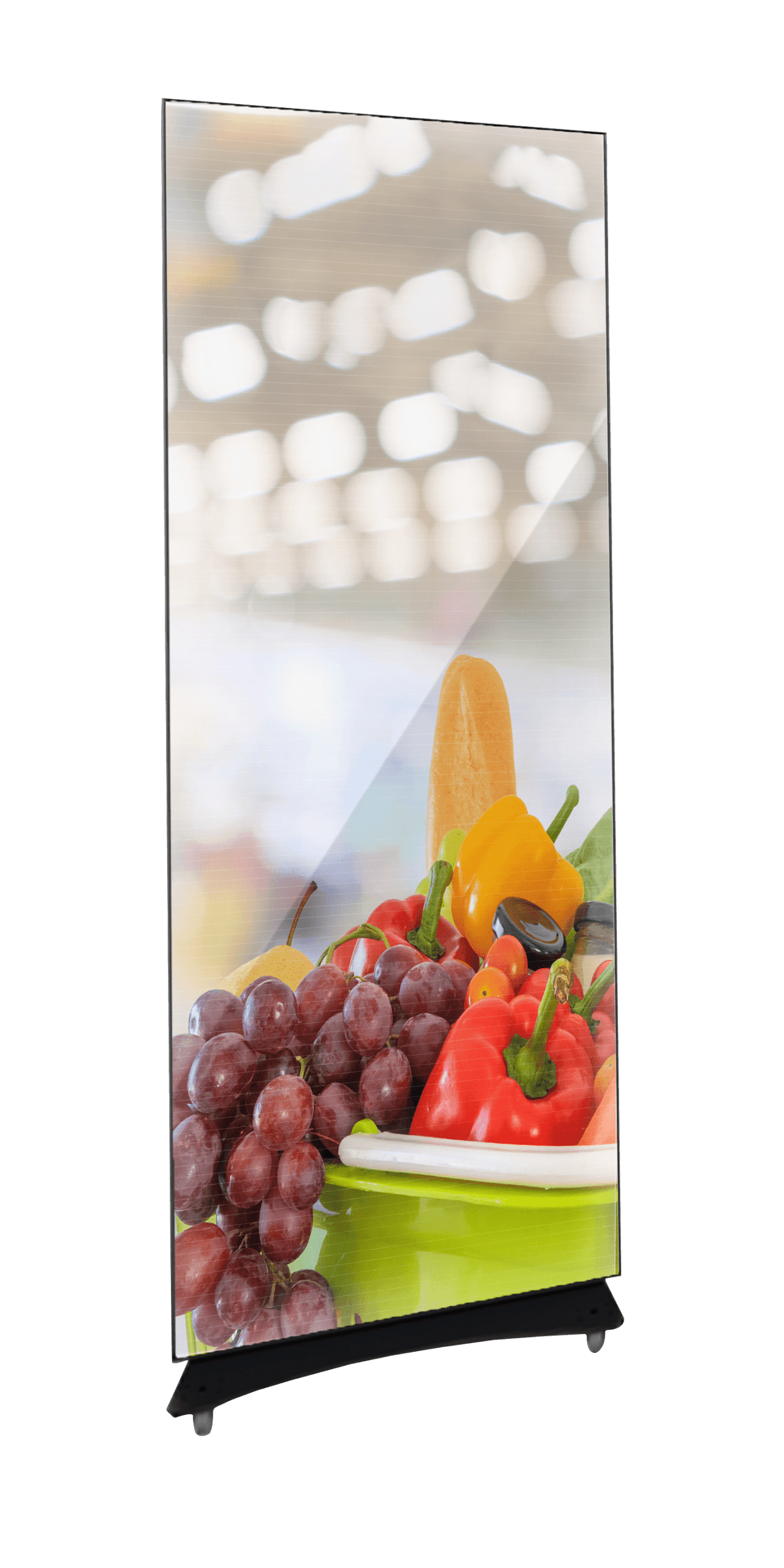

Built as a portable, steel-framed LED poster screen, the DG01-A6 is suited to projects that need a display which can be positioned to support changing campaigns rather than fixed permanently in one wall location. It supports media playback from USB disk or Wi-Fi, giving staff a practical way to load and update approved video and image content. The display can be specified in two pixel-pitch options: 1.8mm for DG01-A6P18, or 2.5mm for DG01-A6P25.

Digital signage that is easy to position

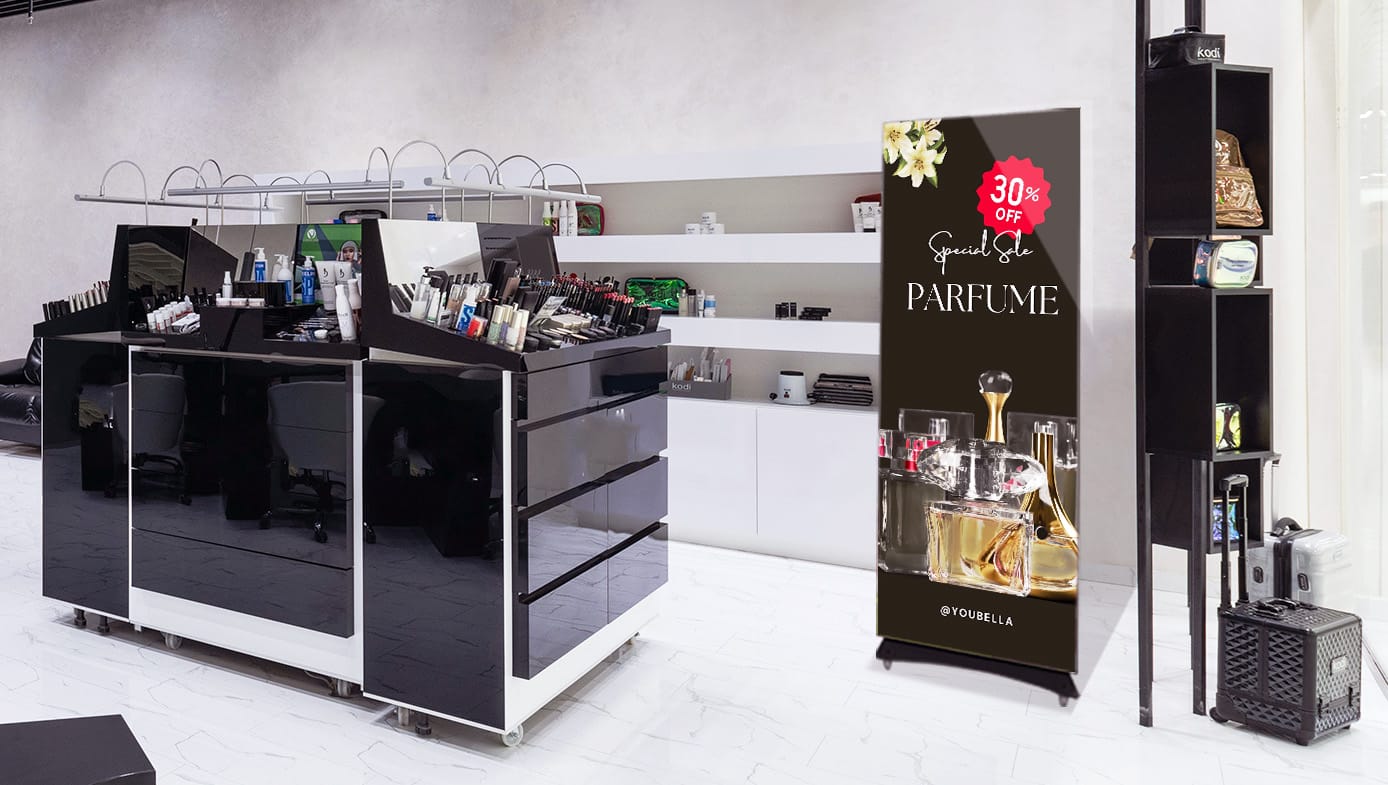

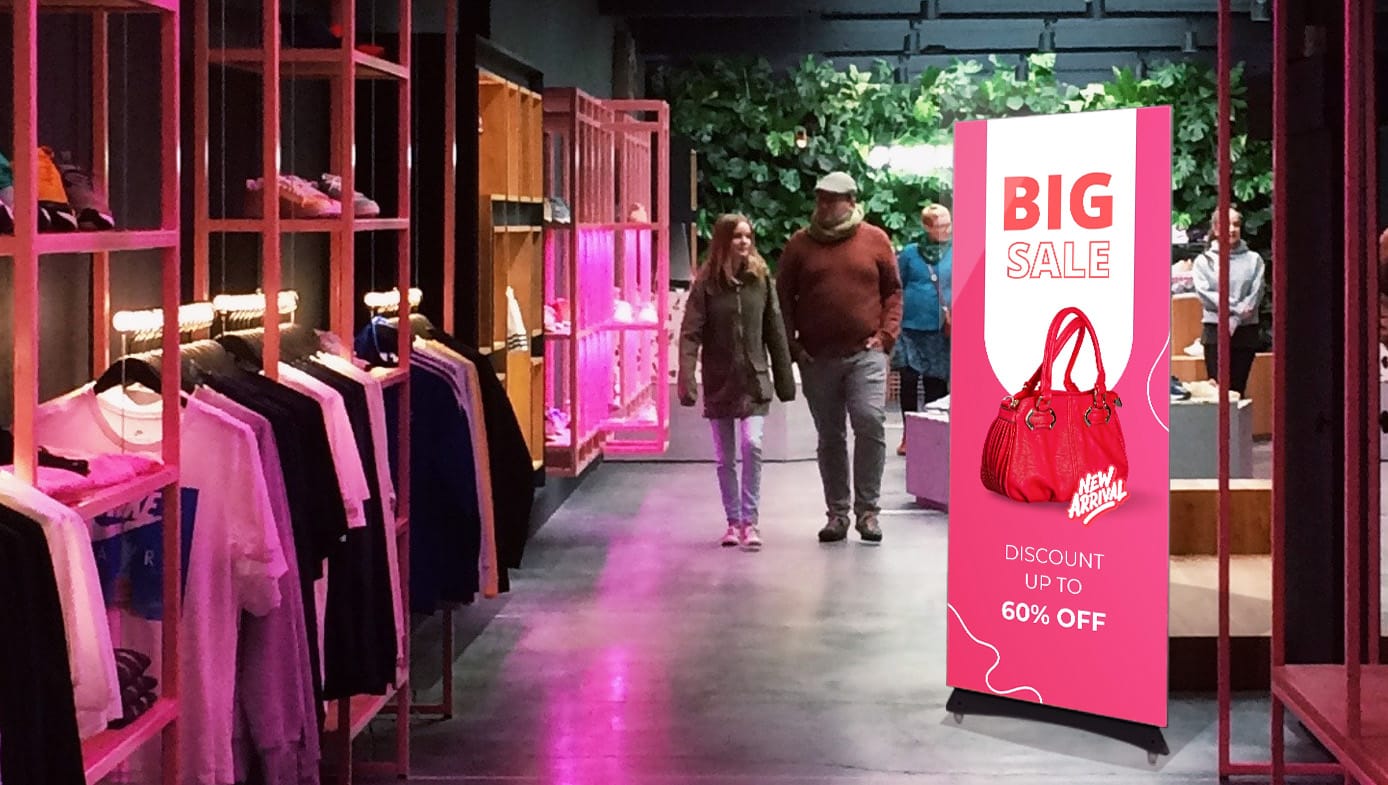

The DG01-A6 is designed for applications where a vertical poster display needs to stand out without a conventional printed sign. The official brochure illustrates use in supermarkets, clothing stores, perfume stores and restaurants, and the format also suits reception areas, showrooms, event spaces and seasonal promotional zones. Its standard black frame gives the unit a clean, neutral finish that can sit comfortably alongside retail fixtures and customer-facing interiors.

Both models offer a choice of 480 × 1920mm or 640 × 1920mm display dimensions. The corresponding cabinet sizes are 492 × 2008 × 450mm and 652 × 2008 × 450mm, with weights of 34kg or 45kg per unit respectively. This makes it important to select the appropriate cabinet width and allow for its floor position, access and clear customer sightlines before ordering.

For campaign-led environments, the poster format makes it easy to dedicate a single display to a particular message: a new range, a time-sensitive offer, a menu feature or a brand story. The display’s supported video and photo playback gives operators scope to alternate static information with motion content, while its broad stated viewing angles help the message remain visible as people pass through the space. A well-planned content schedule can keep the display relevant across dayparts, promotions and seasonal activity.

Choose the right resolution for the viewing distance

DG01-A6P18 uses a 1.8mm pixel pitch with a 170 × 85-dot module resolution, while DG01-A6P25 uses a 2.5mm pitch and 128 × 64-dot module resolution. Both have a brightness of at least 800nit, a 3840Hz refresh rate, a 3000:1 contrast ratio and 160° horizontal / 140° vertical viewing angles. These specifications support clear motion and photo content in the intended viewing area, while the pixel-pitch choice can be matched to the project’s expected viewing distance and content detail.

The cabinet accepts AC110 / 240V, 50–60Hz power. Maximum and average power vary by model: the P18 is specified at 800W/m² maximum and 240W/m² average, while the P25 is specified at 600W/m² maximum and 180W/m² average. The brochure also lists an operating temperature range of -10°C to +40°C, operating humidity of 10–65% RH with no condensation, and an operating lifetime of 100,000 hours. NZTeco can help confirm whether the intended location, content workflow and installation arrangement suit the selected poster cabinet.

Plan your poster-display enquiry

Use the DG01-A6 to present sales messaging, digital menus, launches and promotional content with a professional LED poster format. Explore our ZKDigimax LED display range, view the ZKDigimax brand, or contact NZTeco for advice on model selection, availability and a tailored digital-signage quote.
