Integrated ZKDigimax LED AI digital signage with a 13MP wide-angle camera, 15W stereo sound and ScreenDirect demographic/ad-view insight for commercial campaign planning.

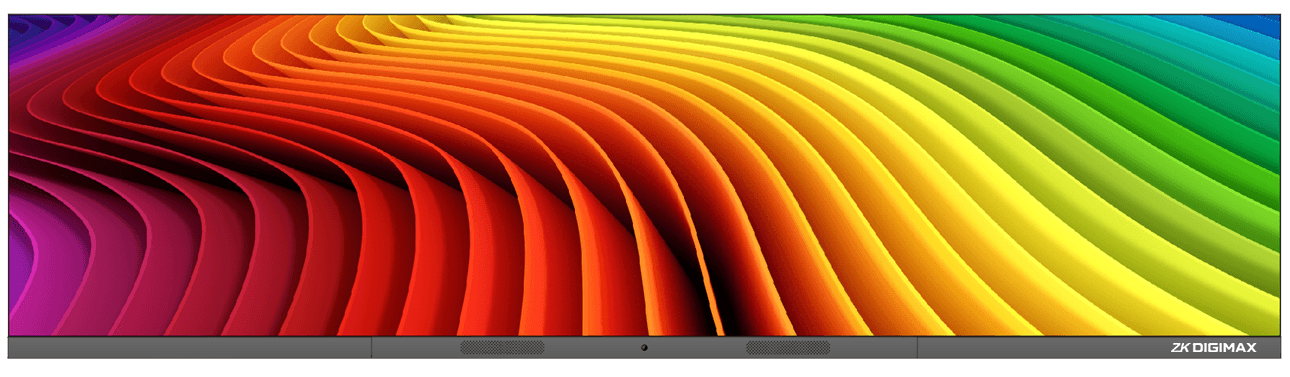

The ZKDigimax DG01-A1P12AIO LED AI All-in-One combines an ultra-wide LED digital signage display, a 13MP wide-angle AI camera and 15W stereo sound in one integrated unit. It is designed for businesses that want a single display platform for promotions, information and audience-informed campaign planning, rather than pairing separate screen, camera and speaker components around a customer-facing location.

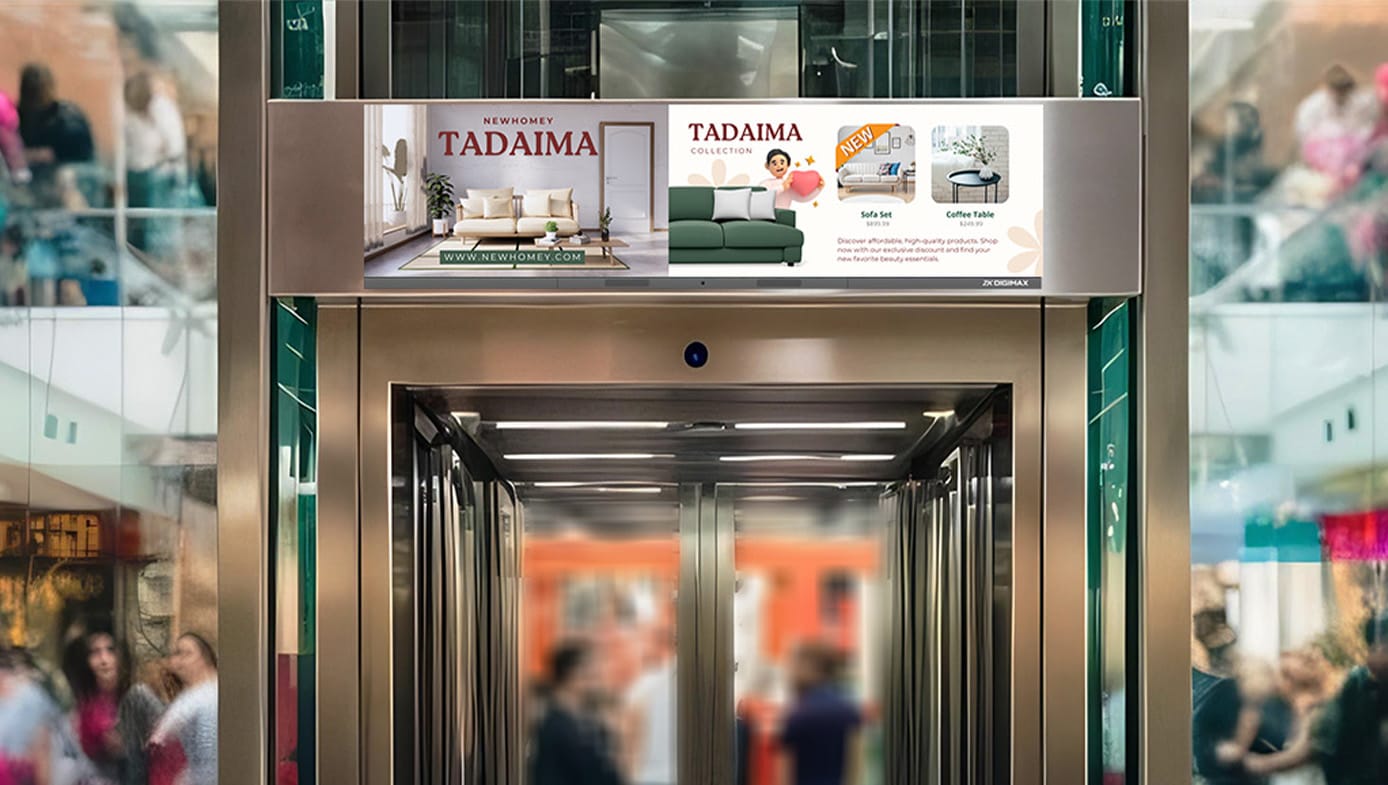

With a 1.25mm pixel pitch and 1890 × 480 screen resolution, the DG01-A1P12AIO is built for crisp, detailed content across a wide horizontal format. Its 2366.5 × 642.2 × 77.8mm screen size makes it particularly suited to retail counters, store entrances, lift lobbies, shopping malls and transit hubs where a broad, low-profile digital display can deliver messaging within the natural customer sightline.
The integrated AI camera works with the ZKDigimax ScreenDirect dashboard to provide age and gender demographic breakdowns, together with ad-view trends across demographic groups and time periods. This gives campaign managers a practical way to review how content is being seen and refine the content, timing and placement of future signage campaigns. The official workflow centres on demographic insight and ad-view reporting through the ScreenDirect dashboard.
Where audience analytics are enabled, the display should be deployed with a considered privacy approach. The operator should establish suitable signage, data-handling processes and campaign governance for the venue and its audience before using analytics features. NZTeco can help scope the intended digital-signage workflow and confirm the role of ScreenDirect within the project.
The display is specified with brightness of 600–800cd/m², a 60Hz frame frequency and 3840Hz refresh frequency for smooth commercial content playback. Built-in 15W stereo sound supports audio-led campaign material where it suits the environment. For larger display requirements, the series also supports seamless splicing technology and a customisable display size approach, allowing the project to be planned around the available wall, counter or architectural space.
The DG01-A1P12AIO uses HUB320 connectivity and is designed for continuous commercial placement. It has a listed lifespan of 100,000 hours, an operating temperature range of -10°C to 60°C and operating humidity of 10–70% RH. The cabinet is only 77.8mm deep, but the final installation should still allow for secure mounting, power, network access, viewing height and practical service access.
Because display, camera and audio are integrated, the DG01-A1P12AIO reduces the visual clutter of a multi-component signage installation. Campaign teams can focus on one coordinated display position and a consistent ScreenDirect reporting view, while site teams can plan the physical installation around a single specified enclosure.

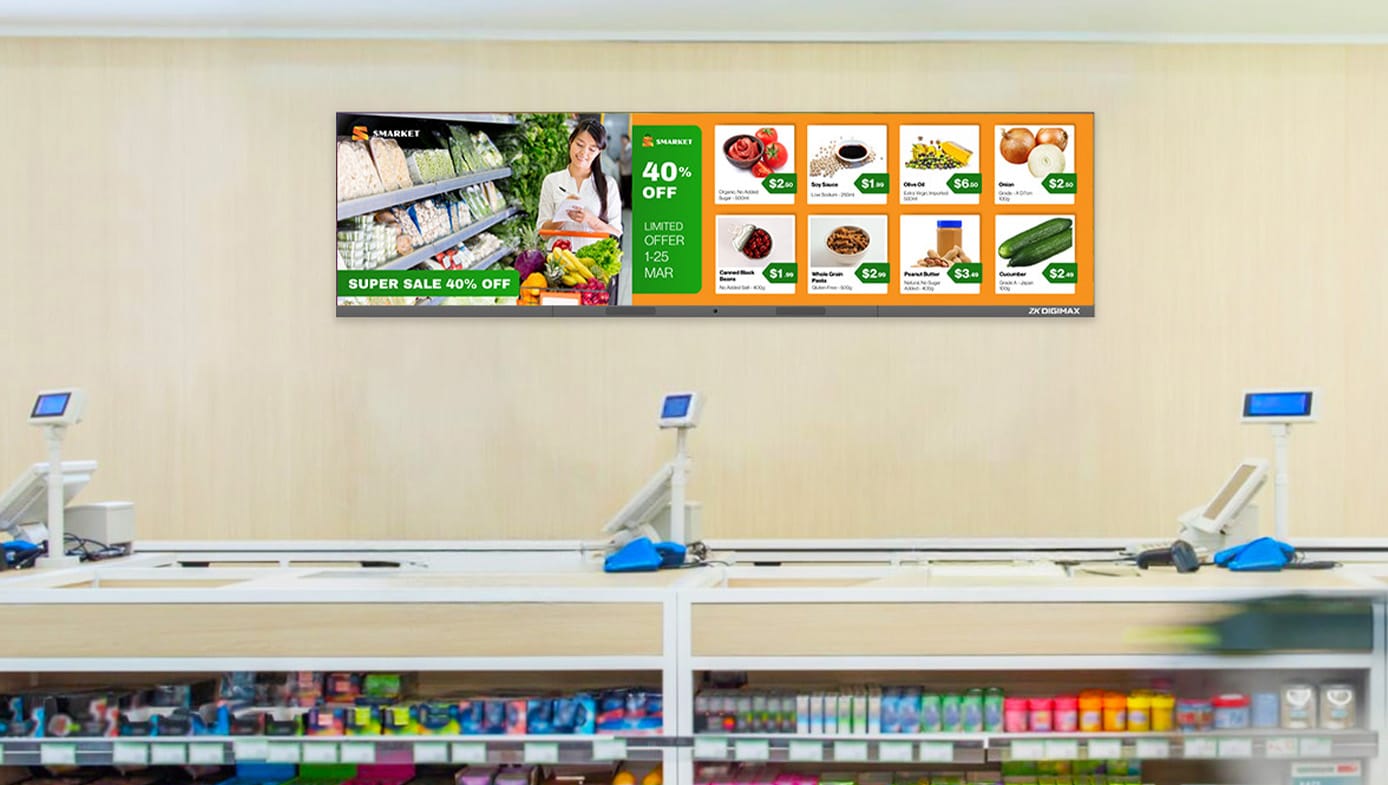

Official application examples include supermarkets, fashion and lifestyle stores, shopping malls, and airports or transit hubs. In a supermarket, the wide display can bring promotional and product information together above a customer service or checkout zone. In retail and transport settings, it provides a way to keep campaign content visible while using ScreenDirect reporting to evaluate demographic and view-trend insights over time.
The DG01-A1P12AIO is supplied on an enquiry basis so the display placement, content approach, ScreenDirect workflow and analytics governance can be matched to the site. Explore the ZKDigimax LED display range, see the ZKDigimax brand, or contact NZTeco for availability and a project-focused recommendation.
| Specification | DG01-A1P12AIO |
|---|---|
| Pixel pitch | 1.25mm |
| Module size | 300 × 168.75mm |
| Module resolution | 240 × 135 dots |
| Screen size | 2366.5 × 642.2 × 77.8mm |
| Screen resolution | 1890 × 480 |
| Pixel density | 640,000 dots/m² |
| Port type | HUB320 |
| Brightness | 600–800cd/m² |
| Frame frequency | 60Hz |
| Refresh frequency | 3840Hz |
| Lifespan | 100,000 hours |
| Working temperature | -10°C to 60°C |
| Working humidity | 10–70% RH |
| AI camera | Wide-angle 13 megapixels |
| Audio | 15W stereo sound |
