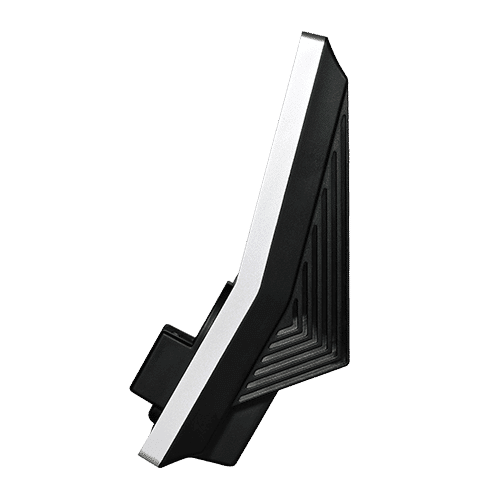

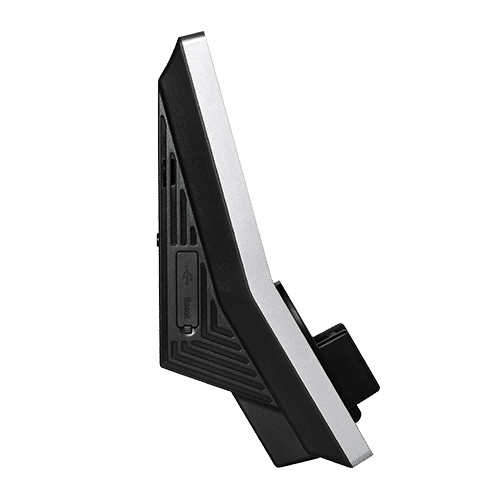

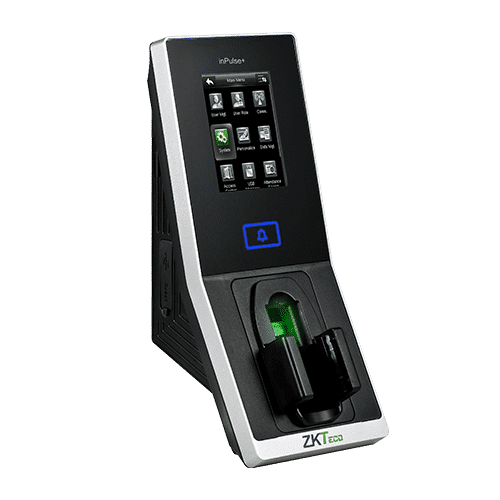

ZKTeco inPulse+: Multi-Biometric Finger Vein & Fingerprint Reader

The ZKTeco inPulse+ is a multi-biometric reader capable of capturing and processing finger vein and fingerprint biometric data at the same time. Ergonomic, intuitive, and highly secured, inPulse+ leads us to a new era of enhancing security with biometrics. Its infra-red rays illuminate the vein pattern which is then converted into a biometric template. Both the vein and fingerprint templates are then stored in the database for subsequent matching.

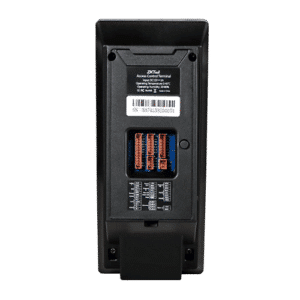

The finger vein capacity is 1,500 and the fingerprint capacity is 1,500. The card capacity is 2,000 and the transaction capacity is 100,000. Communication options include TCP/IP/USB Host/Wiegand Input/Output/Security Relay Box. The access control interface includes lock relay output/alarm output/auxiliary input/exit button/door sensor/doorbell output.

The hardware includes a 1.2GHz High-Speed CPU/Memory 128MB RAM/256MB Flash/ZK Fingerprint Sensor/2.8 Inches TFT-LCD Touch Screen/125KHz EM Reader/Mifare (Optional)/Hi-Fi Voice & Indicator/Tamper Switch Alarm. Standard functions include access levels/groups/holidays/DST/bell schedule/duress mode (password)/anti-passback/record query/custom wallpaper & screen saver.

Special functions include multiple biometric verification modes/ZK Encrypted Card (Optional). Compatibility options include Wiegand Slave Reader/ZKBioSecurity Software. The operating temperature is -10°C ~ 50°C and the dimension is 201.7 × 85 × 102.7 mm.
