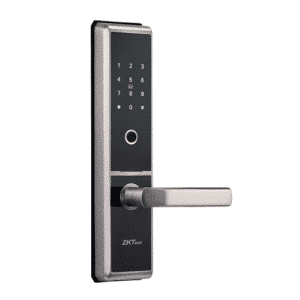

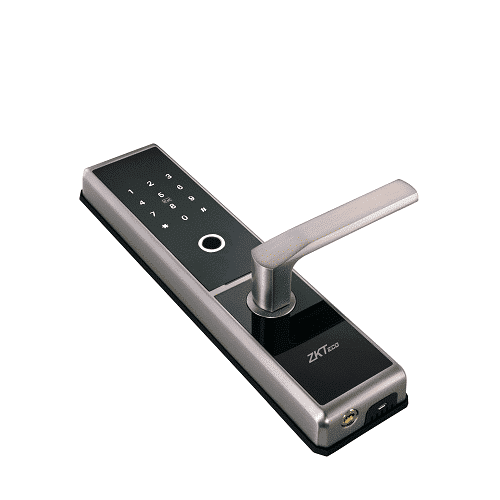

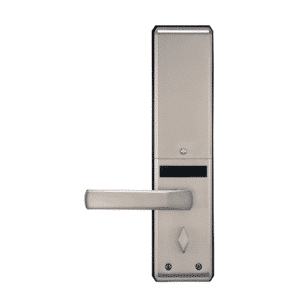

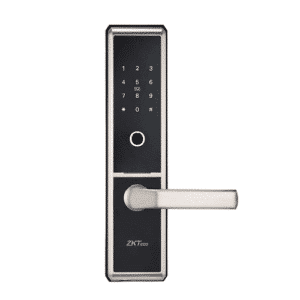

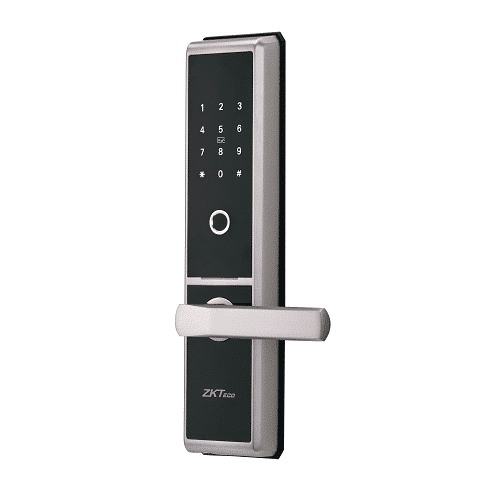

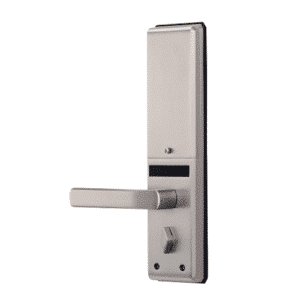

ZKTeco TL300Z: Advanced Fingerprint Keypad Smart Lock with Zigbee Communication

ZKTeco TL300Z

The ZKTeco TL300Z is an advanced fingerprint keypad smart lock with Zigbee communication that provides security performance in all aspects. With its powerful and smart core, you can receive real-time notifications of low battery, illegal verification attempts, hijack alarm of family members, offline status, and so on. You can also customize conditions to trigger some messages or actions. The TL300Z is a perfect choice for private houses, superior apartments, and short-term rentals.

Features

  • Supports Smart Phone, Fingerprint, Passcode, and Card identification
  • User Capacity of 100
  • Capacitive Fingerprint Sensor
  • Supports Zigbee communication
  • Robust Zinc Alloy casing

Product Details

The ZKTeco TL300Z is an advanced fingerprint keypad smart lock with Zigbee communication. With its robust Zinc Alloy casing and multiple locking mechanisms, it provides security performance in all aspects. The additional Zigbee Gateway allows you to unlock the door lock remotely, check the log history, share temporary or dynamic passcodes, and modify the lock’s features via the ZSmart App, which is a new mobile application for the smart home system.

With its powerful and smart core, you can receive real-time notifications of low battery, illegal verification attempts, hijack alarm of family members, offline status, and so on.

You can also customize conditions to trigger some messages or actions, such as launching a scenario configured when a family member arrives at home. The TL300Z is a perfect choice for private houses, superior apartments, and short-term rentals, bringing clients more secure and convenient smart daily lives.

The TL300Z has a user capacity of 100 and supports identification modes such as Smart Phone, Fingerprint, Passcode, and Card. It has a fingerprint capacity of 100, passcode capacity of 100, and card capacity of 100. The fingerprint sensor is capacitive and the card reader supports IC Card & NFC. The audio prompt is available in English, Spanish, and Portuguese.

The power supply is 8×AA Alkaline Battery (not supplied) with a backup power interface of Micro-USB Port Supported. The battery life is up to 3 years (about 20,000 access). The door thickness supported is 38-60mm (standard) with dimensions of Front – 83 * 345 * 33 (mm) and Back – 83 * 345 * 29 (mm). The color options available are Dull Nickel / Gun Black. The operating temperature is -20°C to 55°C and operating humidity is 10% ~ 90% RH (non-condensing).

Specifications

FeatureSpecification
Case MaterialZinc Alloy
MortiseChina Standard Anti-Theft Mortise
Identification ModeSmart Phone, Fingerprint, Passcode, and Card
User Capacity100
Fingerprint Capacity100
Passcode Capacity100
Card Capacity100
Fingerprint SensorCapacitive (silicon)
Card ReaderIC Card & NFC Supported
Audio PromptEnglish, Spanish, Portuguese
CommunicationZigbee
Remote AccessZigbee Gateway Required
Power Supply8×AA Alkaline Battery (not supplied)
Backup Power InterfaceMicro-USB Port Supported
Battery LifeUp to 3 years (about 20,000 access)
Door Thickness38-60mm (standard)
Dimensions (W*L*D)Front – 83*345*33 (mm) Back – 83*345*29 (mm)
Color OptionsDull Nickel / Gun Black
Operating Temperature-20°C to 55°C
Operating Humidity10%~90% RH (non-condensing)
CertificationsCE-RED, FCC ID
