Control a single pedestrian lane with the ZKTeco FHT2400 full height turnstile. Its semi-automatic mechanism, stainless steel construction and LED direction indicator suit commercial and industrial entrances, with RFID or fingerprint access available through the corresponding FHT2411 or FHT2422 configuration.

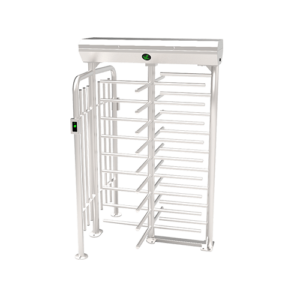

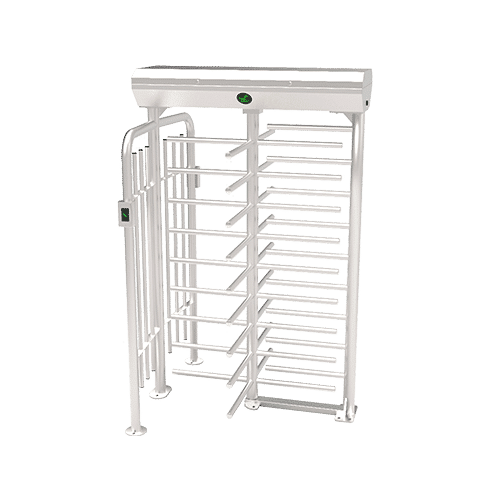

The ZKTeco FHT2400 is a single-lane full height turnstile for controlled pedestrian access. Its rotating barrier and SUS304 stainless steel cabinet provide a defined passage through a perimeter or secure entrance. It suits projects such as industrial facilities, corporate premises, government sites and public transport entrances where access needs to be managed through an access control system.
The FHT2400 uses a semi-automatic mechanism. When the configured access system grants permission, the mechanism releases and the pedestrian pushes the rotating arms to pass. An LED direction indicator provides visible guidance at the entrance. Direction settings support passage in both directions or a selected direction, allowing the installer to configure the lane around the site’s entry and exit arrangements.
The passage width is 580 mm. Maximum throughput is 20 people per minute with RFID or 15 people per minute with fingerprint verification when the corresponding access configuration is fitted. These are maximum figures; the credential method and the way people use the entrance affect practical flow.
Reader equipment shown in product images depends on the ordered configuration. The turnstile accepts a switching control signal; NZTeco can help check the controller, readers and credentials required for your project. If your layout needs two pedestrian lanes in one unit, compare the FHT2400D dual-lane turnstile, or browse the wider full height turnstile range.
The installed dimensions are 1400 × 1320 × 2220 mm (L × W × H), with a 230 kg net weight. The FHT2400 is rated IP54 and may be used indoors or outdoors with shelter, as required by the user manual. Stainless steel still needs appropriate care: the manufacturer advises against highly corrosive environments such as seaside locations and chemical plants. SUS316 barrier material is an option, subject to the ordered configuration.
Installation planning should cover the solid mounting platform, reliable earthing, power and control cabling, weather exposure and the site’s emergency-access arrangements. The installation guide recommends a horizontal solid platform 50–100 mm high. Confirm the final dimensions and mounting details against the supplied unit before preparing the site.
Contact NZTeco for a turnstile quote with your lane layout, expected pedestrian flow, site conditions and preferred access method so the configuration can be checked before ordering.
| Feature | Specification |
|---|---|
| Product | ZKTeco FHT2400 |
| Passage arrangement | Single lane |
| Mechanism | Semi-automatic; pedestrian pushes the rotating arms after release |
| Base configuration | Turnstile without integrated access-control package |
| RFID configuration | FHT2411 — RFID access control system |
| Fingerprint configuration | FHT2422 — fingerprint and RFID access control system |
| Lane width | 580 mm |
| Maximum throughput | RFID: 20 people/minute; fingerprint: 15 people/minute, with the corresponding access configuration |
| Dimensions (L × W × H) | 1400 × 1320 × 2220 mm |
| Footprint (L × W) | 1400 × 1320 mm |
| Packed dimensions (L × W × H) | 1520 × 1220 × 2230 mm |
| Net weight | 230 kg |
| Cabinet material | SUS304 stainless steel |
| Barrier material | SUS304; SUS316 optional |
| Barrier movement | Rotating |
| Direction indicator | LED |
| Power requirements | AC 110 V / 220 V, 50 / 60 Hz |
| Working temperature | −28°C to 60°C |
| Working humidity | 25% to 75% |
| Working environment | Indoor / outdoor if sheltered |
| Ingress protection | IP54 |
| Input control signal | Switching signal |
| Emergency mode | Supported; confirm the required site configuration |
| Mean cycles between failure (MCBF) | 1 million |
Dimensions and performance use the March 2025 FHT2400 brochure. The user manual requires shelter for outdoor installations. Verify mounting details against the supplied unit.
