23.8-inch Full HD desktop digital signage for customer-facing counters, service points and retail displays. DG03-A1D24 combines Android 9.0, 700 cd/m² typical brightness, ScreenDirect CMS compatibility and commercial 24/7 operation in a compact indoor format.

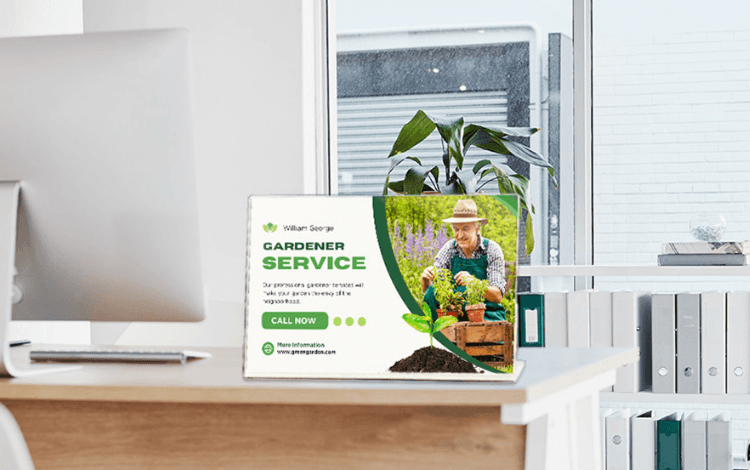

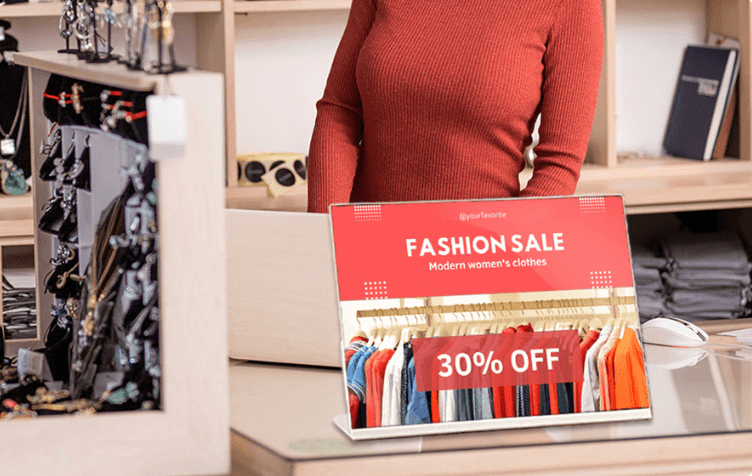

Put clear, current customer information where people are making decisions with the ZKDigimax DG03-A1D24. This 23.8-inch desktop digital-signage display combines a Full HD ELED screen, Android 9.0 and a compact counter-top form factor for indoor commercial locations. It is a practical fit for restaurant menus, reception information, service-desk communications, retail promotions, showroom content and point-of-sale messaging where a large wall screen would be unnecessary.
Designed for continuous 24/7 operation, the DG03-A1D24 helps businesses maintain a polished customer-facing display throughout the trading day. Its ultra-narrow frame directs attention to the content, while the 1920 x 1080 Full HD resolution, 16.7 million display colours and 178-degree horizontal and vertical viewing angles support legible content from the usual customer and staff positions around a counter or service point.
The display is specified with 700 cd/m² typical brightness, a 1000:1 typical contrast ratio and an 8 ms typical response time. These characteristics make it well suited to carefully placed indoor applications such as restaurant tables, hotel desks, retail counters, pharmacy service points, visitor areas and sales displays. Content should be designed for the actual distance, mounting height and ambient light at the site, so menus, offers, wayfinding and product messages remain useful rather than simply replicating a large-format screen layout.
At 23.8 inches, the DG03-A1D24 creates a substantial visual surface without dominating the counter. The display measures 615.36 x 28.5 x 318.75 mm, helping project teams plan the footprint, cable route, power outlet, sightlines and customer interaction zone before installation. It is designed for an appropriate indoor commercial environment, with a specified working temperature of 0°C to 40°C and working humidity of 20% to 80% RH.
DG03-A1D24 runs Android 9.0 and is specified with a Mali-G52 GPU, 2 GB RAM and 16 GB ROM. It provides one LAN input, one HDMI port and two USB ports, with Wi-Fi and Bluetooth support. The Wi-Fi module is specified at 2.4 GHz. These connections provide options for a managed signage deployment, approved content source, network arrangement and supported peripherals; the final approach should be selected to suit the site and IT requirements.
The display is compatible with ZKDigimax ScreenDirect CMS, allowing teams to organise and deploy approved digital-signage content across compatible ScreenDirect displays. That is particularly valuable for operators with multiple counters, branches or campaign changes, where menu items, promotions, service notices and brand material need to stay consistent without manually managing each display as a standalone screen.
The unit accepts 90 to 264 V, 50/60 Hz power, with 36 W maximum consumption and standby consumption below 0.5 W. It includes two 3 W speakers and has a stated 30,000-hour service life. Provide stable power, suitable ventilation, safe cable routing and cleaning access as part of the installation. The published specification does not assign an IP rating, so it is not specified for exposed outdoor locations.
Compare a smaller ZKDigimax DG03-A3D10 Tablet Display, a portable ZKDigimax DG03-A2F43 display, or the larger ZKDigimax DG03-A1W Series. Contact NZTeco for a suitable desktop-signage configuration, ScreenDirect guidance and a commercial quote.
| Specification | DG03-A1D24 |
|---|---|
| Model | DG03-A1D24 |
| Product type | Desktop digital signage display |
| Designed operation | Continuous 24/7 operation |
| Operating system | Android 9.0 |
| GPU | Mali-G52 |
| RAM | 2 GB |
| ROM | 16 GB |
| Display size | 23.8-inch |
| Display technology | Full HD ELED screen |
| Resolution | 1920 x 1080 |
| Response time | 8 ms (typ.) |
| Display colours | 16.7 M (8 bit) |
| Contrast ratio | 1000:1 (typ.) |
| Viewing angle | 178° (H) / 178° (V) |
| Brightness | 700 cd/m² (typ.) |
| LAN input | 1 |
| HDMI | 1 |
| USB | 2 |
| Wireless | Wi-Fi and Bluetooth supported; 2.4 GHz Wi-Fi operating frequency |
| Content management | Compatible with ZKDigimax ScreenDirect CMS |
| Power input | 90-264 V, 50/60 Hz |
| Maximum consumption | 36 W |
| Standby consumption | <0.5 W |
| Speaker power | 2 x 3 W |
| Service life | 30,000 hours |
| Working temperature | 0°C to 40°C |
| Storage temperature | -20°C to 60°C |
| Working humidity | 20% to 80% RH |
| Storage humidity | 10% to 90% RH |
| Product dimensions | 615.36 x 28.5 x 318.75 mm |
| Source | Official ZKDigimax DG03-A1D24 brochure |
