Ultra-wide LCD shelf signage for product promotions, pricing context and branded messaging at the point of purchase. The DG03-S1W series provides wall-mounted retail display formats from 23.1 to 37 inches, with ScreenDirect CMS compatibility for coordinated content management.
Bring product information, promotions and branded visual content closer to the buying decision with the ZKDigimax LCD Shelf Display. The DG03-S1W Series is an ultra-wide, wall-mounted LCD shelf-signage range created for retail environments where conventional screens are too large, too deep or positioned too far from the merchandise. Its elongated display format fits along shelf fixtures and display runs, helping retailers turn existing shelf space into a clear, engaging point-of-purchase communication channel.

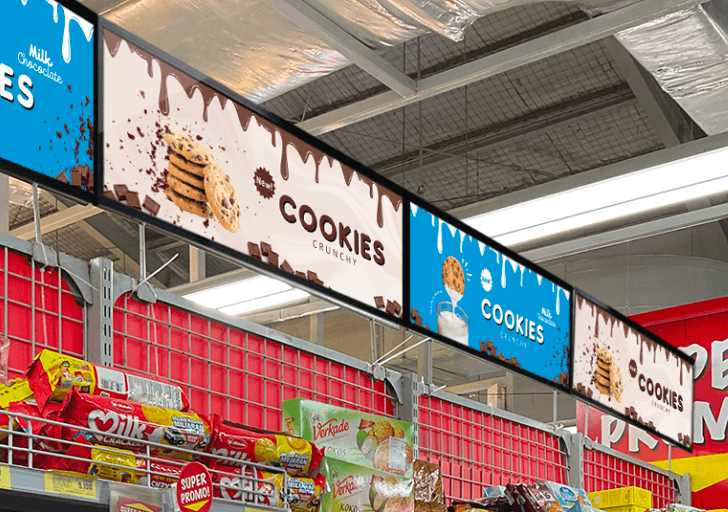

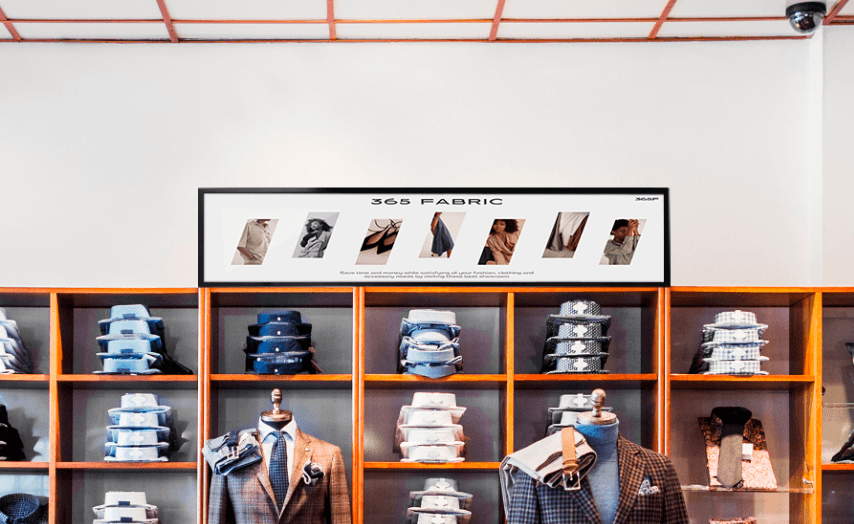

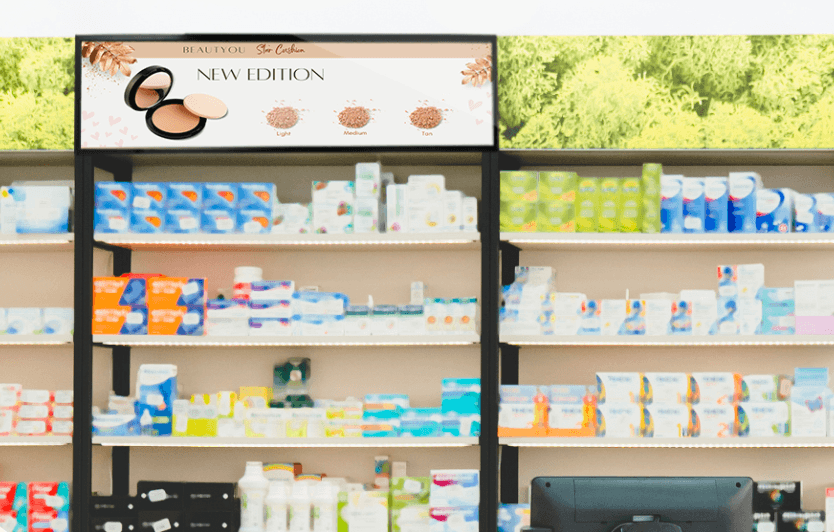

Use LCD shelf signage to highlight campaign offers, new-product launches, product comparisons, category messages and supporting brand content where shoppers browse. The official application examples include supermarkets, cosmetic stores, clothing stores and optical stores, making the series well suited to supermarkets, pharmacies, speciality retail, department stores, convenience formats and branded shop-in-shop environments throughout New Zealand.
The series includes DG03-S1W23, DG03-S1W24, DG03-S1W28, DG03-S1W29, DG03-S1W35 and DG03-S1W37 models. Screen sizes span 23.1, 24, 28, 29, 35 and 37 inches, allowing the display to be matched to the available shelf run, viewing distance and merchandising layout. The panel resolutions range from 1920 x 158 to 1920 x 540, creating a wide canvas for shelf-edge promotions and product storytelling rather than a conventional landscape display.
Brightness, memory and onboard storage are model dependent. The official product information lists brightness options from 300 to 700 cd/m², 1 GB DDR3 on most models, and a 35-inch configuration with 2 GB DDR3 and 16 GB eMMC storage. This gives project teams the flexibility to select a practical display size and hardware configuration for the intended retail use. NZTeco can help confirm the correct model before an order is placed.
A slim design with a narrow bezel keeps the content at the forefront while the full-metal shell supports commercial deployment. The series uses WLED backlighting and is specified for wall mounting. The official brochure lists the Rockchip PX30 platform and Android operating system, with Android 8.1 across most of the range and Android 9.0 for the DG03-S1W35 model. Connectivity varies by model and includes combinations of micro USB with OTG, TF-card and Type-C interfaces.
For indoor retail locations, the brochure specifies an operating temperature of 0 to 50°C and 10% to 85% operating humidity. Power supply and consumption also differ by model, so the selected display should be planned around the fixture, power outlet, cable route, retail environment and installation method. This is commercial shelf signage intended for an appropriate indoor installation, rather than a universal outdoor display.
The LCD Shelf Display is compatible with ZKDigimax ScreenDirect CMS, giving retail teams a practical way to organise approved promotional and product-information content across a compatible shelf-display deployment. That makes it easier to coordinate seasonal campaigns, category updates and brand messaging across locations without treating each shelf screen as an isolated asset.
For a broader display elsewhere in the store, compare the ZKDigimax DG03-A1W Series or the ZKDigimax DG03-A3W Series. For shelf labelling rather than visual promotions, see the ZKDigimax Electronic Price Tag Series. Contact NZTeco for a retail shelf-signage proposal, ScreenDirect compatibility guidance and a commercial quote.
| Specification | DG03-S1W Series |
|---|---|
| Product family | ZKDigimax LCD Shelf Display |
| Models | DG03-S1W23, DG03-S1W24, DG03-S1W28, DG03-S1W29, DG03-S1W35 and DG03-S1W37 |
| Primary application | Indoor retail shelf promotions, product information and advertising |
| Installation | Wall mounted |
| Screen-size options | 23.1, 24, 28, 29, 35 and 37 inches |
| Resolution options | 1920 x 158; 1920 x 360; 1920 x 540, model dependent |
| Brightness range | 300 to 700 cd/m², model dependent |
| Backlight | WLED |
| Contrast ratio | Up to 3000:1; model dependent |
| Backlight life | 30,000 or 50,000 hours, model dependent |
| CPU | PX30 |
| Operating system | Android 8.1; Android 9.0 for DG03-S1W35 |
| Memory | 1 GB DDR3; DG03-S1W35 listed with 2 GB DDR3 |
| Internal storage | 8 GB eMMC; DG03-S1W35 listed with 16 GB eMMC |
| I/O interfaces | Model-dependent combinations of micro USB (OTG), TF-card and Type-C ports |
| Power supply | DC 12 V / 3 A on most models; DG03-S1W37 listed as 100-240 V, 50/60 Hz |
| Power consumption | ≤18 W to ≤60 W, model dependent |
| Operating temperature | 0 to 50°C |
| Operating humidity | 10% to 85% |
| Housing | Full-metal shell |
| Display design | Slim design with narrow bezel |
| Content management | Compatible with ZKDigimax ScreenDirect CMS |
| Source | Official ZKDigimax LCD Shelf Display product page and brochure |
