ZKDigimax DG01-A9 interactive LED floor screens create responsive visual experiences for events, venues and retail. P3.91 verified configuration with 1.5-tonne/m² load support, anti-slip surface and ScreenDirect CMS compatibility.
The ZKDigimax DG01-A9 Interactive LED Floor Screen turns underfoot space into a responsive digital experience. Designed for installations where people do more than simply view the display, it can trigger dynamic visual effects when visitors make contact with the floor. This makes it a compelling choice for entertainment venues, retail activations, hospitality spaces, exhibitions and event environments where the display itself becomes part of the audience experience.
Use the DG01-A9 to create interactive pathways, performance floors, promotional zones and immersive entrances. Effects can be customised for the project, including underfoot ripple and blooming-flower effects, helping a venue turn movement into an engaging visual moment. The result is an LED installation that supports brand storytelling, wayfinding, entertainment and visitor engagement from the ground up.
The DG01-A9 combines interactive capability with a purpose-designed floor construction. It is specified with superior weight support of up to 1.5 tonnes/m², alongside an anti-slip and durable surface. This makes it suitable for professionally designed public and commercial floor-display projects where the supporting structure, traffic pattern and installation details are assessed for the specific site.
Installation and maintenance are designed to be straightforward. A floor LED project should still be planned as a complete system: confirm the subfloor condition, access for service, cable routes, power distribution, controller location and how the floor will meet the surrounding finishes. NZTeco can help align the display layout with the practical requirements of the venue.
The product page lists DG01-A9 pitch options of P2.5, P2.9, P3.9 and P4.8. The accompanying official brochure provides detailed technical data for the DG01-A9P3.91 configuration, which is the specification shown below. It uses a 250 × 250mm full-colour module with 65,536-dot density and 4,096 module pixels. The module is 20mm thick, weighs 690g and has a specified power consumption of no more than 48.5W.
For a project requiring another listed pitch, NZTeco will confirm the configuration, available specifications and layout before quotation. This keeps the display resolution, interaction design and physical floor area aligned with the intended viewing distance and visitor experience.

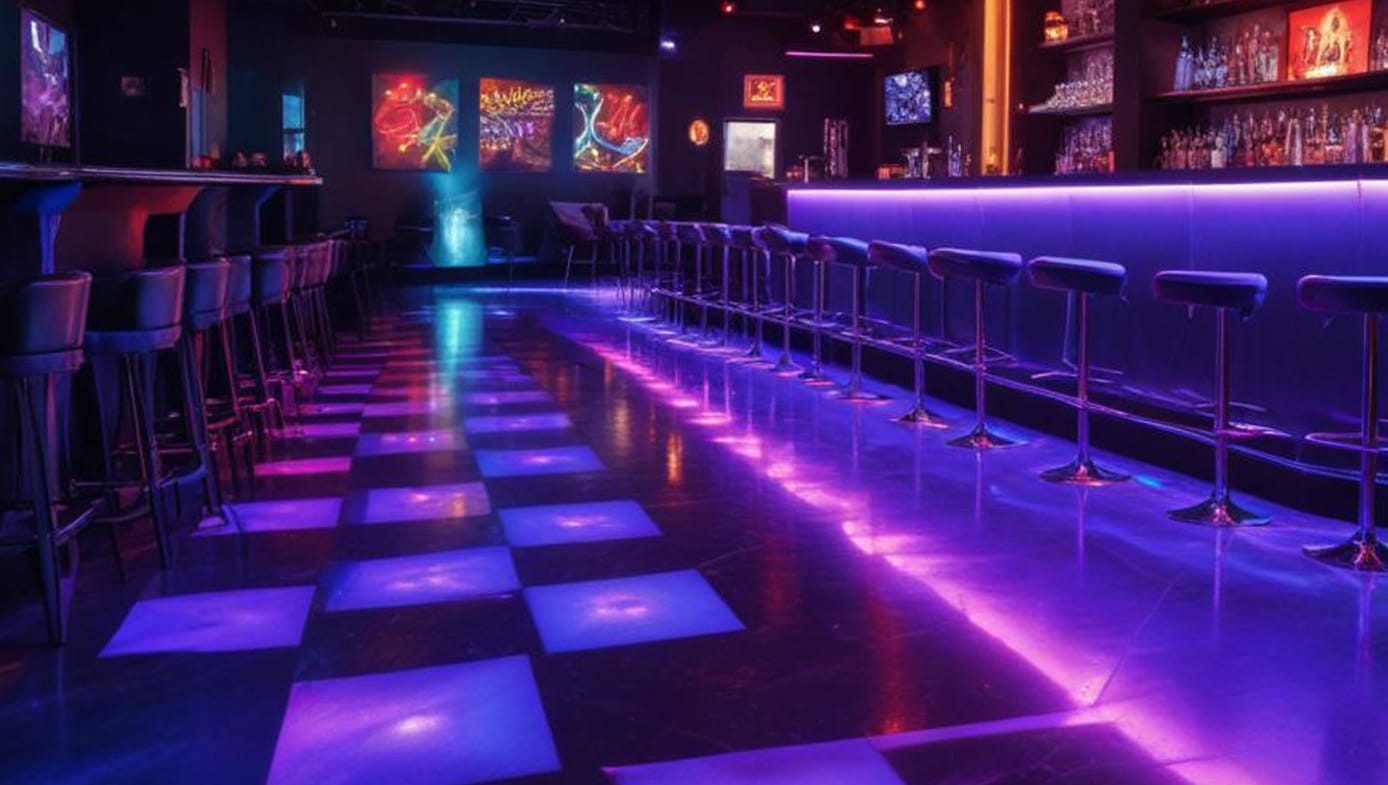

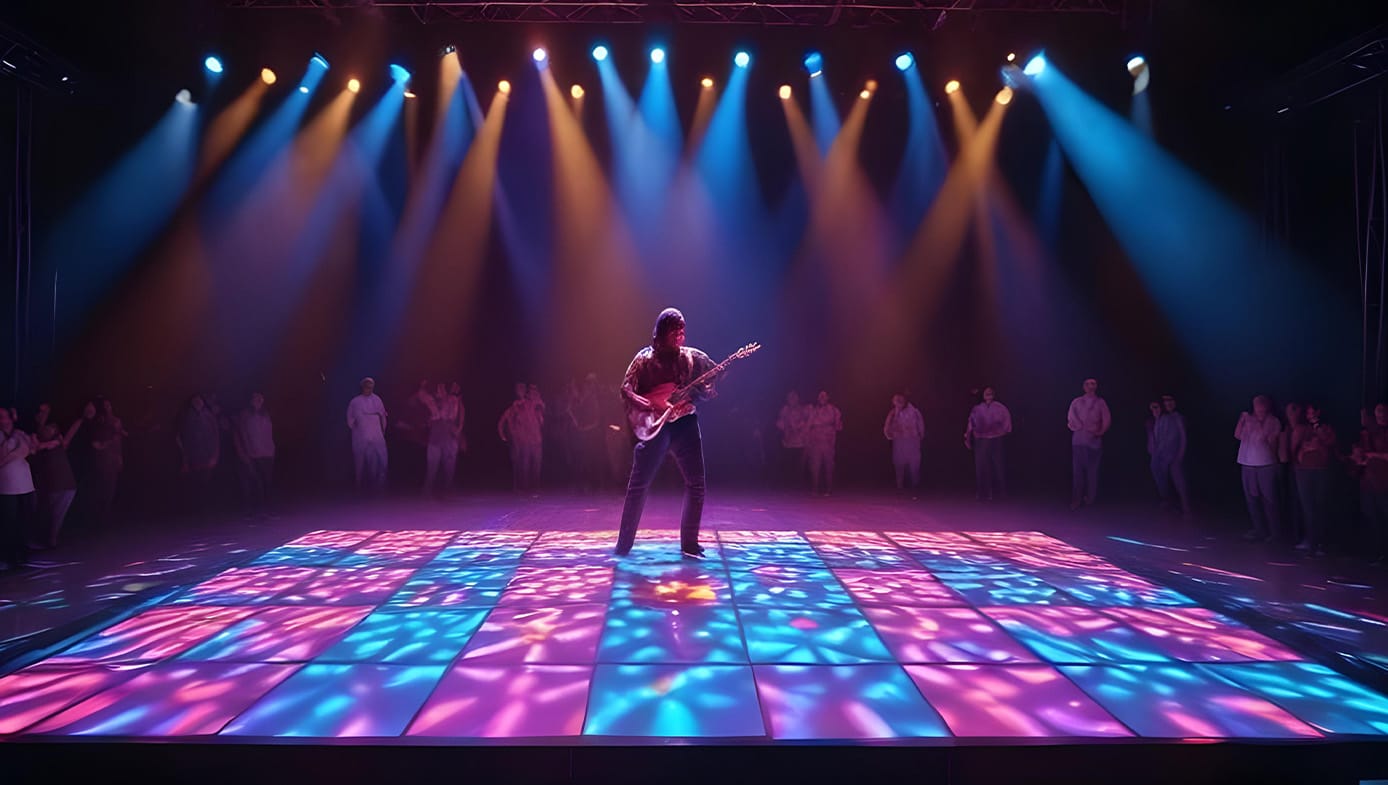

The DG01-A9 is compatible with ZKDigimax ScreenDirect CMS, giving authorised teams a practical way to organise, schedule and manage display content. Coordinate the visual programme with the interaction concept: use clear movement cues, responsive animations and content that works across the complete floor area. This is particularly effective for concerts, malls, bars, stairs and promotional installations where the floor display needs to complement the wider venue lighting and customer journey.
ScreenDirect CMS supports an organised workflow for seasonal campaigns, event content and ongoing venue programming. NZTeco can help your team consider the LED floor, media control and installation environment together from the earliest project stage.
Browse our ZKDigimax LED display range and the wider ZKDigimax range. For project pricing and specification support, contact NZTeco with the intended floor area, audience use, installation environment, interaction brief and event or operating schedule.
| Specification | DG01-A9P3.91 |
|---|---|
| Pixel pitch | P3.91mm |
| Form factor | Full colour |
| Density | 65,536 dots |
| Module size | 250 × 250mm |
| Module pixels | 4,096 dots |
| Module thickness | 20mm |
| Module weight | 690g |
| Module power consumption | ≤48.5W |
| Module current | 9.7A |
| Module interface | HUB-75D/B |
| Weight support | Up to 1.5 tonnes/m² |
| Surface | Anti-slip and durable |
| Interaction effects | Customisable, including underfoot ripple and blooming flowers |
The official product page also lists P2.5, P2.9, P3.9 and P4.8 pitch options. Confirm technical details for any configuration other than the brochure-verified DG01-A9P3.91 before specification.
