The ZKDigimax DG03-A1F standing digital signage series is a freestanding Full HD commercial display range for retail, hospitality and customer-facing indoor spaces, available in 43, 49 and 55-inch models.
The ZKDigimax DG03-A1F standing digital signage series brings clear, professional visual communication to customer-facing spaces across New Zealand. This freestanding portrait display range is available as the 43-inch DG03-A1F43, 49-inch DG03-A1F49 and 55-inch DG03-A1F55. It is well suited to retail floors, clothing stores, cafés, grocery stores, cosmetic stores, reception areas and other indoor locations where promotions, menus, wayfinding or brand messages need to be seen clearly.
Each model uses a Full HD 1920 × 1080 display with a 16:9 aspect ratio, 350 cd/m² typical brightness, an 8 ms response time and 178° horizontal and vertical viewing angles. The portrait standing format places content at eye level without requiring wall mounting, making it a practical choice where a display needs to be positioned within a customer journey or moved as the layout of a space changes.
The DG03-A1F series runs Android 11.0 on an RK3566 chipset with a Cortex-A55 four-core 1.8 GHz CPU, 2 GB RAM and 16 GB of internal storage. It supports 2.4 GHz Wi-Fi and wired LAN through RJ45, giving installers options for the site network. For local connections and content sources, the range includes one RJ45 port, one USB 2.0 port, one USB 3.0 port, one HDMI input, one earphone connection and one TF-card slot.
The built-in player supports common media formats: WMV, AVI, FLV, RM, RMVB, MPEG, TS and MP4 video; MP3, WMA, MP2 and WAV audio; and JPG, BMP, PNG and GIF images. Two 5 W speakers are specified. This makes the platform useful for changing promotions, visual menus, product campaigns and customer information without needing a separate display enclosure and player.
ZKDigimax identifies an HD camera and microphone among the series features, with customisable scenario applications available for projects that need more than standard playback. The DG03-A1F is also compatible with ZKDigimax ScreenDirect CMS, enabling centralised content planning and delivery for a connected signage deployment. NZTeco can help scope the required content workflow, connectivity, installation location and any site-specific functionality before supply.

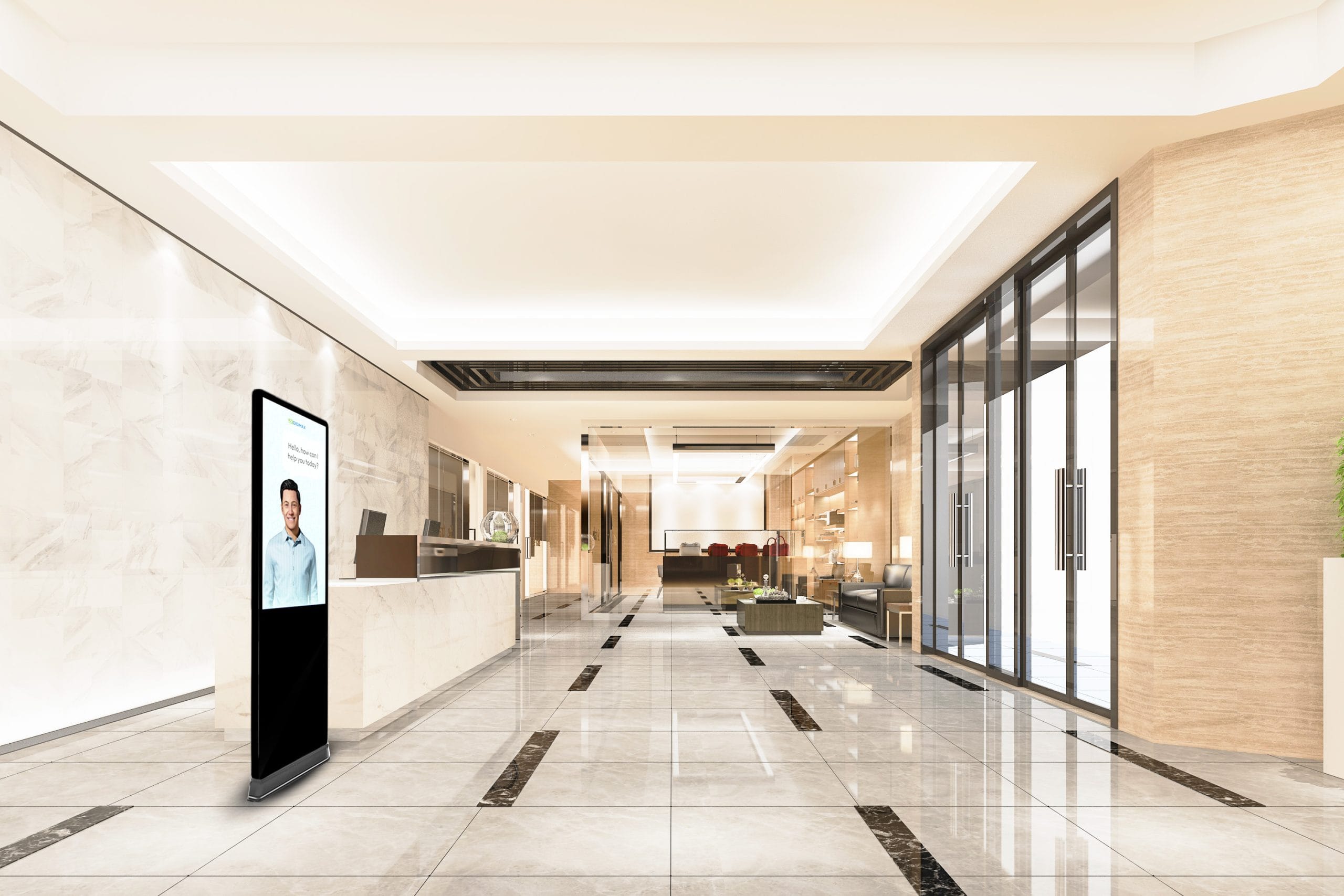

The official product examples show the format being used in clothing, coffee, grocery and cosmetic retail environments. Select the display size according to the viewing distance, available floor space and the prominence needed for the message: DG03-A1F43 is the compact option, while DG03-A1F49 and DG03-A1F55 provide a larger canvas for busy public areas.
All models use ELED backlighting, accept 100–240 V 50/60 Hz input and are specified for operation from 0°C to 50°C with 20% to 80% operating humidity. Maximum consumption is up to 50 W for the 43-inch model, 80 W for the 49-inch model and 90 W for the 55-inch model; standby consumption is up to 4 W. The respective net weights are 38 kg, 45 kg and 49 kg, so allow for safe handling and an appropriate final position during installation.
For a complete digital-signage solution, explore the ZKDigimax digital signage range or contact NZTeco to discuss the right DG03-A1F model, ScreenDirect CMS requirements and installation for your site.
| Specification | DG03-A1F43 | DG03-A1F49 | DG03-A1F55 |
|---|---|---|---|
| Screen size | 43 inch | 49 inch | 55 inch |
| Operating system | Android 11.0 | ||
| Processor | Cortex-A55, four-core, 1.8 GHz | ||
| Chipset | RK3566 | ||
| Memory / storage | 2 GB RAM / 16 GB ROM | ||
| Backlight | ELED | ||
| Resolution | 1920 × 1080 (Full HD) | ||
| Aspect ratio | 16:9 | ||
| Response time | 8 ms | ||
| Refresh rate | 60 Hz | ||
| Viewing angle | 178° (H) / 178° (V) | ||
| Brightness | 350 cd/m² (typical) | ||
| Network | 2.4 GHz Wi-Fi; RJ45 LAN | ||
| Interfaces | 1 × RJ45, 1 × USB 2.0, 1 × USB 3.0, 1 × HDMI input, 1 × earphone, 1 × TF-card slot | ||
| Supported media | Video: WMV, AVI, FLV, RM, RMVB, MPEG, TS, MP4; audio: MP3, WMA, MP2, WAV; image: JPG, BMP, PNG, GIF | ||
| Speakers | 2 × 5 W | ||
| Power input | 100–240 V, 50/60 Hz | ||
| Maximum consumption | ≤50 W | ≤80 W | ≤90 W |
| Standby consumption | ≤4 W | ||
| Operating environment | 0°C to 50°C; 20% to 80% operating humidity | ||
| Product dimensions (H × L × W) | 1780.6 × 578.4 × 400 mm | 1805 × 665.4 × 450 mm | 1850 × 729.4 × 450 mm |
| Net weight | 38 kg | 45 kg | 49 kg |
