ZKDigimax DG01-A5 outdoor transparent LED screens for glass façades, windows and commercial displays. IP65 protection, 30–80% transparency and 1,000 × 1,000mm panels.

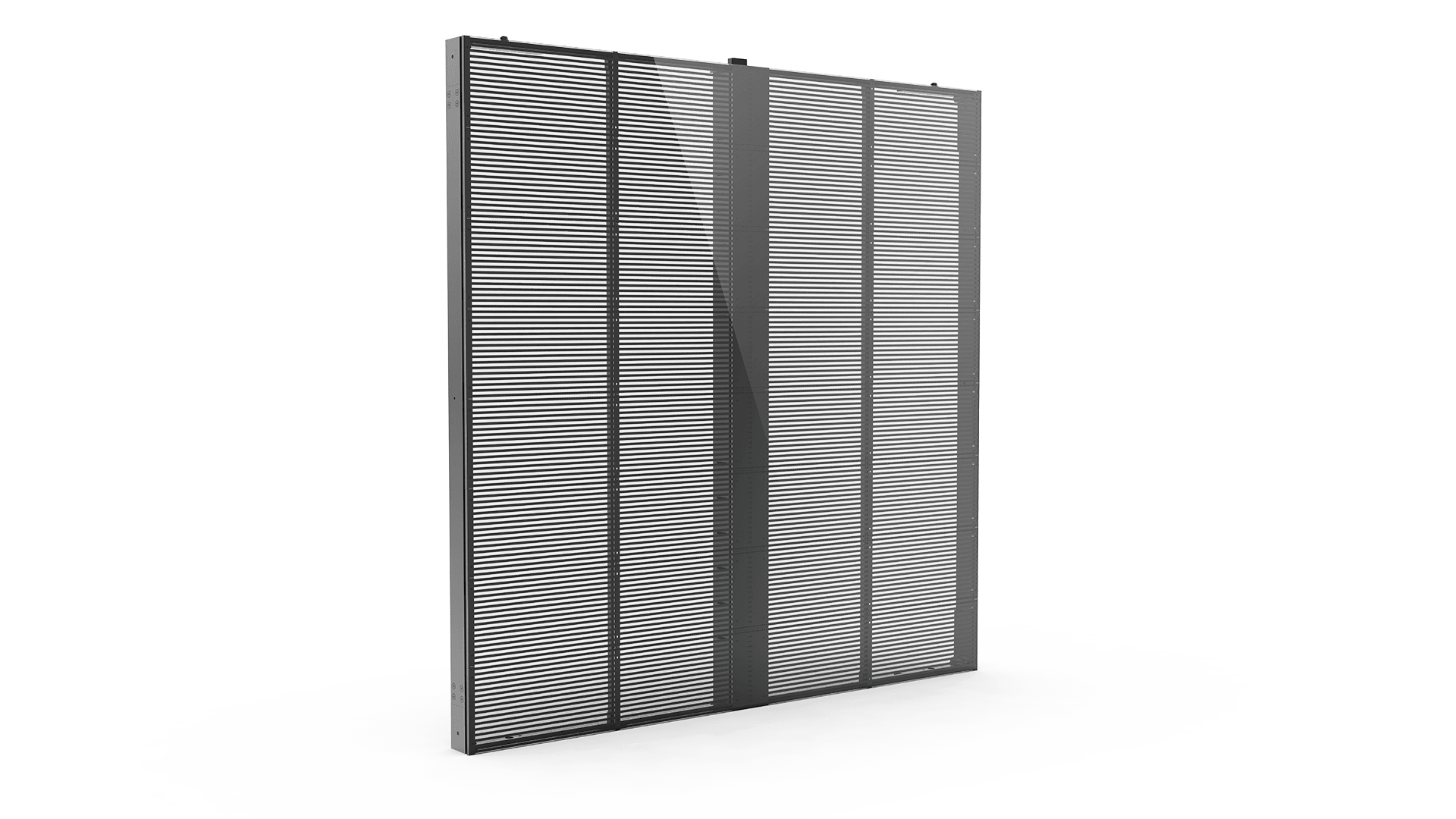

The ZKDigimax DG01-A5 Outdoor Transparent LED Display brings a clear, high-impact digital layer to glass façades, display windows and commercial exteriors without turning the architecture into an opaque billboard. Built for outdoor visual communication, the series combines transparent LED construction with IP65 protection, a slim 1,000 × 1,000mm cabinet format and tool-free installation.

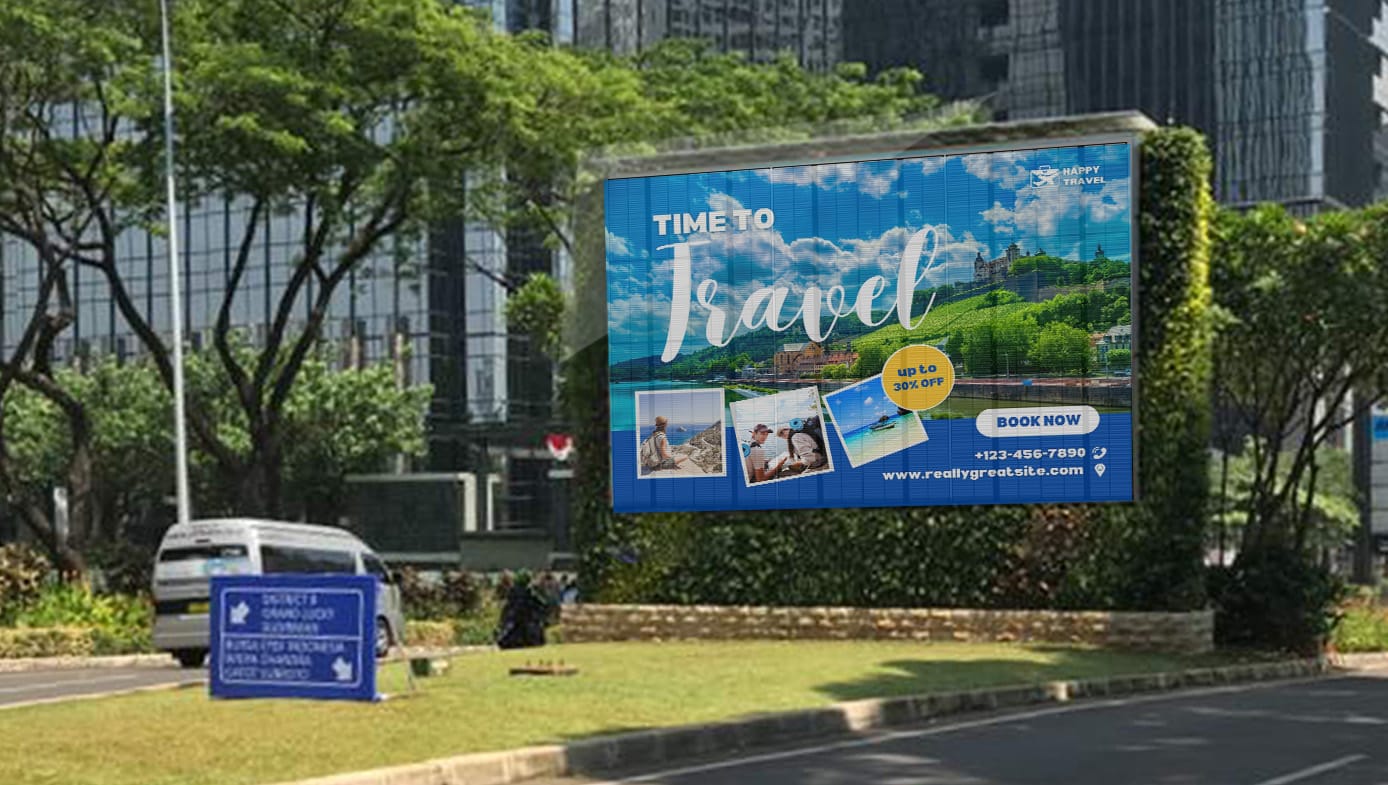

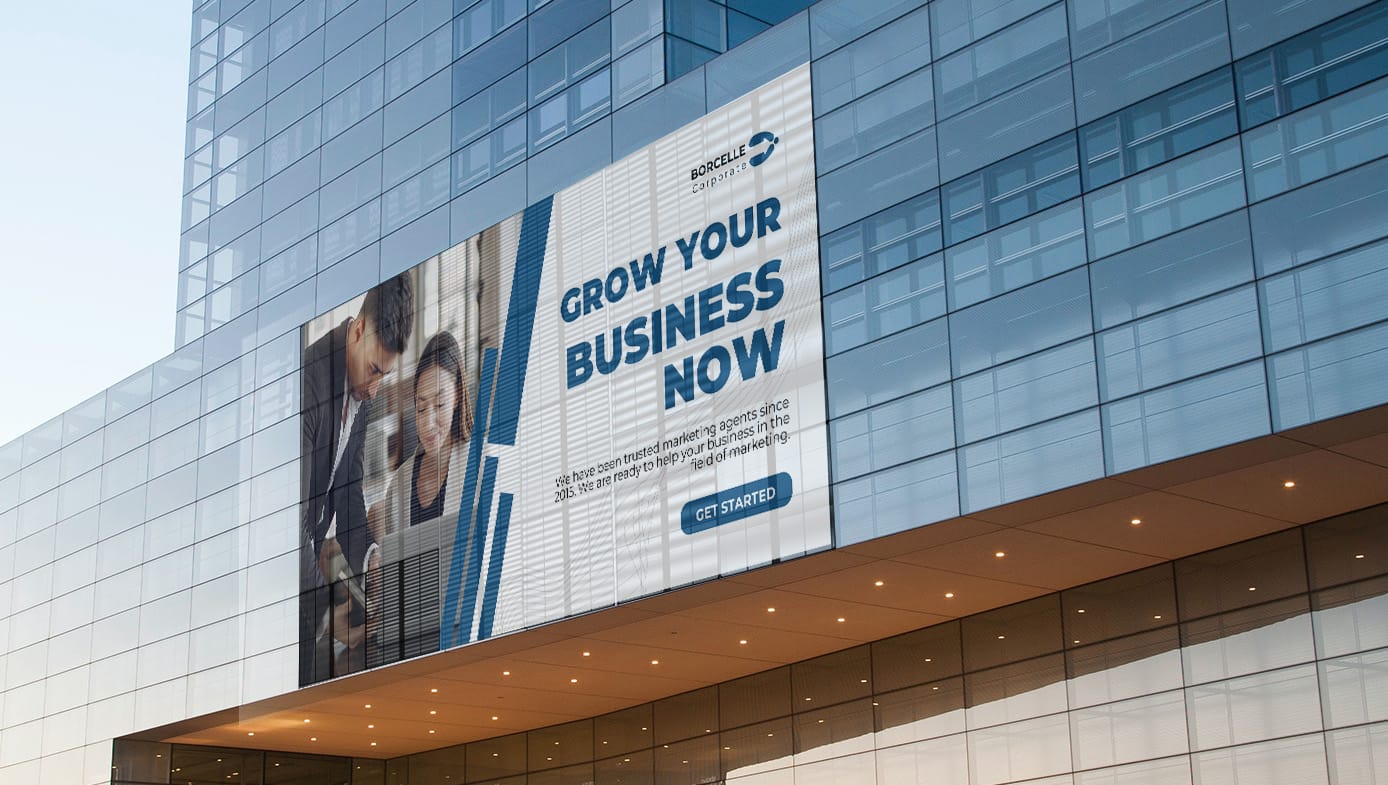

It is a strong fit for retail storefronts, glass curtain walls, office buildings, museums, public-facing venues and commercial sites where the screen needs to attract attention while preserving views, daylight and the character of the building. Use it for brand campaigns, product showcases, promotional content and dynamic building media.
The DG01-A5 range is available in four model options: DG01-A5P8-12, DG01-A5P15-15, DG01-A5P15-31 and DG01-A5P31-31. Transparency ranges from 30% to 80%, depending on the selected model, allowing the display design to be matched to viewing distance, content requirements and the amount of light or visibility required through the installation.
Every model uses a 1,000 × 1,000mm panel and front-and-rear maintenance access. The system’s tool-free installation supports efficient assembly, while the lightweight cabinet design helps reduce handling demands during installation and service.
The DG01-A5 has an IP65 rating and a full V0 fire-retardant grade. Its cabinet frame uses 2mm cold-rolled galvanised steel sheet, with a stated operating temperature range of -40°C to +80°C. These specifications make it suitable for appropriately engineered outdoor deployments where weather protection, site structure, electrical design and content operation are considered together.
Brightness is available up to 10,000cd/m² across the range, while the LED display is specified for a 100,000-hour service life. The system is noise-free in operation and supports current driving with an AC100–240V, 50/60Hz input.
Choose the pixel pitch and transparency level around the audience, mounting height and programme content. DG01-A5P8-12 provides the finest pitch in the series and 30% transparency, while the P15 and P31 options provide 60% or 80% transparency choices for larger-format façade and window applications. NZTeco can help you assess the display area, sightlines, content resolution, control system and installation environment before specifying a solution.
Explore our ZKDigimax LED display range and the wider ZKDigimax range. For a DG01-A5 proposal, technical review or project pricing, contact NZTeco with your façade dimensions, installation location and intended viewing distance.
The DG01-A5 series is compatible with ZKDigimax ScreenDirect CMS, giving your team a practical way to schedule and manage display content once the project has been commissioned. Build content around the screen’s physical resolution and the audience’s normal viewing path: concise messages, strong contrast and clear brand assets are especially effective for façade and window installations. Content should be reviewed at the intended viewing distance and in representative daylight conditions before final deployment.
For dependable results, treat the LED display as part of the complete project rather than a standalone panel purchase. Confirm mounting load paths, access for front or rear servicing, mains distribution, data routing, environmental exposure and commissioning requirements at the design stage. NZTeco can work with your project team to align the display selection, ScreenDirect CMS workflow and supporting hardware with the site.
| Specification | DG01-A5P8-12 | DG01-A5P15-15 | DG01-A5P15-31 | DG01-A5P31-31 |
|---|---|---|---|---|
| Pixel pitch (mm) | H8.3 / V12.5 | H15.625 / V15.625 | H15.625 / V31.25 | H31.25 / V31.25 |
| LED type | SMD3535/2727 | SMD3535/2727 | SMD3535/2727 | SMD3535/2727 |
| Resolution (W × H) | 120 × 80 | 64 × 64 | 64 × 32 | 32 × 32 |
| Cabinet size (W × H) | 1,000 × 1,000mm | 1,000 × 1,000mm | 1,000 × 1,000mm | 1,000 × 1,000mm |
| Panel weight | 14kg | 13kg | 12kg | 11kg |
| Panel thickness | 8cm | 8cm | 8cm | 8cm |
| Maximum consumption | 800W | 600W | 600W | 600W |
| Average consumption | 240W | 240W | 200W | 200W |
| Brightness | 5,000 / 10,000cd/m² | 5,000 / 10,000cd/m² | 4,000 / 10,000cd/m² | 4,000 / 10,000cd/m² |
| Transparency | 30% | 60% | 80% | 80% |
| Viewing angle (H / V) | ≥120° / ≥120° | ≥120° / ≥120° | ≥120° / ≥120° | ≥120° / ≥120° |
| Ingress protection | IP65 | IP65 | IP65 | IP65 |
| Service life | 100,000 hours | 100,000 hours | 100,000 hours | 100,000 hours |
| Maintenance | Front & rear | Front & rear | Front & rear | Front & rear |
Common specifications: AC100–240V, 50/60Hz input; current driving; 6,500–9,300K colour temperature; tool-free installation; 2mm cold-rolled galvanised steel sheet frame; full V0 fire-retardant grade; operating temperature -40°C to +80°C.
