Premium Armatura swing-barrier series with single- or dual-lane layouts, 650mm standard or 920mm optional lane widths, multi-method reader integration and advanced anti-clamping safety controls.

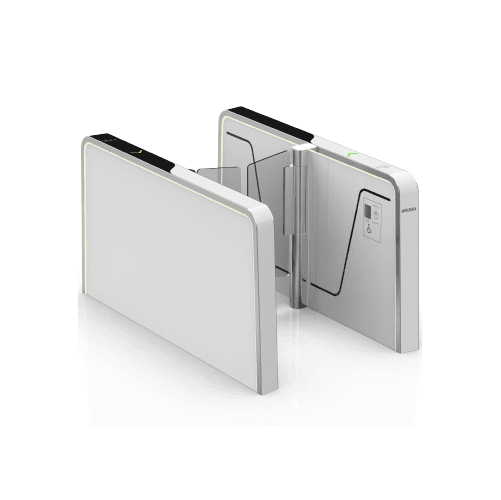

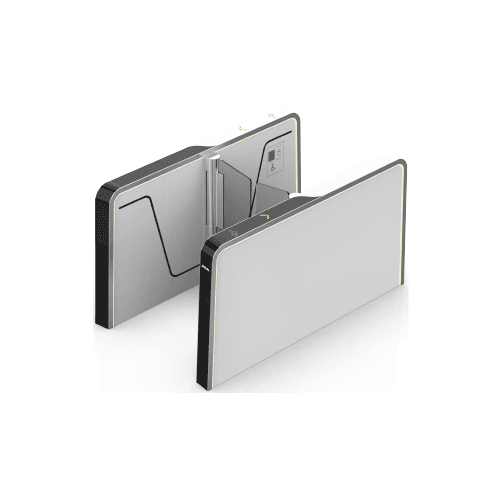

The Armatura Avalon Series is an aesthetics-focused swing-barrier entrance-control system available as the Avalon-S1000 single-lane unit and Avalon-S1200 dual-lane configuration. It is designed for sites that need controlled pedestrian access with a refined glass-and-steel appearance, flexible reader integration and configurable lane widths.

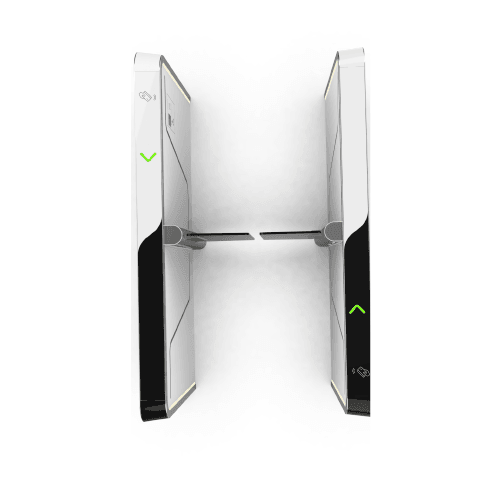

The standard lane is 650mm wide, with a 920mm option listed for accessibility-focused layouts. Avalon-S1000 is the single-lane unit; Avalon-S1200 provides a dual-lane arrangement. Barrier leaves are available in standard acrylic or optional tempered glass, with heights and widths selected for the project. The final layout should be designed around required circulation, accessibility and evacuation routes.
Avalon supports under-mount, top-mount and side-mount authentication configurations. Listed options include RFID, QR code, mobile credentials, fingerprint, facial recognition and palm recognition, with some options dependent on the selected configuration. Top mounting supports external facial-recognition terminals, while side mounting is available for RFID, QR and mobile credential readers.
For a complete solution, use compatible EP20 Series readers, an OmniAC30 biometric terminal, and an AHDU-1260 controller where the project calls for an Armatura controller.

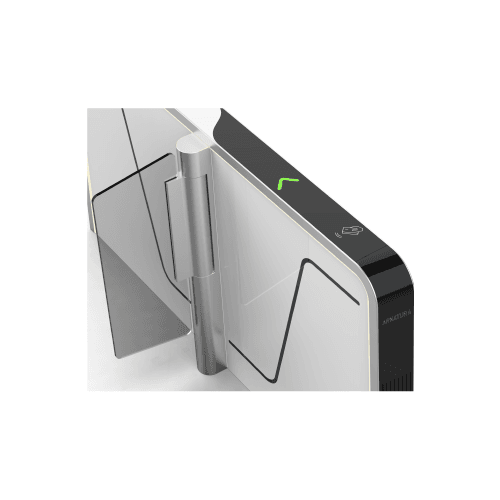

The system uses a German-made DC brushless motor with listed open/close timing of 0.3 to 0.6 seconds, depending on leaf size. A mechanical clutch supports anti-panic and anti-collision operation, while 12 pairs of matrix-layout infrared sensors, current detection and safety-force sensing help support anti-clamping and presence detection. The manufacturer lists anti-tailgating and pass-memory functions in the system controller.
Avalon has an IP33 rating and is described by the manufacturer for indoor use. It should not be treated as a weatherproof external barrier. The chassis combines tempered glass and high-carbon steel; the standard lid is black-and-white tempered glass, and the chassis colour is white as standard with customisation available. Installation needs a flat, level finished floor, suitable fire-alarm interface and a project-specific review of safety, accessibility and local compliance.
Contact NZTeco for a site-appropriate Avalon configuration, reader placement, accessible lane design, controller selection and installation quote.
| Specification | Avalon Series |
|---|---|
| Models | Avalon-S1000 single lane; Avalon-S1200 dual lane |
| Lane width | 650mm standard; 920mm optional accessibility-focused width |
| Barrier movement | Swing |
| Motor | German-made DC brushless motor |
| Open/close timing | 0.3–0.6 seconds, depending on leaf size |
| Movement accuracy | ≤1.5° per movement |
| Clutch | Mechanical clutch for anti-panic / anti-collision |
| Standard lid | Black-and-white tempered glass |

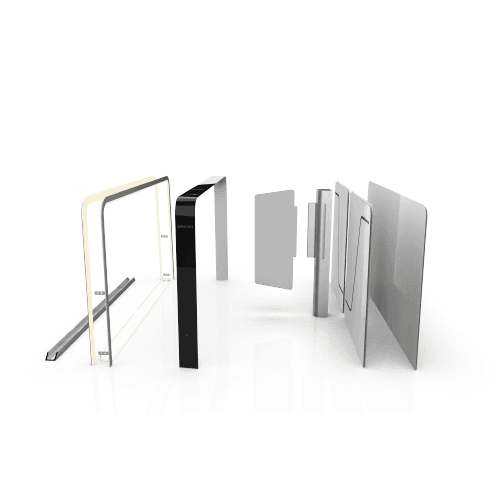

| Chassis | Tempered glass and high-carbon steel; white standard, customisable |

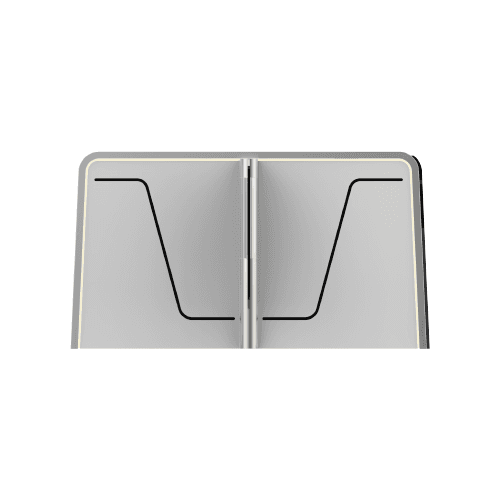

| Barrier leaves | Acrylic standard; tempered glass optional; multiple leaf sizes available |
| Authentication mounting | Under, top and side mount options |
| Credential options | RFID, QR code, mobile credentials, fingerprint, facial recognition and palm recognition; configuration dependent |
| IR sensors | 12 pairs, military-grade matrix layout |
| Controller communication | Fire-alarm relay, RS485, RS232 standard; TCP/IP optional |
| Controller | Advanced servo controller; AHDU-1260 / AHDU-1460 optional |
| Flow rate | RFID/QR/mobile 30/min; fingerprint 20/min; face/palm 15/min; emergency 60/min |
| Power | 100–240VAC, 50/60Hz; 40VA standby, 200VA operation |
| Noise | Less than 60dB |
| MCBF / MTTR | 30 million / less than 60 minutes |
| Operating environment | -20°C to 60°C; 95% RH non-condensing; IP33 indoor use |
| Safety | Infrared, mechanical and current-detection anti-clamping; power-off fail-safe and emergency escape |
| Software | Armatura One |
