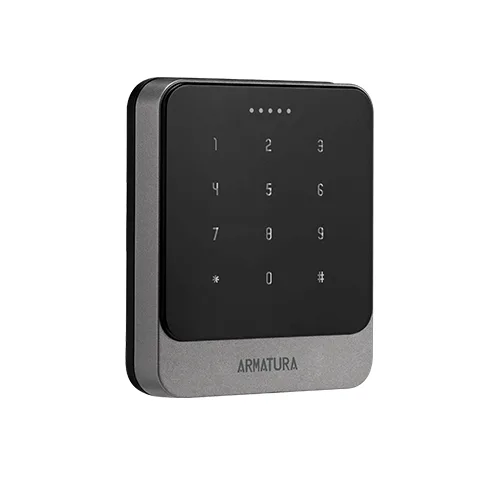

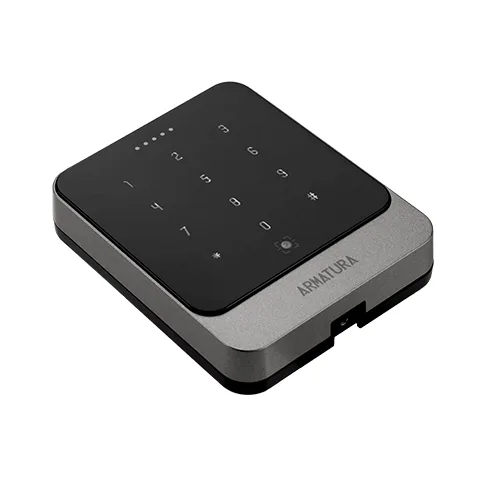

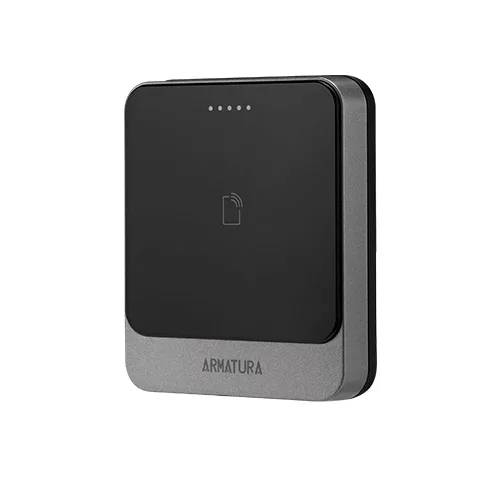

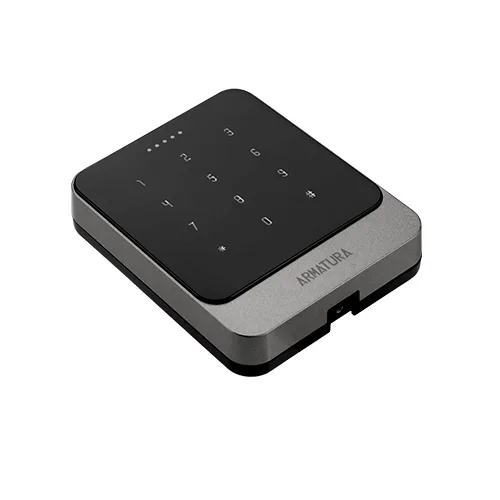

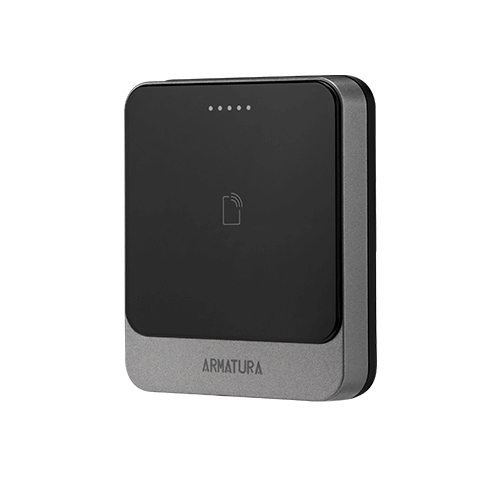

The Armatura EP20C Series are compact, IP68-rated RFID access readers supporting 125kHz & 13.56MHz card types, mobile credentials via Bluetooth & NFC, and optional QR code or PIN access. Available in four variants, these readers combine high durability with strong encryption, flexible authentication, and modern design aesthetics for indoor or outdoor use.
The EP20C Series delivers robust, secure, and flexible access control with advanced mobile and QR code compatibility in a vandal-proof, weather-resistant design.
| Specification | EP20C | EP20CK | EP20CQ | EP20CKQ |
|---|---|---|---|---|
| Keypad | No | Yes | No | Yes |
| QR Code Scanner | No | No | Yes | Yes |
| Mobile Credentials | Supported via Armatura ID App (NFC & BLE) | |||
| QR Code Reading Distance | N/A | N/A | Up to 25cm | Up to 25cm |
| Communication | Wiegand, OSDP v2.2 via RS-485 | |||
| Supported Frequencies | 125kHz, 13.56MHz, 2.4GHz (BLE) | |||
| Card Format Support | Over 100 types incl. HID, MIFARE, Felica, LEGIC, etc. | |||
| Reader Protection | IK10 / IP68 | IK07 / IP68 | IK07 / IP68 | IK07 / IP68 |
| Temperature Range | -30°C to 70°C / -22°F to 158°F | |||
| Tamper Switch | Magnetic Tamper Detection | |||
| Power Supply | 9–24V DC | |||
| Housing Material | Polycarbonate UL94-V0 & UL746C (F1) | |||
| Mounting | Asian / European / Single-gang box compatible | |||
| LED & Audio Indicator | RGB LED + Buzzer (configurable via Armatura Connect) | |||
| Certifications | CE, FCC, RoHS3.0, UL294, IEC/EN 60839 Grade 4 | |||
| Dimensions (W×H×D) | 89.8 × 107.8 × 23.6 mm | |||
