The ZKTeco X10 is a waterproof standalone fingerprint access control terminal designed for doors, gates and outdoor access points. With fingerprint, RFID card and PIN verification, plus Wi-Fi, Bluetooth and ZKBio Zlink app support, it gives small businesses and multi-site users a practical cloud-connected access control option.

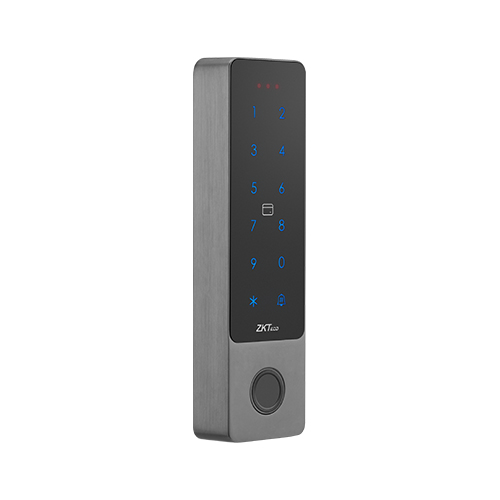

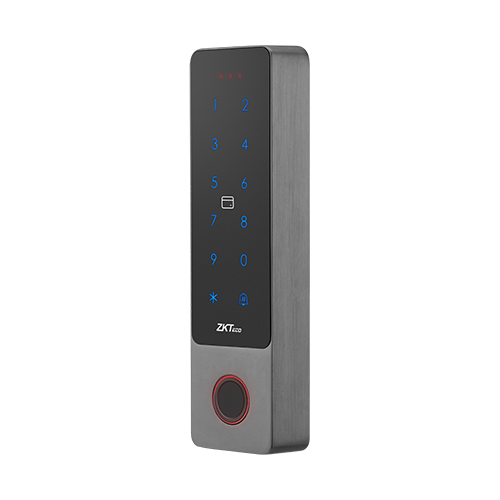

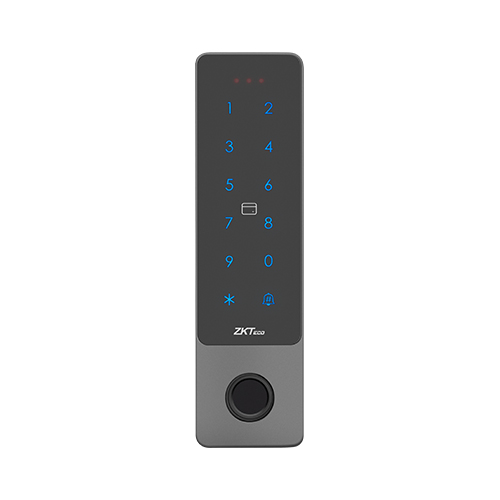

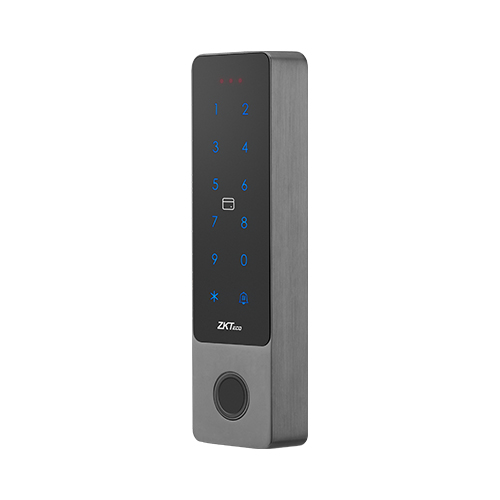

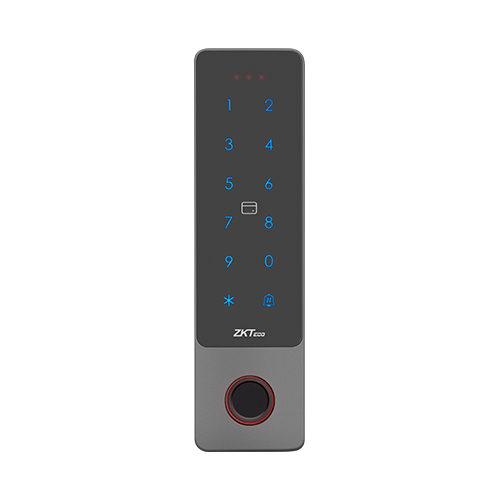

The ZKTeco X10 is a standalone fingerprint access control terminal built for practical door control without needing a large access control panel. It combines fingerprint authentication, RFID card access and PIN verification in a slim zinc alloy housing suitable for outdoor installations.
For small businesses, shared facilities, staff entrances and remote sites, the X10 gives users a simple way to manage access while still supporting modern cloud-connected operation through the ZKBio Zlink mobile app.
Supports fingerprint, RFID card and password access, helping sites choose the right method for staff, tenants or authorised users.
Connects with the ZKBio Zlink mobile app for cloud-based management, remote unlocking and cross-device synchronisation.
The zinc alloy housing and IP66 ingress protection make it suitable for doors and access points exposed to demanding conditions.
The X10 is ideal where a simple standalone access control terminal is preferred over a full controller-based system. It works well for smaller sites, single-door applications and locations where remote app-based access management is useful.

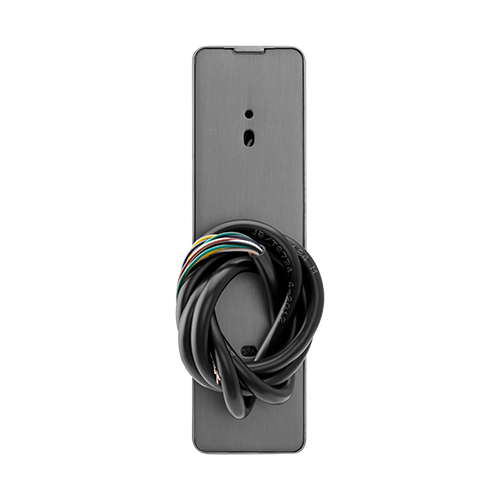

The X10 supports local access control wiring for an electric lock, door sensor, exit button and doorbell. It can also operate as a Wiegand reader, giving installers extra flexibility where the device needs to connect with other access control hardware.
When connected to ZKBio Zlink, the X10 supports remote door unlocking and cloud-based synchronisation. Fingerprint templates can be uploaded to cloud storage and synchronised across devices, making it useful for businesses managing more than one access point.
| Specification | Details |
|---|---|
| Model | X10 |
| Product Type | Standalone Fingerprint Access Control Terminal |
| Authentication Methods | Fingerprint / Card / Password via Physical Touch Keypad |
| User Capacity | 500 Users |
| Card Capacity | 500 Cards |
| Fingerprint Template Capacity | 500 Templates |
| Transaction Capacity | N/A – Cloud Sync via ZKBio Zlink |
| Password Length | 4 to 10 Digits, Factory Default 4 Digits |
| Fingerprint Verification Speed | < 0.3 Seconds |
| FAR | ≤ 0.0001% |
| FRR | ≤ 0.01% |
| Card Type | 125kHz ID Card and 13.56MHz IC Card, Standard |
| Communication | Wi-Fi IEEE 802.11 b/g/n 2.4GHz / Bluetooth 5.0 |
| Wiegand | 26–44 Bit Input × 1 |
| Access Control Interfaces | Electric Lock × 1, Door Sensor × 1, Exit Button × 1, Doorbell × 1 |
| Standard Functions | Access Control, Buzzer, Multiple Verification Methods, LED Status Indicators |
| LED Status Indicators | Orange: Programming; Green: Verification Successful; Red: Standby or Verification Failed |
| Power Supply | DC 12V 0.15A |
| Operating Temperature | -25°C to 60°C |
| Operating Humidity | 10% to 90% RH (Non-condensing) |
| Dimensions | 160 × 45 × 22 mm |
| Gross Weight | 0.46kg |
| Net Weight | 0.37kg |
| Supported Software | ZKBio Zlink Mobile App |
| Installation | Wall Mount |
| Housing Material | Zinc Alloy |
| Ingress Protection Rating | IP66 Waterproof and Dustproof |
| Tamper Detection | Light-Dependent Resistor (LDR) |
| Certifications | ISO14001, ISO9001, CE, Equivalent to RoHS |
| Factory ID | AC01-FL40H-01 |
| Typical Applications | Small Business Access Control, Outdoor Doors, Staff Entrances, Pedestrian Gates, Remote Access Management |
