ZKTeco SC800: The Waterproof RFID Access Control Terminal for Outdoor Application

ZKTeco SC800 Standalone RFID Access Control

ZKTeco SC800

The ZKTeco SC800 is a Linux-based and waterproof RFID Access Control terminal that is designed for outdoor application. This terminal adopts a metal midframe housing and a 2.5D tempered glass panel, supporting IP65 waterproof and IK04 vandal proof. Besides, SC800 has a 2.4 inch color screen and a hidden touch keypad to enhance the touchless unlocking experience.

Features

Linux-based and waterproof RFID Access Control terminal designed for outdoor application
Adopts a metal midframe housing and a 2.5D tempered glass panel, supporting IP65 waterproof and IK04 vandal proof
Features a 2.4 inch color screen for clear display of information

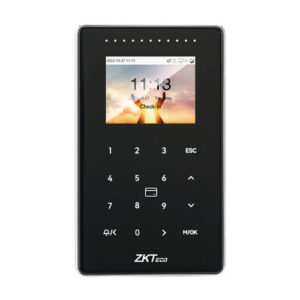

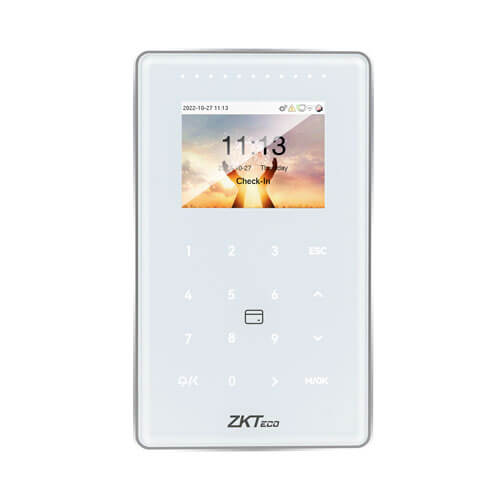

Has a hidden touch keypad to enhance the touchless unlocking experience
Supports various communication methods such as TCP/IP, Wiegand, RS485, OSDP (Ver2.1.7), RS232 (only for printer), Wi-FI (Optional)

The ZKTeco SC800 is a state-of-the-art RFID Access Control terminal that incorporates advanced technology for secure and efficient access control management.

The device is powered by a Linux-based operating system and is specifically engineered for outdoor use with its waterproof design and IP65-rated metal midframe housing. It also features a 2.5D tempered glass panel that provides durability and supports IK04 vandal proof.

The SC800 has a 2.4 inch color screen that provides clear visibility of information and enhances the user experience with its intuitive interface. Additionally, the device features a hidden touch keypad that enhances the touchless unlocking experience.

The device is equipped with a multi-tech RFID module that supports various types of RFID cards including HID Prox and HID iclass Multi-Tech RFID Module. It offers an impressive card capacity of up to 50,000, expandable to 100,000.

The SC800 also has an extensive log capacity that can store up to 200,000 logs, with an optional upgrade to 1,000,000. This allows for easy tracking and management of access control events.

In addition to its advanced security features, the SC800 also offers flexible communication options with its support for various communication methods such as TCP/IP, Wiegand, RS485,

Specifications

Feature	Specification
Display	2.4 inch TFT LCD Color Screen
Operation System	Linux
Card Capacity	50,000 (Optional: 100,000)
Logs Capacity	200,000 (Optional: 1000,000)
RFID	Standard Module: ID Optional Multi-Tech Card Module: Module 1 Support ID&IC& DESFire EV1/EV2; Module 2 Support ID&IC& DESFire EV1/EV2&Feliac&Legic&HID Prox; Module 3 Support ID&IC& DESFire EV1/EV2&Feliac&Legic&HID Prox&HID iclass;
Communication	TCP / IP, Wiegand, RS485, OSDP (Ver2.1.7), RS232 (only for printer), Wi-FI (Optional)
Access Control Interface	3rd Party Electric Lock, Door Sensor, Exit Button, Alarm, Doorbell
Auxiliary Interface	1 AUX input
Hardware	1GHz Dual Core CPU, DDR2 64M, Flash 256M
Keypad	Hidden Touch Keypad
Wiegand Signal	Wiegand In / Out
Standard Functions	ID card, Web sever, Automatic Status Switch, Self-Service Query,DST, 9 Digit User ID, Scheduled Bell, Anti-passback, HTTPS, Protocol convert (AC push to TA push)
Optional Functions	Wi-Fi, Multi-tech Card Module, Printer
Power Supply	DC 12V 3A
Operating Temperature	-10°C to 55°C (14°F to 131°F)
Storage Temperature	-20°C to 60°C ( -4°F to 140°F)
Operating Humidity	10% to 90% RH
Dimension	1438519.8mm (LWD)
Supported Software	ZKBioAccess IVS

Downloads

Available Downloads:

Reviews

There are no reviews yet.

Be the first to review “ZKTeco SC800: The Waterproof RFID Access Control Terminal for Outdoor Application”

Categories: Standalone Devices, Time & Attendance Hardware, ZKTeco Access Control, ZKTeco Time & Attendance Tags: Access Control Ready, Linux OS, OSDP Support, Outdoor Ready, RFID Tag/Card/Fob, TCP/IP Network Support, Wiegand Support, Wireless Ready, ZKBio Time Compatible, ZKBioCV Security Compatible, ZKBioSecurity Compatible
