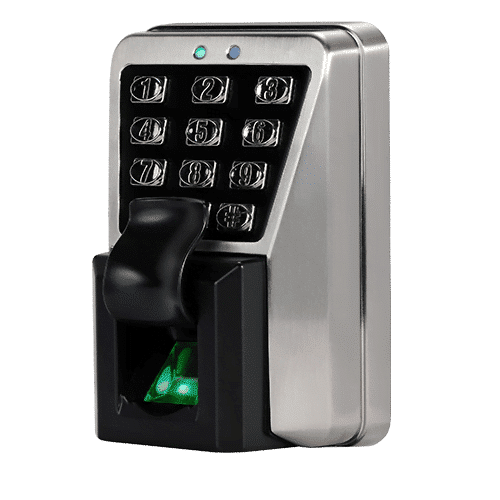

ZKTeco MA500: Advanced Biometric Access Terminal

ZKTeco MA500

An advanced biometric access control terminal that can be operated in standalone mode as well as network mode through TCP/IP or RS485 for software management. Equipped with a robust metal housing and durable backlit keypad, the MA500 is vandal-resistant and IP65 rated, making it suitable for installation in high traffic and harsh environments. It can connect with electric lock, door sensor, alarm, and exit button, and can also perform as a Wiegand fingerprint reader by any 3rd party control panels.

Features

  • Advanced biometric access control terminal
  • Operates in standalone mode as well as network mode through TCP/IP or RS485
  • Robust metal housing and durable backlit keypad for vandal resistance
  • IP65 rated for suitability in high traffic and harsh environments

Product Details

The ZKTeco MA500 is an advanced biometric access control terminal that can be operated in standalone mode as well as network mode through TCP/IP or RS485 for software management. Equipped with a robust metal housing and durable backlit keypad, the MA500 is vandal-resistant and IP65 rated, making it suitable for installation in high traffic and harsh environments. It can connect with electric lock, door sensor, alarm, and exit button, and can also perform as a Wiegand fingerprint reader by any 3rd party control panels.

The MA500 has a fingerprint capacity of 3,000 and a card capacity of 30,000. The logs capacity is 100,000. The RF card options include EM (Standard) / IC Card (Optional). The fingerprint sensor used is an optical sensor with protective cover. The algorithm version used is ZKFinger V10.0. The Wiegand signal supports input & output. The device supports ZKAccess3.5 software.

The power supply for the MA500 is DC 12V / 3A. It has an operating temperature range of unspecified values in my sources and an operating humidity range of unspecified values in my sources. The dimensions of the MA500 are unspecified values in my sources (LWH).

In summary, the ZKTeco MA500 is an advanced biometric access control terminal that can be operated in standalone mode as well as network mode through TCP/IP or RS485 for software management. Equipped with a robust metal housing and durable backlit keypad, the MA500 is vandal-resistant and IP65 rated, making it suitable for installation in high traffic and harsh environments. It can connect with electric lock, door sensor, alarm, and exit button, and can also perform as a Wiegand fingerprint reader by any 3rd party control panels.

Specifications

FeatureSpecification
ModelMA500
SoftwareZKAccess3.5
SDKNew PULL SDK
Fingerprint SensorOptical sensor with protective cover
Algorithm VersionZKFinger VX10.0
Fingerprint Capacity3,000
Card Capacity30,000
Log Capacity100,000
RF CardEM(standard)/Mifare(optional)
Authentication MethodFP only, RF only, PIN only, FP/RF/PIN, PIN&FP, PIN & RF
Access Control InterfaceElectric lock, Door sensor, Alarm, Exit button
CommunicationTCP/IP, RS485
Wiegand SignalWiegand out
Ingress Protection RateIP65
Power Supply12VDC 3A
Operating Temperature0°C - 45°C
Dimensions (W×H×D)83mm×127.5mm×74mm

Downloads
