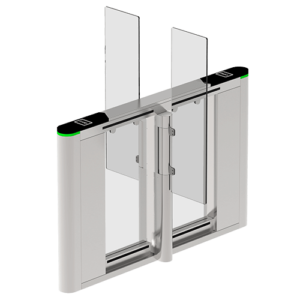

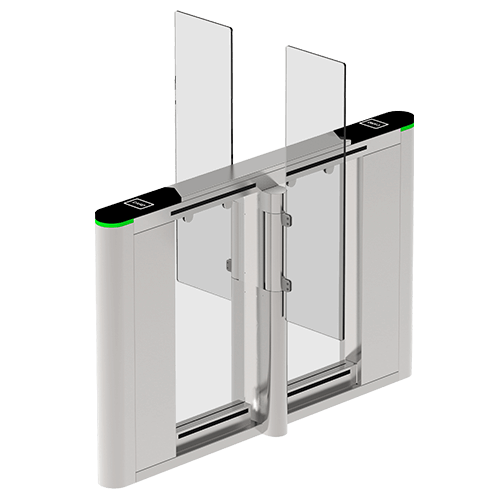

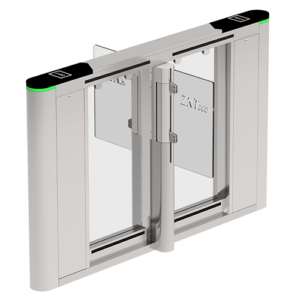

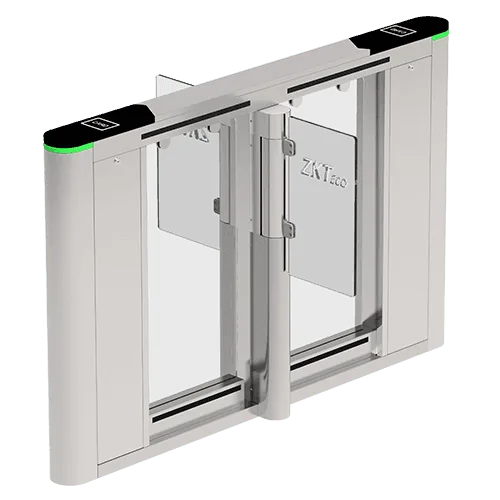

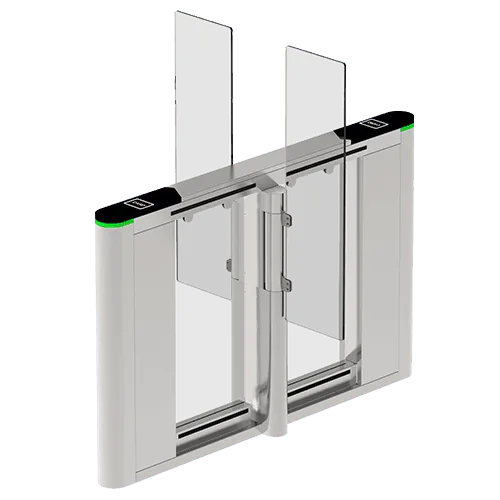

The ZKTeco SBTL8200 Series is the additional-lane speed gate designed to pair with the SBTL8000 series for multi-lane swing barrier installations. Servo motor drive opens lanes in under 1.2 seconds (under 0.8 seconds with mid-height panels), with 10 pairs of infrared sensors for tailgate detection. SUS304 stainless steel covers, acrylic barrier panels, and a modular reader panel that swaps with a pull and plug.

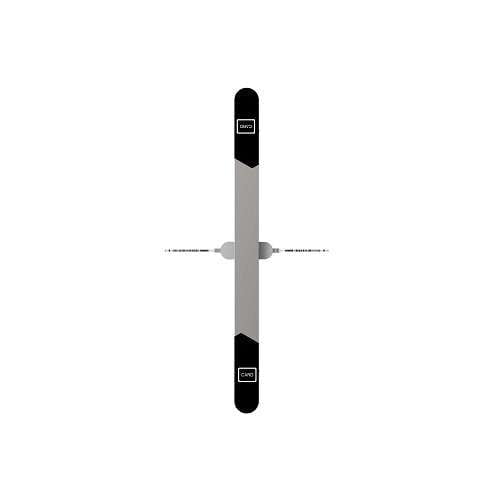

The SBTL8200 Series is the additional-lane swing barrier in ZKTeco’s SBTL8000 family. Pair it with an SBTL8000 master to build multi-lane corporate reception, transit and event entries. The modular reader panel design lets installers integrate or swap reader heads by pulling and plugging the panel rather than drilling new holes in the cabinet top.
| Feature | Specification |
|---|---|
| Power Requirements | AC 100-120V / 200-240V, 50/60Hz |
| Working Temperature | -28°C to 60°C |
| Working Humidity | 20% to 95% (Non-condensing) |
| Working Environment | Indoor |
| Speed of Throughput | Maximum 40/minute |
| Lane Width (mm) | 660mm (optional ≤ 920mm), high: 1200mm (optional ≤ 1500mm) |
| Footprint (mm*mm) | 1600 * 870 (mm) |
| Dimension (LWH) | 1600 * 120 * 1200 (mm) |
| Dimension with Packing (LWH) | 1700 * 300 * 1130 (mm) |
| Net Weight (kg) | 86 kg |
| Weight with Packing (kg) | 100 kg |
| Cabinet Material | SUS304 Stainless Steel |
| Lid Material | SUS304 Stainless Steel + Acrylic |
| Barrier Material | Acrylic (optional: Tempered Glass) |
| Barrier Movement | Swing |
| Emergency Mode | Yes |
| Security Level | Medium |
| MCBF | 10 million |
| Warranty | 1 year |
