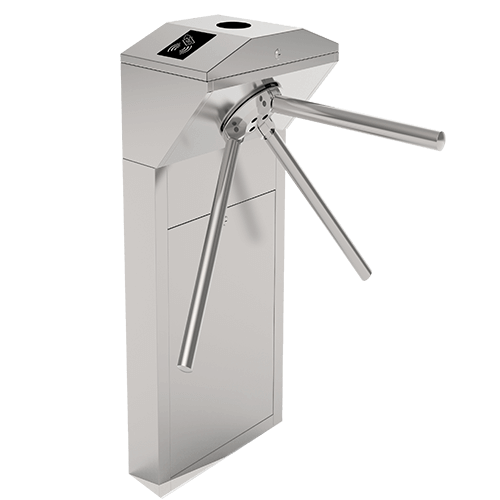

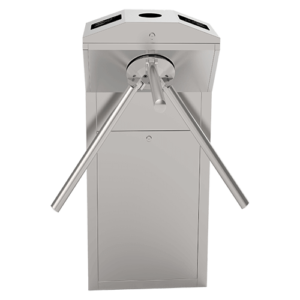

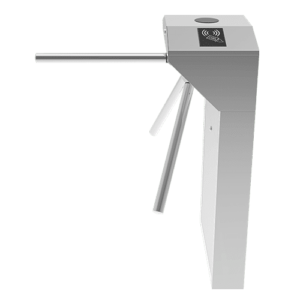

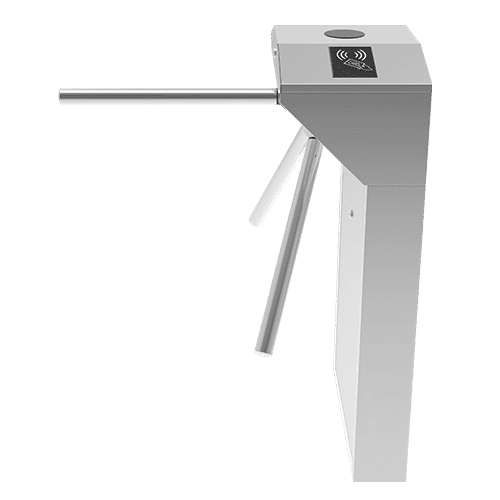

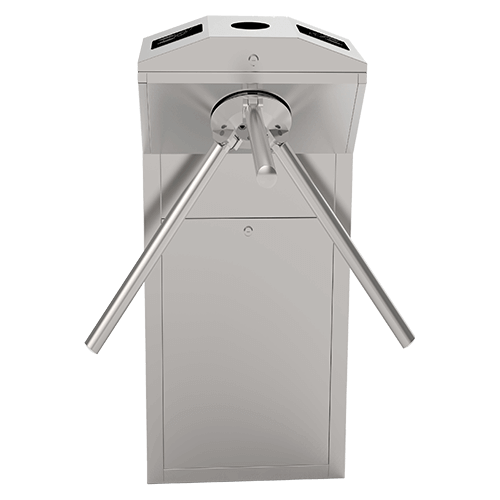

ZKTeco TS1000 Pro Series

A single-lane tripod turnstile series designed for smooth and silent operation and energy efficiency. It’s made of stainless steel which makes it highly durable.

Features

High Security
User-Friendly Interface
Flexible Connectivity Options

Enquire Now

Product Details

Description
Specifications
Downloads

Specifications

Feature	Specification
Power Requirements	AC 100V to 120V or 200V to 240V, 50/60Hz
Power Consumption	Running: 18W, Standby: 6W
Working Temperature	-28°C to 60°C
Working Humidity	5% to 80% (Non-condensing)
Speed of Throughput	RFID: Maximum 30/minute, Fingerprint: Maximum 25/minute
Lane Width (mm)	500 mm
Footprint (mm*mm)	520 * 810 mm
Dimension (LWH)	520 * 310 * 1010 mm
Dimension with Packing (LWH)	570 * 365 * 1080 mm
Net Weight (kg)	36 kg
Weight with Packing (kg)	50 kg
LED Indicator	Supports
Cabinet Material	SUS304 Stainless Steel
Lid Material	SUS304 Stainless Steel
Barrier Material	SUS304 Stainless Steel
Barrier Movement	Rotation
Emergency Mode	Supports
Security Level	Medium
MCBF	1 million
Options / Accessories	Counter, SUS316 Cabinet and Lid, Remote Control
Warranty	1 year

Downloads

SKU: 473 Categories: Tripod Turnstile, Turnstile Access Control
