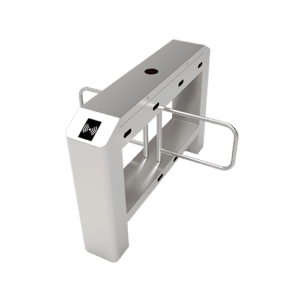

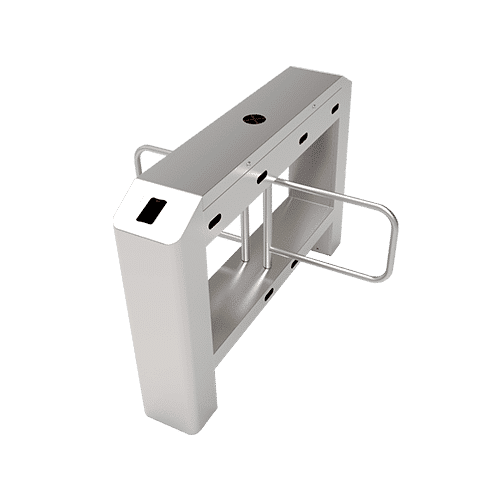

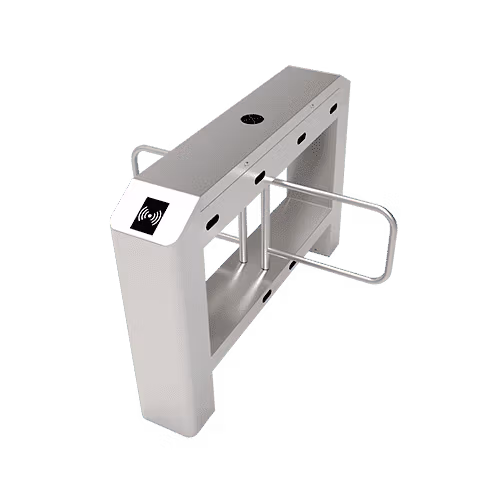

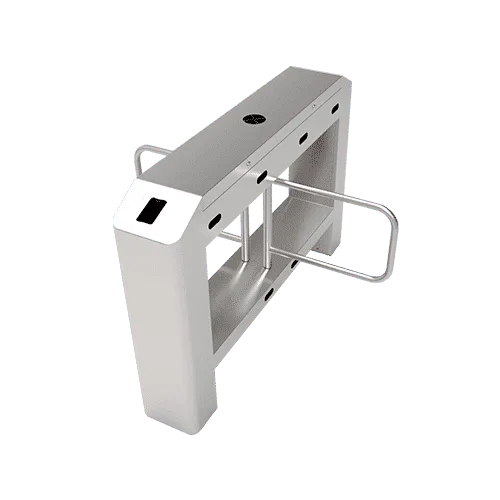

ZKTeco SBTL3200: Swing Barrier Turnstile

ZKTeco SBTL3200

The ZKTeco SBTL3200 is a durable swing barrier turnstile designed for smooth and silent operation. It’s made of stainless steel which makes it highly durable. The SBTL3200 is an elegant cost-effective entrance control system designed for high-traffic volume. The SBTL3200 series should work together with SBTL3000 series to build multiple lanes.

The SBTL3200 has several parameters including power requirements of AC 110V to 220V at 50/60Hz, working temperature range of -28°C to 60°C, working humidity range of 5% to 80%, speed of throughput with RFID at maximum 30/minute and fingerprint at maximum 25/minute.

Features

  • Supports RFID and fingerprint authentication
  • Maximum throughput of 30 people per minute with RFID
  • Maximum throughput of 25 people per minute with fingerprint
  • Made of stainless steel
  • Smooth and silent operation

Product Details

The ZKTeco SBTL3200 is a swing barrier turnstile for additional Lane series designed for smooth and silent operation and draws very little power. It’s made of stainless steel which makes SBTL3200 highly durable. The SBTL3200 is an elegant cost-effective entrance control system designed for high-traffic volume. The SBTL3200 series should work together with SBTL3000 series to build multiple lanes.

The turnstile has swing barriers made of SUS304 stainless steel, LED indicators, and emergency mode support. It has several parameters including power requirements of AC 110V to 220V at 50/60Hz, working temperature range of -28°C to 60°C, working humidity range of 5% to 80%, speed of throughput with RFID at maximum 30/minute and fingerprint at maximum 25/minute, lane width of 1050mm, footprint of 1250mm by 1500mm, dimensions of 1500mm by 260mm by 1000mm, net weight of 66kg, LED indicator support, SUS304 stainless steel cabinet material and lid material, SUS304 stainless steel barrier material, barrier movement swing, emergency mode support.

Specifications

FeatureSpecification
Power RequirementsAC110V / 220v, 50 / 60HZ
Working Temperature-28℃ to 60℃
Working Humidity5% to 80%
Speed of ThroughputRFID: Maximum 30 / minute
Fingerprint: Maximum 25 / minute
Lane Width (mm)1050 (mm)
Footprint (mm*mm)1250 * 1500 (mm)
Dimension (LWH)1500 * 260 * 1000 (mm)
Dimension with Packing (LWH)1640 * 400 * 1110 (mm)
Net Weight (kg)66 kg
Weight with Packing (kg)98 kg
LED IndicatorSupport
Cabinet MaterialSUS304 Stainless Steel
Lid MaterialSUS304 Stainless Steel
Barrier MaterialSUS304
Barrier MovementSwing
Emergency ModeSupport
Security LevelMedium
Warranty1 year
