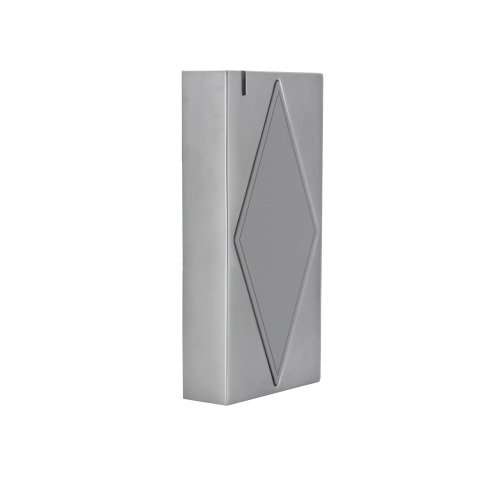

The ZKTeco MR100 and MR101 are IP66 metal-cased Wiegand card readers built for exterior doors, gates and warehouse loading bays. The MR100 is the full-size unit; the MR101 is the slim mullion version for narrow door frames. Tamper-protected, simple two-wire power and Wiegand 26/34 output. A clean drop-in for any controller-driven door.
The MR100/MR101 is the everyday exterior reader installers spec when the door has its own controller upstream and just needs a tough card reader at the wall. Metal housing, IP66 rating, and sensible Wiegand output keep wiring and procurement straightforward.
Behaviour and electrical specs are identical between the two. The choice is purely about the surface you are mounting on.
The MK-V/MK-H is a standalone unit. It makes its own access decisions and drives a relay directly. The MR100/MR101 is a “dumb” reader that needs a controller upstream (C2-260, Atlas, InBio etc.). Choose the MK-V/MK-H for one-door no-server installs; choose the MR100/MR101 when the door is already wired back to a panel.
| Feature | Specification |
|---|---|
| Model | MR100 / MR101 |
| Operating Voltage | MR100: 9-18V DC MR101: 9-24V DC |
| Operating Current | MR100: ≤ 25mA MR101: ≤ 35mA |
| Card Frequency | 125KHz / 13.56MHz |
| Card Reading Distance | 3 ~ 8cm |
| Wiegand Output | 26 / 34bits |
| Operating Temperature | - 40°C ~ 60°C |
| Dimension | 103 * 48 * 19mm |
| Operating Humidity | 10% ~ 85% |
| Weight | 300g |
| Ingress Protection Rating | IP66 |
| Wire Length | 45mm ± 10mm |
