ZKTeco ML100: Wireless IoT Fingerprint Lock

ZKTeco ML100: Wireless IoT Fingerprint Lock

ZKTeco ML100

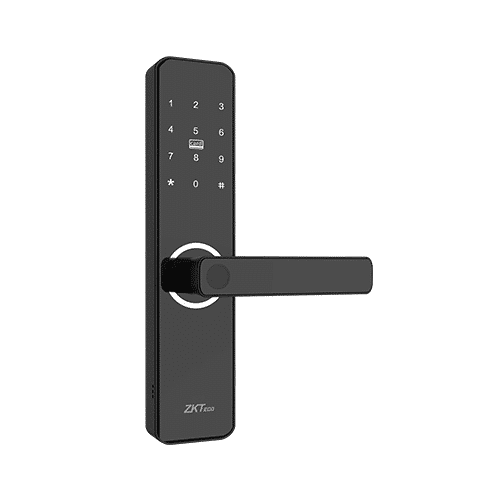

The ZKTeco ML100 is a wireless IoT lock that features fingerprint recognition technology, Wi-Fi connectivity, and multiple unlocking options. It provides secure and convenient access control.


  • Wi-Fi connectivity for remote unlocking and management
  • Fingerprint recognition technology
  • Multiple unlocking options (fingerprint, IC card, passcode)
View feature page
Available Downloads:

The ZKTeco ML100 is a wireless IoT lock designed with a European standard 5050 mortise and is compatible with ZSmart APP. This smart lock can connect to Wi-Fi, allowing you to remotely unlock, share passwords, trace records, and manage lock users and visitors via smartphone. In addition, this smart lock offers multiple ways of unlocking including fingerprint, IC card, and passcode.

In terms of technical specifications, the ML100 is made of aluminum alloy and has a user capacity of 300, a fingerprint capacity of 100 (administrator: 10, normal user: 90), a passcode capacity of 100 (administrator: 10, normal user: 90), and an IC card capacity of 100 (only normal user: 100). It uses a capacitive fingerprint sensor and is powered by 4 x AA alkaline batteries (not included). The lock operates at temperatures ranging from -25°C to 55°C and is compatible with door thicknesses ranging from 35-60mm.

Additional information

Weight1.6888 kg
Dimensions345 × 175 × 150 cm


MaterialHousing (Aluminum Alloy)
MortiseEuropean Standard 5050 mortise
Keyless Authentication MethodsSmartphone, Fingerprint, Passcode, IC Card
CommunicationWi-Fi (IEEE 802.11b)
User Capacity300
Fingerprint Capacity100 (administrator: 10, normal user: 90)
Passcode Capacity100 (administrator: 10, normal user: 90)
IC Card Capacity100 (only normal user: 100)
Fingerprint SensorCapacitive Fingerprint Sensor
Power Supply4 × AA Alkaline Battery (not included)
Battery LifeUp to 1 year
Backup Power InterfaceMicro-USB
Door Thickness35mm to 60mm
Dimensions (L*W*D)265*60*22 (mm)
Operating Temperature-25°C to 55°C
Operating HumidityUp to 90% RH
Color OptionsBlack
Supported Software / Mobile AppZSmart
