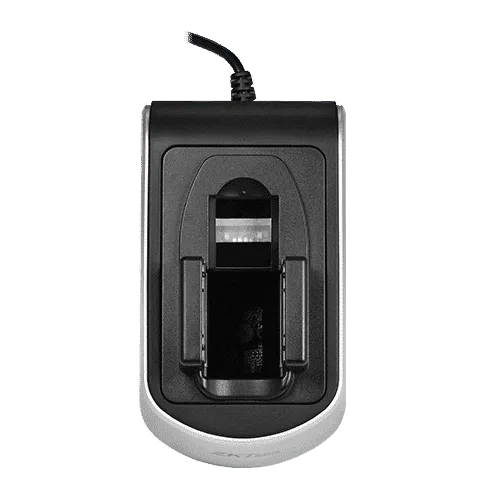

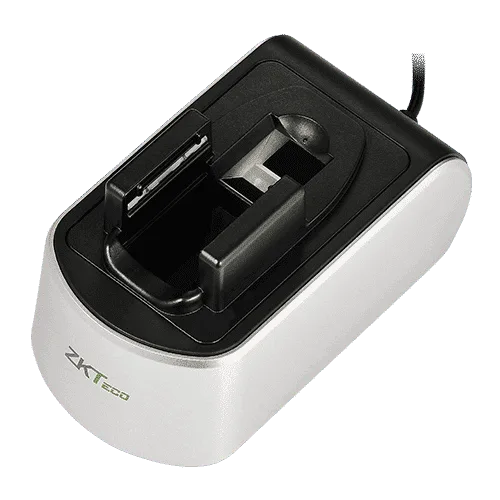

ZKTeco FPV10R

FPV10R is a fingerprint and finger vein combined scanner. In mathematics, it has index level accuracy improvement. With a single scanning, it does two verification of both fingerprint and the finger vein. It has the capability to scan both surface signature of the skin (fingerprints) and the inner side (finger vein), and offers reliable solution to block fake attempts to the system.

Material	Optical
Effective Collection Area	13.24*15.7mm
Image Size	256360 pixel / 240320 pixel
Image Resolution	500dpi / 300dpi
Gray Level	256
Interface Socket	USB Type A
Communication	USB 2.0 / USB 1.1
Operating System	Windows / Linux / Android
Power Voltage	4.8V ~ 5.5V(USB)
Operating Environment	-20 °C ~ +50 °C; 90% r.h.
Dimension	114.665.863.4mm(LWTH)

Specifications

Downloads

Reviews

There are no reviews yet.

Be the first to review “ZKTeco FPV10R”

SKU: 247 Categories: ZKTeco Accessories, ZKTeco Biometric Modules Tag: Fingerprint Recognition
