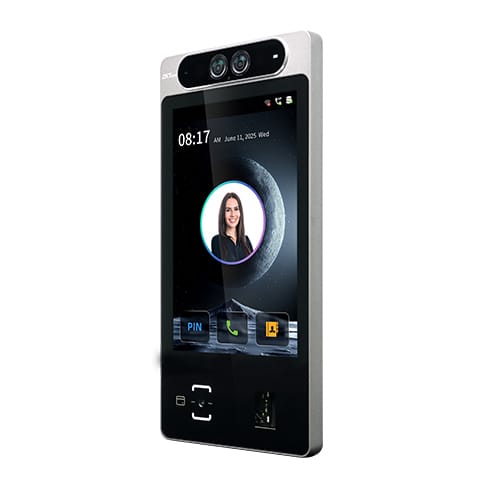

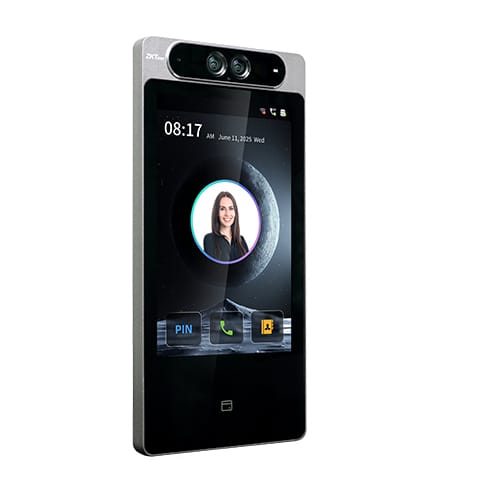

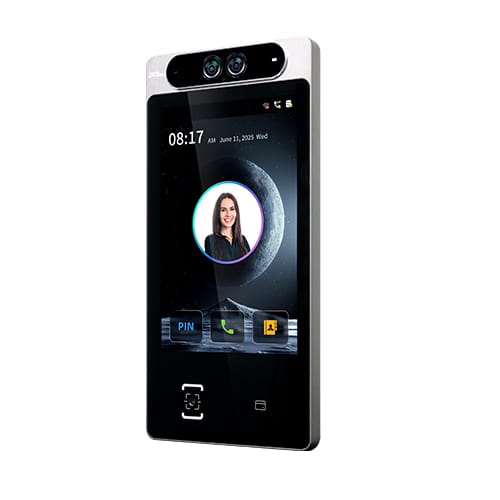

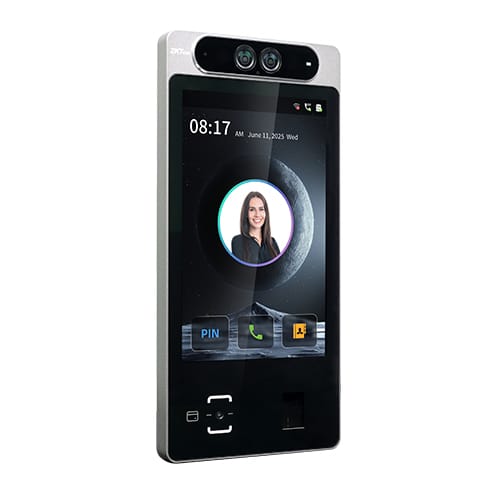

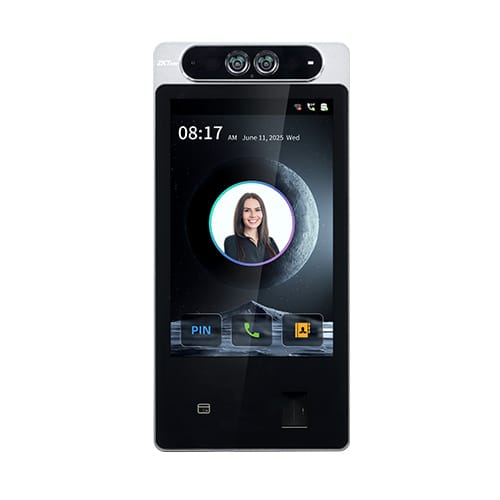

The ZKTeco FaceTima 8 is an 8-inch Android biometric access control terminal with face, fingerprint, RFID and QR authentication, plus SIP video intercom.
Palm, HID Prox / iClass and cloud AI features are marked coming soon. Enquire for the supplied reader configuration and pricing.
The ZKTeco FaceTima 8 combines facial authentication, fingerprint, RFID and QR code access in an Android 14 terminal. Its large touchscreen gives staff and visitors a clear point of interaction at a controlled entrance, while built-in video intercom supports communication with a compatible indoor monitor or SIP system. It suits offices, commercial buildings, education sites and industrial entrances where several access methods need to work within one managed system.
The terminal holds up to 100,000 users and face templates, 30,000 fingerprint templates, 100,000 card templates and two million transactions. This capacity allows larger enrolment databases and access records to be held at the terminal. Choose the authentication methods and access rules that suit the people using the entrance, rather than relying on a single credential type.
Facial authentication operates at a specified distance of 0.3–1.2 m, with a manufacturer authentication time below one second. The binocular camera provides a 120° field of view, and the anti-spoofing algorithm is designed to defend against printed-photo and video attacks. These capabilities support daily access control; placement, lighting and commissioning still matter to the finished installation.
The dual-frequency card module supports 125 kHz ID and 13.56 MHz IC / DesFire credentials. Static and dynamic QR code authentication are supported, with dynamic QR credentials provided through the ZKBio Zexus mobile app. Confirm the reader configuration, card technology and credential workflow in the quotation. Official gallery images show different reader configurations and should not be treated as a list of included hardware.
FaceTima 8 is compatible with ZKBio CVSecurity, with version 6.8.0 listed in the datasheet. Access levels, groups, holidays, anti-passback and duress mode support managed door access. Record queries and a tamper-switch alarm provide further operational information.
The Android LCDP and AC PUSH SDK provide routes for application integration. Any custom application needs to be assessed against the supported platform and project requirements. Confirm software versions, licences and mobile services when specifying the complete system. These are separate from the terminal’s published hardware capabilities.
Gigabit Ethernet and dual-band 2.4 GHz / 5 GHz Wi-Fi give installers a choice of network connection. Power can be supplied at 12 V DC, 3 A, or through IEEE 802.3at PoE+. Check the PoE equipment and available power budget during system design, including the separate requirements of connected locks and accessories.
A 4G module is optional. Confirm that it is included in the selected configuration and check carrier, SIM and service requirements before using cellular connectivity. Wiegand input/output and RS-485 support external reader integration; the RS-485 connection is specified for a ZKTeco reader.
The terminal supports SIP 2.0 video intercom as well as ZKTeco’s private protocol over TCP/IP. Its two microphones and speaker support conversation at the entrance. Confirm interoperability with the selected SIP equipment and the intended call workflow during commissioning.
IP66 ingress protection and IK07 impact resistance support outdoor and sheltered outdoor installations within the specified −30°C to +60°C operating range. Mounting location, sealing, cable entry and environmental exposure should be checked against the installation guide. Standard wall mounting is compatible with Asian gang-box and single gang-box formats; a compatible Rots-02 turnstile top-mount bracket is optional.
Palm authentication, the associated 20,000 palm-template capacity, HID Prox / HID iClass support and cloud-based AI capabilities are marked “coming soon” by ZKTeco. They are not presented as available features of this product. The second lock connection and external battery/DC/AC detection connections are reserved, so they should not be specified as usable outputs or monitoring functions.
Compare NZTeco’s standalone access devices and Green Label access control range. Enquire with NZTeco with your door layout, credentials, software and network requirements for configuration advice and a project quotation.
| Model | FaceTima 8 |
|---|---|
| Product type | Green Label multi-biometric access control terminal with video intercom |
| Authentication | Face, fingerprint, RFID, static and dynamic QR code; confirm supplied reader configuration |
| Operating system | Android 14.0 |
| Processor | 1.8 GHz quad-core |
| Memory / storage | 4 GB RAM / 64 GB ROM |
| SDK | Android LCDP; AC PUSH SDK |
| Display | 8-inch IPS TFT LCD colour multi-touch; 700 cd/m² |
| Camera | 2 MP binocular camera; 120° wide angle; manufacturer camera row specifies 1280 × 800 resolution |
| Card technology | Dual frequency: 125 kHz ID and 13.56 MHz IC / DesFire |
| Dynamic QR platform | ZKBio Zexus mobile app |
| User capacity | 100,000 |
| Face template capacity | 100,000 |
| Fingerprint capacity | 30,000 |
| Card capacity | 100,000 |
| Transaction capacity | 2,000,000 |
| Compatible software | ZKBio CVSecurity V6.8.0; ZKBio Zexus mobile app |
| Network | TCP/IP; RJ45 Gigabit Ethernet (1000M); dual-band Wi-Fi IEEE 802.11 ac/a/b/g/n, 2.4 GHz / 5 GHz |
| Cellular connection | 4G optional; confirm module, carrier and service compatibility |
| Video intercom | SIP 2.0 client; ZKTeco private protocol over TCP/IP |
| Face authentication distance | 0.3–1.2 m; human height 0.9–2.4 m |
| Face authentication time / modes | < 1 s; 1:1 and 1:N |
| Face algorithm / rates | ZKFace VX5630; FRR 1%, FAR 0.01% (manufacturer specifications) |
| Fingerprint sensor / time | Optical; ≤ 0.5 s |
| Fingerprint modes / algorithm | 1:1 and 1:N; ZKFingerprint V10.0 |
| Fingerprint rates | FAR 0.0001%, FRR 0.01% (manufacturer specifications) |
| Card reading distance | 1–5 cm |
| Access functions | Access levels, groups, holidays, duress mode, anti-passback, anti-spoofing, record query and tamper-switch alarm |
| Data transfer encryption | AES-256 for biometric credentials and personal information transfer |
| Reader interfaces | One RS-485 for ZKTeco reader; one Wiegand input and one Wiegand output |
| Door / alarm interfaces | One controlled lock connection; one door sensor, exit button, auxiliary input and alarm connection |
| Reserved connections | Lock 2 and external battery/DC/AC detection are reserved |
| Other interfaces | One USB 2.0 (for OTA), 12 V power output, reset button |
| Audio | Two microphones; one speaker |
| Power | 12 V DC, 3 A; PoE IEEE 802.3at (PoE+) |
| Protection | IP66 ingress protection; IK07 impact resistance |
| Operating temperature | −30°C to +60°C |
| Operating humidity | 10%–90% RH, non-condensing |
| Environment | Outdoor / sheltered outdoor; install and seal according to the installation guide |
| Dimensions | 277.9 × 134.9 × 34.3 mm |
| Gross weight | 2.3 kg |
| Mounting | Standard wall mounting: Asian gang-box / single gang-box; optional compatible Rots-02 turnstile top-mount bracket |
| Coming-soon features | Palm authentication and 20,000 palm templates; HID Prox / HID iClass; cloud-based AI capabilities |
