ZKTeco FA11M: High-Performance Face Capture Module

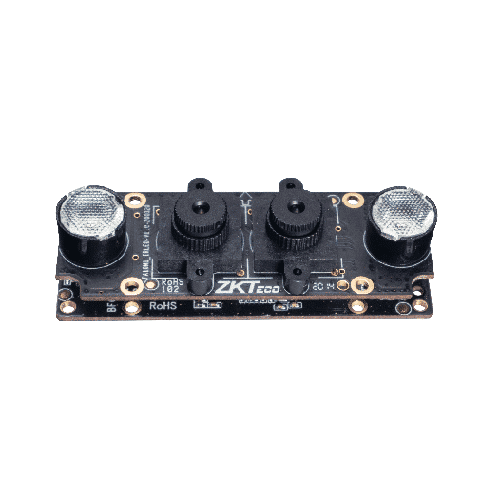

The ZKTeco FA11M is a high-performance face capture module that combines visible light and near-infrared cameras. It is equipped with binocular wide dynamic image sensors, an aspherical distortion-free camera, and near-infrared illumination lights[^1^][2]. The FA11M has a built-in 400MHz high-performance processor and supports USB interface power supply and communication[^1^][2]. It supports a variety of mainstream operating systems, including Windows XP, Windows 7, Windows 10 (32 and 64 bit), and Android 4.1 or higher[^1^][2].
- Combines visible light and near-infrared cameras[^1^][2]
- Equipped with binocular wide dynamic image sensors, an aspherical distortion-free camera, and near-infrared illumination lights[^1^][2]
- Built-in 400MHz high-performance processor[^1^][2]
- Supports USB interface power supply and communication[^1^][2]
- Supports a variety of mainstream operating systems[^1^][2]
The ZKTeco FA11M offers advanced security solutions for businesses of all sizes. With its modern design and interactive user interface, it is easy to use and provides a high level of security for access control.
Specifications:
| Type | Parameters | Value |
| Sensor | Sensor Model | HDR CMOS Sensor |
| Sensor Size | 1/2.7 inch |
| Sensor Type | Optical |
| Image Size (pixel) | 480 x 640 |
| Dynamic Range | 83dB |
| Max. Frame Rate | 12 fps |
| Lens Type | RGB | IR |
| Optical Wavelength | 440 to 650 nm | 840 to 860 nm |
| Field of View (FOV) | Diagonal = 45°, Horizontal = 28°, Vertical = 37° |
| Optical Distortion Rate | ≤1% |
| Lens Composition | Composed of 4-Plastic Lens and an IR-Filter (4P+1IR) |
| Recognition Distance | 40 cm to 80 cm |
| Interface | Host Communication | USB |
| External I/O | Digital I/O (Reserved) |
| Hardware | Operating Temp. Range | -10℃ to 55℃ |
| Storage Temp. Range | -20℃ to 80℃ |
| Operating System | Windows | Windows XP / Windows 7 / Windows 10 (32 and 64-bit) |
| Android | Android 4.1 or higher |
| Linux | Custom |
| ZKNIRFace SDK | Algorithm Function | 1:1, 1:N, Human Face Detection |
| Capacity | 6,000 templates |
| Accuracy | FRR = 1.41% when FAR = 0.001% |
| Recognition Time | <300ms (Quad-core Cortex-A9 up to 1.6GHz) |
| Algorithm Feature | Based on the Near-Infrared Facial Recognition Technology |
| ZKLiveFace SDK | Algorithm Function | 1:1, 1:N, Gender Classification, Age Estimation, Human Face Detection |
| Capacity | 10,000 Templates (max. 50,000) |
| Accuracy | FRR = 0.26% when FAR = 0.01% |
| Recognition Time | <400ms (Quad-core Cortex-A17 up to 1.8GHz) |
| Algorithm Feature | Based on the Visible Light Facial Recognition Technology, Good Face Angle Tolerance |
| Power Supply | Test Condition: T = 25℃ , VCC = 5.0V | Minimum | Standard | Maximum |
| Supply Voltage | 4.75V | 5.0V | 5.25V |
| Current | Active | – | 350mA | 400mA |
| Standby | – | 200mA | 220mA |
| Power Consumption | Active | – | 1.75W | 2.0W |
| Standby | – | 1.0W | 1.1W |
| Certifications | CE, FCC, RoHS |
