ZKTeco Bio31S

ZKTeco Bio31S

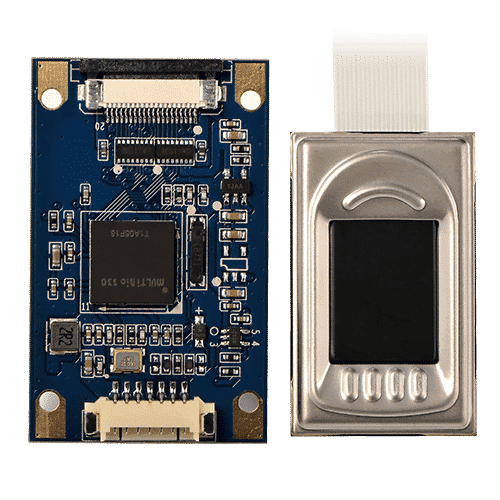

Bio31S is an advanced embedded electro-silicon fingerprint module developed by ZKTeco specialized for the system integration device.It adapts ZKTeco ZKFinger V10.0 fingerprint algorithm as core, and adapts high-performance ARM core processor with internationally top semi-conductor fingerprint sensor. It is an offline fingerprint module with ultra-high performance.

Product Details

Model NameBio31S
MaterialElectro-Silicon
CPU280MHz DSP
Flash32 MB
SoCRTOS
Encrypted Fingerprint DataYes
Power Consumption5V 200mA (normal operation); 5V 100mA (idle mode)
Fingerprint Liveness DetectionNo
LEDNone
Power Voltage5V (USB) / 3.3V (TTL-RS232)
Power Current200mA
CommunicationUART (115,200bps / TTL3.3V) / USB 2.0
Interface SocketMolex 51021- 0700 ( 7 pin; 1.25 mm)
Image Resolution508dpi
Effective Collecting Area 10.4 * 14.0mm
Image Size208 * 288 pixel
Module Size (L*W*H)Motherboard:42.0 * 26.0 * 5.08mm(L * W * H)
Sensor:34.06 * 20.4 * 2.47mm(L * W * H)
Image FormatsRAW, BMP, JPG
Template ZKFinger V10.0 ; ISO19794-2 ; ANSI-378
Template Size 1- 4KB (ZKFinger V10.0); 1,568 B (ISO 19794-2)
Grayscale 256
Operating Environment -20 °C ~ +50 °C; 90% r.h.
ISO/ANSI Support ISO-19794-2/4 ANSI-378
