ZKTeco EC16 & DEX16: Elevator Control Panels

ZKTeco EC16 & DEX16 Elevator Control System

The ZKTeco EC16 and DEX16 are advanced elevator control solutions designed to enhance security and access management in multi-story buildings. The EC16 serves as the primary control panel, while the DEX16 functions as an expansion board, allowing for scalable control of up to 128 floors.

With support for biometric, RFID, and advanced QR code verification, the EC16 & DEX16 offer a secure and flexible approach to elevator access control, perfect for both commercial and residential buildings.

Description

ZKTeco EC16 & DEX16: Advanced Elevator Control Solution for Enhanced Building Security

The ZKTeco EC16 and DEX16 are state-of-the-art elevator control solutions engineered to provide advanced access management for multi-story buildings. The EC16 control panel can manage up to 16 floors, and by connecting up to seven DEX16 expansion boards via RS485, the system can control a total of 128 floors, making it ideal for high-rise buildings with extensive security needs. The EC16 supports biometric fingerprint verification, RFID card access, and advanced QR code and facial recognition integration through ZKTeco’s ZKBio CVSecurity platform, providing versatile and secure elevator access control.

Designed to offer comprehensive communication interfaces, the EC16 features TCP/IP, USB Host, Wiegand, and RS485 ports, enabling seamless integration with various access control devices and systems. The system also supports robust data protection measures, including AES256 encryption, HTTPS, and TLS1.2 protocols, ensuring secure data transmission and storage. With its scalable configuration, the EC16 & DEX16 can meet the needs of both residential and commercial high-rise buildings, offering a reliable, flexible, and secure solution for elevator access management.

Key Features

  • Biometric and Card Verification – Supports fingerprint and RFID card verification through direct RS485 connections for secure access to designated floors.
  • Advanced Access Methods – Integration with ZKBio CVSecurity platform enables QR code, facial recognition, and fingerprint authentication for flexible access control.
  • Scalable Floor Control – The EC16 can control up to 16 floors, while the DEX16 expansion board allows for scalability to manage up to 128 floors.
  • Comprehensive Communication Interfaces – Equipped with TCP/IP, USB Host, Wiegand, and RS485 ports, facilitating seamless integration with various devices and systems.
  • Robust Data Protection – Utilizes AES256 encryption, HTTPS, and TLS1.2 protocols to ensure secure data transmission and storage.

Technical Specifications

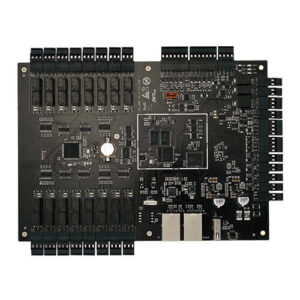

EC16 Control Panel

  • Fingerprint Capacity: 30,000 (optional)
  • Card Capacity: 100,000
  • Transaction Capacity: 200,000
  • Operating Temperature: -20°C to 55°C
  • Operating Humidity: 10% to 90% RH
  • Power Supply: DC 12V 3A
  • Dimensions: 165 × 230 mm
  • Certifications: CE, FCC, ISO9001, ISO14001

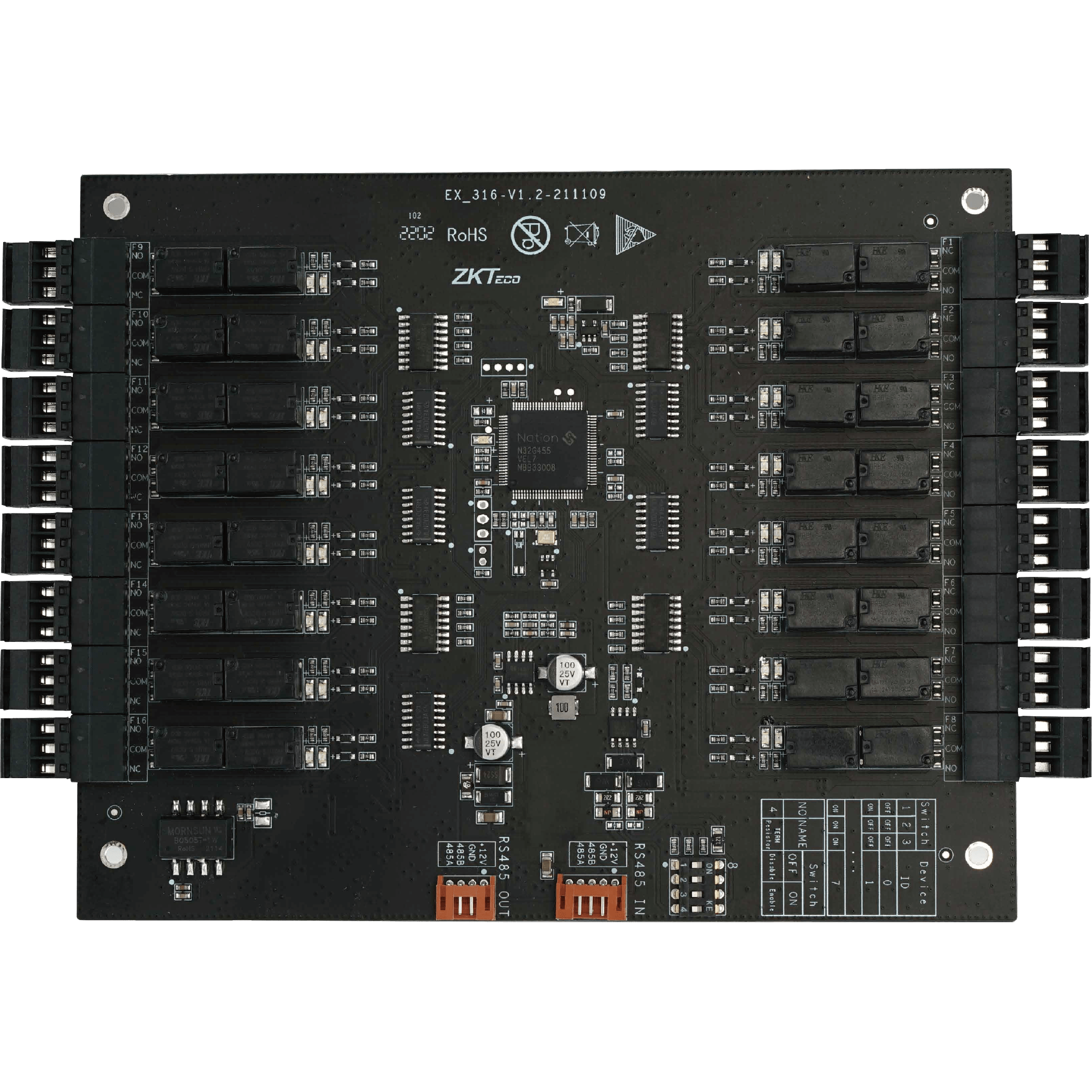

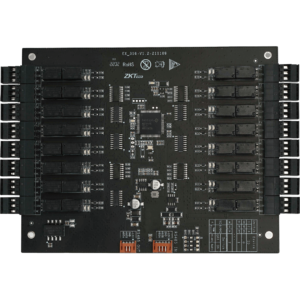

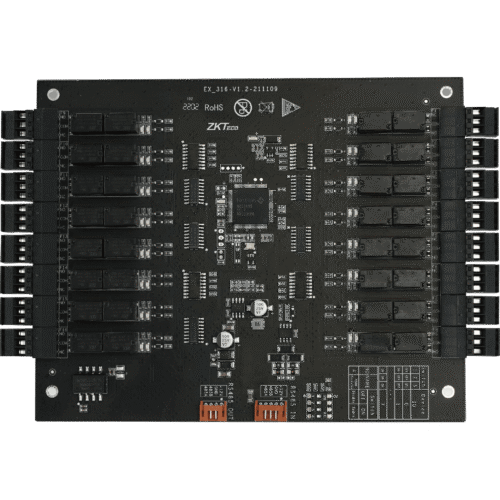

DEX16 Expansion Board

  • Floor Button Control Relays: 16 dual relays
  • Communication: RS485 (OSDP)
  • Operating Temperature: -20°C to 55°C
  • Operating Humidity: 10% to 90% RH
  • Power Supply: DC 12V 1A
  • Dimensions: 165 × 132 mm
  • Certifications: CE, FCC, ISO9001, ISO14001

Applications

The ZKTeco EC16 and DEX16 are ideal for commercial buildings, residential complexes, and institutional facilities requiring secure and efficient elevator access control. Their scalability and support for multiple authentication methods make them suitable for environments with diverse security needs, providing flexible and reliable elevator control.

Why Choose the ZKTeco EC16 & DEX16?

The ZKTeco EC16 & DEX16 offer advanced elevator control with scalability and robust security features, perfect for high-rise buildings requiring efficient access management. Their flexible authentication options, integration capabilities, and support for up to 128 floors make them an excellent choice for enhancing security in both residential and commercial settings. With reliable data protection and versatile communication interfaces, the EC16 & DEX16 ensure seamless integration and operation within your building’s security infrastructure.

Specifications

FeatureSpecification
ModelEC16
Fingerprint Capacity (optional)30,000
Card Capacity100,000
CommunicationTCP/IP ,USB Host ,Wiegand,RS485,
Transaction Capacity200,000
Floor Button Control Relay16 Dual Relay
Number of Ports2 TCP/IP, 2 Wiegand (26/34/66 bits),
1 RS485 (OSDP), 1 RS485 (expansion board),
1 Open, 1 close, 1 AUX output,
1 AUX in, 1 voice output(coming soon),
1 LED Output(COMMRUN/PWR/GND),
1 FIRE,1 Emergency, 1 Power in,
1 USB 2.0 port
Additional InfoDimension(L*W): 165*230mm
Operating Temperature: -20°C to 55°C
Storage Temperature: -25°C to 65°C
Operating Humidity: 10% to 90% RH
Data Protection: AES256, HTTPS, TLS1.2
Special FunctionsProtocol: ZKTeco A & C Push
Supported QR Code Reader : QR500/600 Series
RS485 address Set by DIP switch
Max Supported Expansion Board: 7pcs (DEX16)
over RS485
CertificationsCE, FCC, ISO9001, ISO14001
CompatibilityZKBio CVSecurity
Power SupplyDC 12V 3A
ModelDEX16
Floor Button Control Relay16 Dual Relay
Number of Ports1 RS485 IN,
1 RS458 OUT
CommunicationRS485(OSDP)
Additional InfoCommunication to EC16 : RS485
Operating Temperature :-20°C to 55°C
Storage Temperature: -25°C to 65°C
Operating Humidity:10% to 90% RH
Dimension(L*W):165*132mm
CertificationsCE, FCC, ISO9001, ISO14001
CompatibilityZKBio CVSecurity
Power SupplyDC 12V 1A
