ZKTeco F21 – Innovative Biometric Fingerprint Reader for Access Control Applications

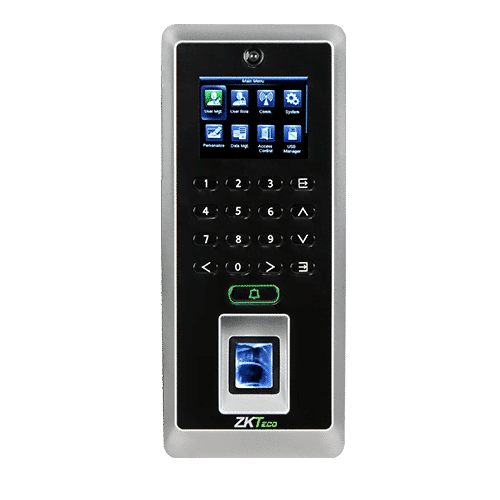

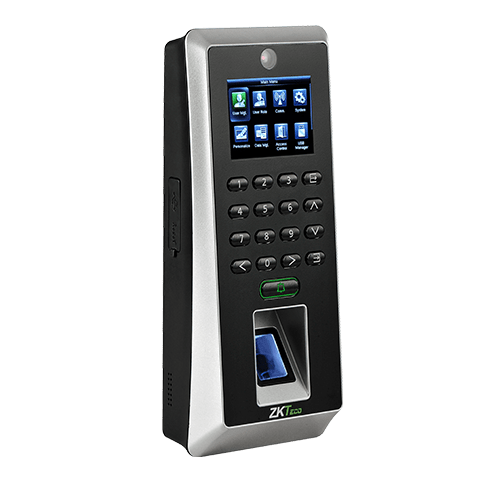

ZKTeco F21

An innovative biometric fingerprint reader for access control applications. It is the first time attendance and access control terminal applying the most advanced Z-ID technology. It not only possesses an outstandingly high identification rate towards dry, wet, and rough fingers but also provides the utmost security by its live finger detecting capability. The terminal also has a photo-taking function that enables attendance photo and Photo ID (optional).

Features

  • Innovative biometric fingerprint reader for access control applications
  • Advanced Z-ID technology for outstanding identification rate towards dry, wet, and rough fingers
  • Live finger detecting capability for utmost security
  • Photo-taking function that enables attendance photo and Photo ID (optional)

Product Details

The ZKTeco F21 is an innovative biometric fingerprint reader for access control applications. It is the first time attendance and access control terminal applying the most advanced Z-ID technology. It not only possesses an outstandingly high identification rate towards dry, wet, and rough fingers but also provides the utmost security by its live finger detecting capability. The terminal also has a photo-taking function that enables attendance photo and Photo ID (optional).

The F21 has a fingerprint capacity of 3,000 and a card capacity of 5,000 (Optional). The transaction capacity is 30,000. The sensor used is a Z-ID+ Fingerprint Sensor. The algorithm version used is ZKFinger V10.0. The communication options include RS232/485, TCP/IP, USB-host, Wi-Fi. The access control interface includes electric lock, door sensor, exit button, alarm. The Wiegand signal supports input & output. The functions include DST, Automatic Status Switch, Record query, T9 input, 14 digit user ID, Anti-passback, Scheduled-Bell, Printer (Optional), ADMS (Optional).

The power supply for the F21 is DC 12V / 3A. It has an operating temperature range of unspecified values in my sources [0 °C - 45 °C] and an operating humidity range of unspecified values in my sources [20% - 80%]. The dimensions of the F21 are 158.5 x 78.0 x 19.4mm (LWH).

In summary, the ZKTeco F21 is an innovative biometric fingerprint reader for access control applications that applies the most advanced Z-ID technology to provide an outstandingly high identification rate towards dry, wet, and rough fingers while also providing the utmost security by its live finger detecting capability. The terminal also has a photo-taking function that enables attendance photo and Photo ID (optional).

Specifications

FeatureSpecification
Display2.4-inch TFT LCD Color Screen
Fingerprint Capacity3,000
Card Capacity5000(Optional) ID or mifare card
Transaction Capacity100,000
SensorSilkID Sensor
Algorithm VersionZKFinger VX10.0
CommunicationRS232/485, TCP/IP, USB-host
Access Control Interface3rd Party Electric Lock, Door Sensor, Exit Button, Alarm, Doorbell
Wiegand SignalInput, Output,SRB
Aux. Input1ea for linkage function
FunctionsDST,Automatic Status Switch, Anti-passback,Scheduled-Bell,Printer & Wireless door bell (Optional)
Power Supply12V DC,3A
Operating Temperature0 °C- 45 °C
Operating Humidity20%-80%
SDK and softwareStandalone SDK,ZKAccess3.5 software
