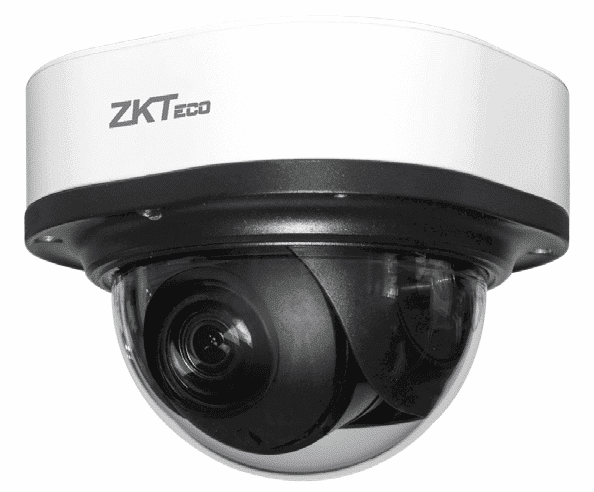

ZKTeco DL-855P28B-S7 | Pro Series 5MP Motorized Lens Face Detection Dome IP Camera

ZKTeco DL-855P28B-S7

A state-of-the-art camera from the Pro Series. Packed with H.265 technology, it delivers crystal clear video surveillance coupled with advanced face detection. Built rugged with IP67 rating, it promises optimal performance in extreme conditions, ensuring seamless biometric security.

Product Details

Introducing the ZKTeco DL-855P28B-S7, a hallmark in the Pro Series lineup, revolutionizing the realm of biometric surveillance. Engineered with the latest H.265 technology, this camera offers an evolutionary optimization over its predecessors, ensuring high-definition video clarity, dynamic ROI, and smart noise reduction. Its embedded face detection algorithm is meticulously designed to support a multitude of intelligent video analytic functions such as Line Crossing, Intrusion, and Object Left/Lost. A built-in P2P cloud function further enhances its capabilities, allowing users convenient and flexible remote real-time viewing. Not just technologically superior, its robust design rated at IP67 ensures long-standing resistance against water and dust, making it apt for both indoor and challenging outdoor environments. The DL-855P28B-S7 by ZKTeco bridges the gap between cutting-edge technology and practical, efficient security solutions, providing an unparalleled user experience.


Image Sensor1/2.7” CMOS
Effective Pixels2592 * 1944
Flash / DDR128Mb / 1Gb
IR Distance30m
S/N Ratio> 52dB
Lens TypeMotorized
Mount TypeBoard-in
Focal Length3.6mm ~ 10.8mm
ApertureF1.7 ~ F3.3
Optical Zoom3X
CompressionH.265 / H.264
Resolution5MP (2592x1944) / 4MP (2688 x 1520) / 3MP (2304 x 1296) / 1080P (1920 x 1080) /1.3MP (1280 x 960) / 720P (1280 x 720)
Bitrate ControlCBR / VBR
BitrateH.265: 3Mbps - 8Mbps
Multi-Streaming Main Stream5MP@25fps / 4MP@25fps / 3MP@25fps /1080P@25fps / 960P@25fps / 720P@25fps
Sub StreamD1@25fps / VGA@25fps / CIF@25fps
Third StreamN/A
Motion DetectionSupport
Digital ZoomSupport
Audio CompressionG7.11u
Privacy Mask4 areas
Day / NightSupport
White BalanceSupport
Corridor ModeSupport
Noise Reduction2D/3D DNR
Mirror / FlipSupport
ROI4 areas
Face DetectionFacial Detection
Face TemplatesN/A
Face Detected Per Frame6
Detected Face Size80 x 80~300 x 300 Pixels
Web BrowserIE / Firefox / Chrome / Safari
Management Software (VMS)AntarVis 2.0
ZKBioSecurity IVSZKBio Access IVS
Operation SystemWindows
Mobile APPAntarView Pro
P2P Cloud ServiceSupport
Ethernet1 RJ-45 port (10/100Mbps)
Audio I/O1/0
Alarm I/O2-Jan
Reset ButtonSupport
Micro-SD SlotSupport (up to 128GB)
Power SupplyPoE (IEEE802.3af ), DC 12V±10%
Power Consumption< 3W
Ingress ProtectionIP67
DimensionsΦ102 * 93.3(mm)
Working Temperature-30°C to 60°C
Working Humidity10% to 90%
Net Weight0.50kg
Gross Weight0.64kg
Camera5MP Camera
Description5MP Motorized Lens Face Detection Dome IP Camera
