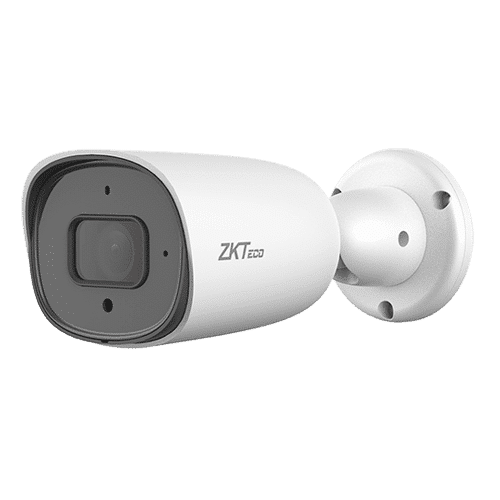

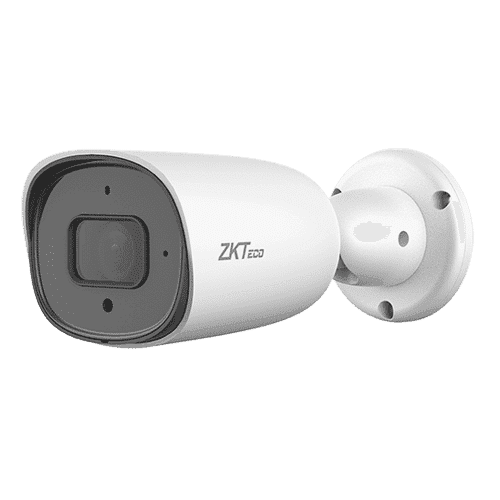

ZKTeco BS-858M23C-S8: High-Performance 8MP Security Camera with Sony STARVIS Sensor and Advanced Features
![BS-858M23C-S8 8MP (4K Security Cameras series) CCTV Camera](https://www.nzteco.co.nz/wp-content/uploads/2023/09/BS-858M23C-S8.png)
Product Details
The ZKTeco BS-858M23C-S8 is a cutting-edge security camera designed to provide top-notch surveillance and security solutions. It is equipped with a 1/2.7” 8MP Sony STARVIS CMOS sensor, ensuring high-quality image capture even in low-light conditions The camera utilizes H.265 triple stream encoding, which allows for efficient data compression without compromising video quality.
The ZKTeco BS-858M23C-S8 features a high-quality 3.6mm optical lens, providing a wide field of view and detailed image capture. It also boasts a 30m IR effective range, ensuring clear visibility even in complete darkness. The built-in Power over Ethernet (PoE) simplifies installation by allowing both power and data transmission over a single Ethernet cable.
One of the standout features of the ZKTeco BS-858M23C-S8 is its embedded facial detection algorithm. This advanced feature enhances the camera’s ability to recognize and track faces, adding an extra layer of security. The camera supports multiple web browsers, allowing for flexible and convenient remote viewing. Users can also view footage remotely via a mobile application or Video Management Software (VMS).
The ZKTeco BS-858M23C-S8 is designed to withstand harsh conditions. It offers lightning protection up to 6KV and features an IP67-rated metal casing, making it resistant to dust and water. With its robust features and durable design, the ZKTeco BS-858M23C-S8 is a reliable choice for those seeking a high-performance security camera.
Whether you’re looking to secure your home or business, the ZKTeco BS-858M23C-S8 offers a comprehensive solution that combines advanced technology with user-friendly operation. Its superior performance and robust features make it a valuable addition to any security system.
Specifications
Feature | Description |
---|---|
Model | BS-858M22C-S8 |
Image Sensor | 1/2.7” Sony CMOS |
Effective Pixels | 3840x2160 |
Min. Illumination | Colour: 0.01Lux@F1.6 (AGC ON), B/W: 0.001Lux@F1.6 (AGC ON) |
Flash / DDR | 1Gb / 2Gb |
IR LED No. | 2 |
IR Distance | 30m |
S/N Ratio | > 52dB |
LENS | |
Lens Type | Fixed |
Mount Type | Board-in |
Focal Length | 3.6mm |
Aperture | F1.6 |
FOV | 95° |
Optical Zoom | N/A |
VIDEO | |
Compression | H.265 / H.264 |
Resolution | 8MP (3840 x 2160), 5MP (2592 x 1944), 4MP (2560 x 1440), 1080P (1920 x 1080), D1 (720 x 576), VGA (620 x 480), CIF (352 x 288) |
Bitrate Control | CBR / VBR |
Bitrate | 4Mbps ~ 8Mbps |
Multi-Streaming | Main Stream: 8MP@20fps / 5M@25fps / 4MP@25fps / 2MP@25fps; Sub Stream: D1@25fps / VGA@25fps / CIF@25fps; Third Stream: N/A |
Motion Detection | Support |
Digital Zoom | Support |
Audio Compression | G7.11u |
Privacy Mask | 4 areas |
WDR | DWDR |
Day / Night | Support |
White Balance | Support |
Corridor Mode | Support |
Defog | N/A |
Noise Reduction | 2D / 3D DNR |
HLC | Support |
Mirror / Flip | Support |
BLC | Support |
ROI | 4 areas |
Anti-flicker | N/A |
IVA | Intelligent Video |
Face Detection | Support |
FACIAL DETECTION | |
Face Templates | N/A |
Face Detected Per Frame | N/A |
Detected Face Size | N/A |
Face Quality Filtering | N/A |
Detection Area | N/A |
Capture Response | N/A |
Downloads
[download_now_page]
Recommended Retail Price (NZ) $368.00 + GST
Product Details
The ZKTeco BS-858M23C-S8 is a cutting-edge security camera designed to provide top-notch surveillance and security solutions. It is equipped with a 1/2.7” 8MP Sony STARVIS CMOS sensor, ensuring high-quality image capture even in low-light conditions The camera utilizes H.265 triple stream encoding, which allows for efficient data compression without compromising video quality.
The ZKTeco BS-858M23C-S8 features a high-quality 3.6mm optical lens, providing a wide field of view and detailed image capture. It also boasts a 30m IR effective range, ensuring clear visibility even in complete darkness. The built-in Power over Ethernet (PoE) simplifies installation by allowing both power and data transmission over a single Ethernet cable.
One of the standout features of the ZKTeco BS-858M23C-S8 is its embedded facial detection algorithm. This advanced feature enhances the camera’s ability to recognize and track faces, adding an extra layer of security. The camera supports multiple web browsers, allowing for flexible and convenient remote viewing. Users can also view footage remotely via a mobile application or Video Management Software (VMS).
The ZKTeco BS-858M23C-S8 is designed to withstand harsh conditions. It offers lightning protection up to 6KV and features an IP67-rated metal casing, making it resistant to dust and water. With its robust features and durable design, the ZKTeco BS-858M23C-S8 is a reliable choice for those seeking a high-performance security camera.
Whether you’re looking to secure your home or business, the ZKTeco BS-858M23C-S8 offers a comprehensive solution that combines advanced technology with user-friendly operation. Its superior performance and robust features make it a valuable addition to any security system.
Specifications
Feature | Description |
---|---|
Model | BS-858M22C-S8 |
Image Sensor | 1/2.7” Sony CMOS |
Effective Pixels | 3840x2160 |
Min. Illumination | Colour: 0.01Lux@F1.6 (AGC ON), B/W: 0.001Lux@F1.6 (AGC ON) |
Flash / DDR | 1Gb / 2Gb |
IR LED No. | 2 |
IR Distance | 30m |
S/N Ratio | > 52dB |
LENS | |
Lens Type | Fixed |
Mount Type | Board-in |
Focal Length | 3.6mm |
Aperture | F1.6 |
FOV | 95° |
Optical Zoom | N/A |
VIDEO | |
Compression | H.265 / H.264 |
Resolution | 8MP (3840 x 2160), 5MP (2592 x 1944), 4MP (2560 x 1440), 1080P (1920 x 1080), D1 (720 x 576), VGA (620 x 480), CIF (352 x 288) |
Bitrate Control | CBR / VBR |
Bitrate | 4Mbps ~ 8Mbps |
Multi-Streaming | Main Stream: 8MP@20fps / 5M@25fps / 4MP@25fps / 2MP@25fps; Sub Stream: D1@25fps / VGA@25fps / CIF@25fps; Third Stream: N/A |
Motion Detection | Support |
Digital Zoom | Support |
Audio Compression | G7.11u |
Privacy Mask | 4 areas |
WDR | DWDR |
Day / Night | Support |
White Balance | Support |
Corridor Mode | Support |
Defog | N/A |
Noise Reduction | 2D / 3D DNR |
HLC | Support |
Mirror / Flip | Support |
BLC | Support |
ROI | 4 areas |
Anti-flicker | N/A |
IVA | Intelligent Video |
Face Detection | Support |
FACIAL DETECTION | |
Face Templates | N/A |
Face Detected Per Frame | N/A |
Detected Face Size | N/A |
Face Quality Filtering | N/A |
Detection Area | N/A |
Capture Response | N/A |
