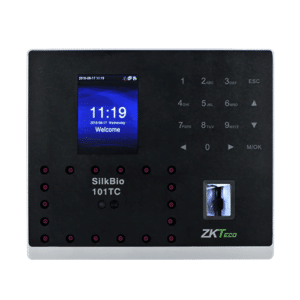

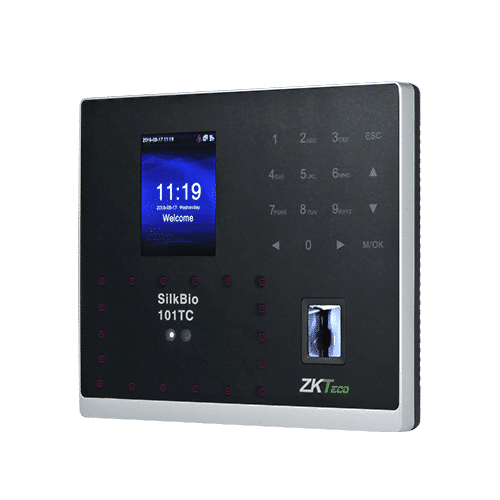

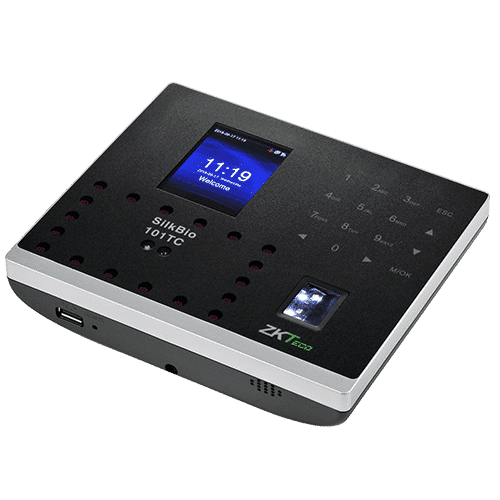

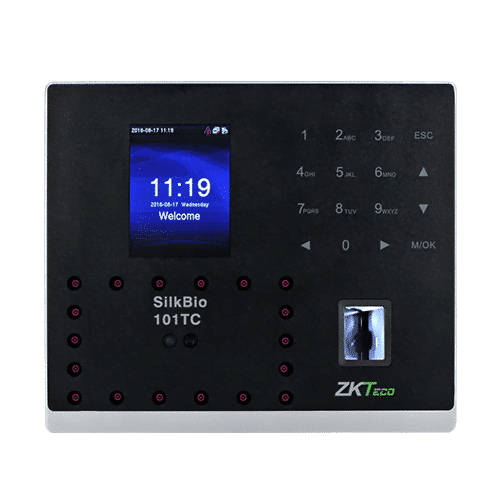

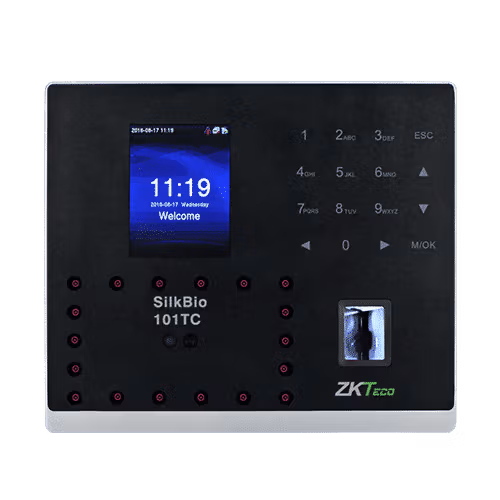

The ZKTeco SilkBio-101TC is a multi-biometric time & attendance and access control terminal that incorporates advanced biometric authentication methods such as fingerprint, face recognition and RFID card functions. It uses the new SilkID fingerprint reader which provides stable operation under strong light sources and high precision verification of wet and rough fingers.
The ZKTeco SilkBio-101TC is a multi-biometric time & attendance and access control terminal that incorporates advanced biometric authentication methods for secure and efficient access control management. The device uses the new SilkID fingerprint reader which provides stable operation under strong light sources and high precision verification of wet and rough fingers. This ensures fast and accurate fingerprint authentication even in challenging conditions.
In addition to fingerprint authentication, the SilkBio-101TC also supports face recognition and RFID card functions for multiple biometric authentication methods. This provides flexibility in access control management by allowing users to choose the most convenient or secure method of authentication. The device supports various communication methods such as TCP/IP for wired network connections and Wi-Fi (optional) for wireless connections. This allows for easy integration with existing network infrastructure and remote management of the device.
The SilkBio-101TC supports various firmware functions such as work code for assigning specific tasks or projects to users, SMS for sending messages or notifications to users, DST for daylight saving time adjustments, and more. These features make the SilkBio-101TC a versatile and reliable solution for access control management.
| Feature | Specification |
|---|---|
| Face Capacity | 800 |
| Fingerprint Capacity | 1500 |
| ID Card Capacity | 2,000 (Optional) |
| Algorithm | ZKFinger 10.0 / ZKFace 7.0 |
| Record Capacity | 100,000 |
| Display | 2.8-inch TFT Screen |
| Communication | TCP/IP, USB-Host, Wi-Fi(Optional) |
| Standard Functions | Work Code, SMS, DST, Scheduled-bell, Self-Service Query, Automatic Status Switch, Photo ID T9 Input, Camera, 9 digit user ID, Built-in Battery, Multiple Verify Mode, External Bell |

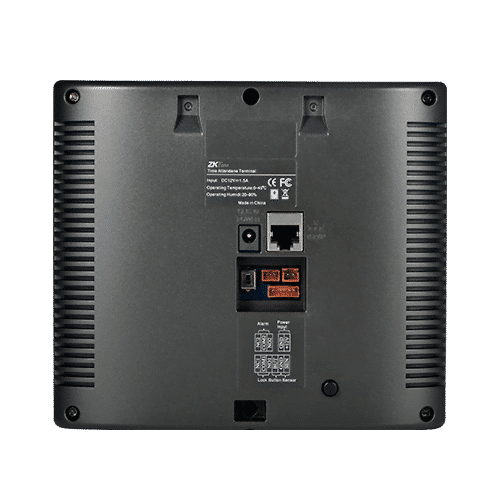

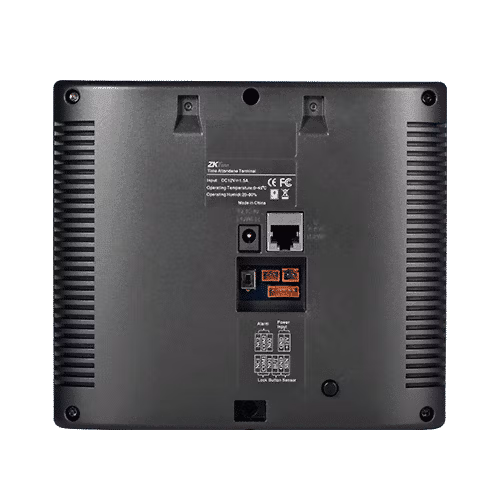

| Access Control Interface for | Lock, Door Sensor, Exit Button, Alarm |
| Optional Functions | ID/Mifare, ADMS, External Printer |
| Power Supply | DC 12V 3A |
| Operating Temp. | 0 °C- 45 °C |
| Operating Humidity | 20%-80% |
| Dimension | 180 x 154 x 34.2 mm |
