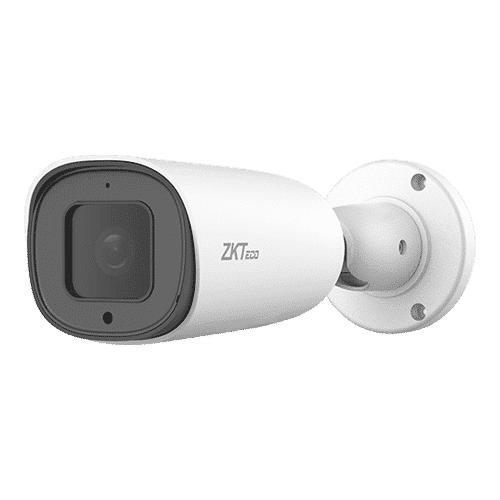

ZKTeco BL-852O38S-S5: Lite Series 2MP Motorized Lens Face Detection Bullet IP Camera

ZKTeco BL-852O38S-S5

A high-performance camera from the Lite Series that delivers high-quality 2MP images with an embedded face detection algorithm. It features a built-in P2P cloud function for flexible remote viewing and supports multiple industry-leading Intelligent video analytic functions.

Product Details

The ZKTeco BL-852O38S-S5 is part of the Lite Series, powered by a 1/2.9” 2MP CMOS sensor and H.265 dual stream encoding. This model promises to deliver accurate identification round-the-clock with an IR effective range of 50m.

One of the standout features of this model is the built-in P2P cloud function. This allows for more convenient and flexible remote real-time viewing and monitoring. The camera also utilizes H.265 dual stream encoding, an evolutionary optimization of H.265 and the traditional H.264. It includes a series of encoding strategies such as dynamic ROI, smart 2D&3D noise reduction for delivering high-quality videos while greatly saving up to 70% bandwidth and storage.

With precise mechanical design and rugged metal casing rated IP67, this camera can withstand water and dust for a long time. It can work safely under extreme or unstable power conditions and adapt to a variety of harsh outdoor environments with a working temperature range from -30°C ~ 60°C.

Key Features:

  • High-performance camera from the Lite Series
  • 1/2.9” 2MP CMOS sensor
  • H.265 dual stream encoding
  • Accurate identification round-the-clock
  • Built-in P2P cloud function for flexible remote viewing
  • Supports multiple industry-leading Intelligent video analytic functions
  • Precise mechanical design with IP67 rated protectio

Specifications

FeatureDescription
ModelEL-852O38I-S5
Image Sensor1/2.9” CMOS
Effective Pixels1920x1080
Flash / DDR128Mb / 512Mb
IR LED No.2
IR Distance50m
Min. IlluminationColour: 0.5Lux@F1.7~3.0(AGC ON), B/W: 0.001Lux@F1.7~3.0(IR ON)
S/N Ratio< 50dB
LENS
Lens TypeMotorised
Mount TypeBoard-in
Focal Length3.35mm ~ 10.05mm
ApertureF1.7 ~ F3.0
FOV38° ~ 101°
Optical Zoom3X
VIDEO
CompressionH.265 / H.264
Resolution1080P (1920 × 1080), 1.3M (1280 × 960), 720P (1280 × 720)
Bitrate ControlCBR / VBR
BitrateH.265: 16Kbps - 4Mbps, H.264: 16Kbps - 4Mbps
Multi-StreamingMain Stream: 1080P@25fps
Sub StreamQ720P@25fps
Third StreamN/A
Motion DetectionSupport
Digital ZoomSupport
Audio CompressionG7.11u
Privacy Mask4 areas
WDRDWDR
Day / NightSupport
White BalanceSupport
Corridor ModeSupport
DefogN/A
Noise Reduction2D / 3D DNR
HLCN/A
Mirror / FlipSupport
BLCSupport
ROI4 areas
Anti-flickerSupport
IVAFacial Detection
FACIAL DETECTION
Face DetectionSupport
Face TemplatesN/A
Face Detected Per Frame6
Detected Face Size80x80 ~ 300x300 Pixels
Face Quality FilteringSupport
Detection AreaUser-defined
Capture Response≤200ms
NETWORK
ProtocolTCP/IP, UDP, HTTP, DHCP, RTSP, NTP, RTMP
InteroperabilityONVIF Profile S, SDK, API
Max. Online Users3
Web BrowserIE / Firefox / Chrome / Safari
Management Software (VMS)AntarVis 2.0, ZKBioSecurity IVS, ZKBio Access IVS
Operation SystemWindows
Mobile APPAntarView Pro
P2P Cloud ServiceSupport
INTERFACE
Ethernet1 RJ-45 port (10/100Mbps)
Audio I/O1/0
Alarm I/ON/A
RS485N/A
Reset ButtonN/A
Micro-SD SlotN/A
ANRN/A
USBN/A
GENERAL
Power SupplyPoE (IEEE802.3af), DC 12V±10%
Power Consumption<3W
Ingress ProtectionIP67
Dimensions (L*W*H)Φ111.6 x 105 (mm)
Working Temperature-30°C ~ 60°C
Working Humidity0% ~ 90%
Net Weight0.40kg
Gross Weight0.64kg
ORDERING INFORMATION
Camera2MP Camera
ModelEL-852O38I-S5
Description2MP Motorised Lens Face Detection Eyeball IP Camera
