Meeting-room scheduling display with booking, approval and live availability tools for users, administrators and reception teams.

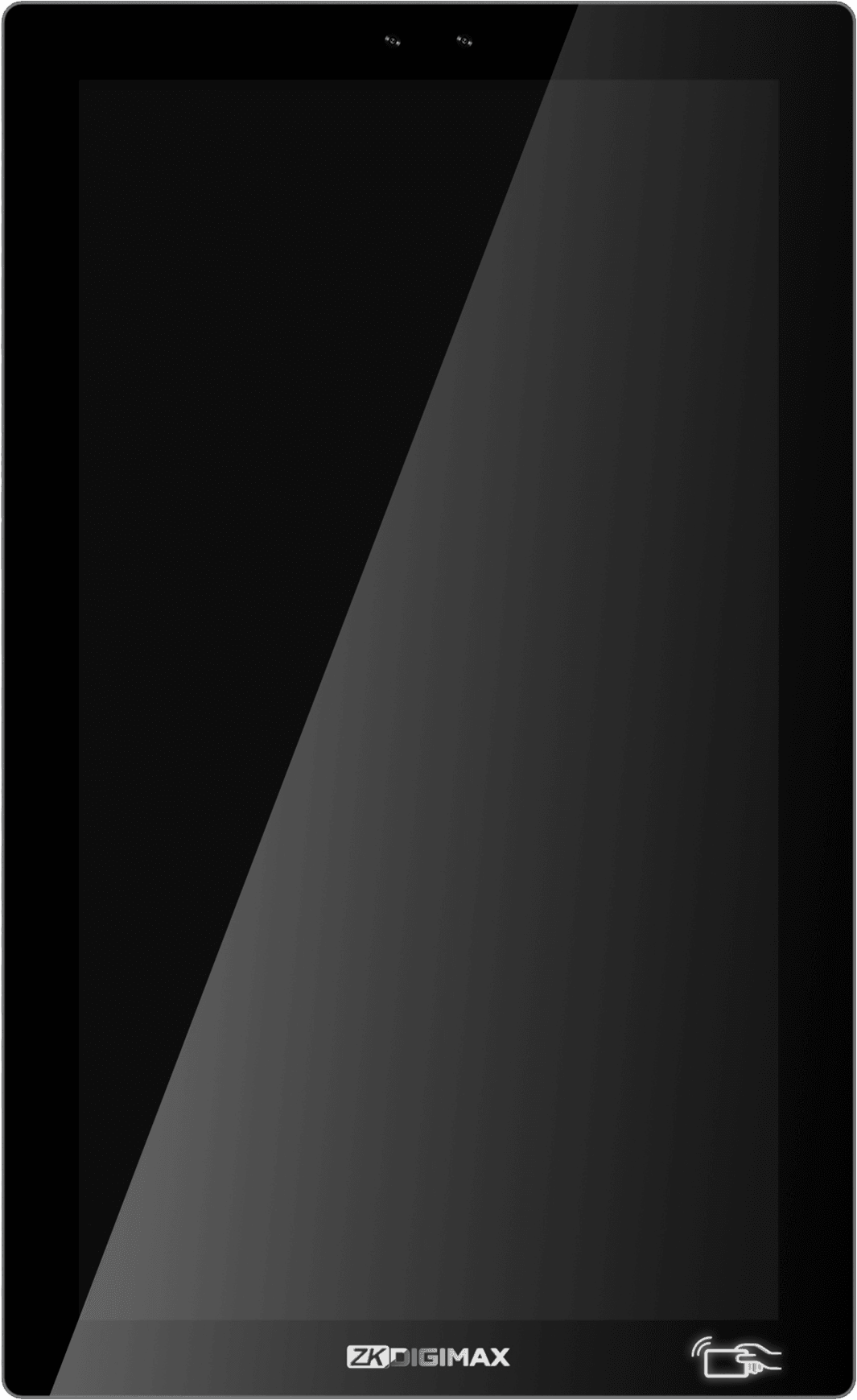

ZKDigimax VizionGuard Meeting Signage gives meeting rooms a clear, professional point of control for bookings, access and live availability. Designed as an elegant wall-mounted display, it brings room users, administrators and reception teams into one practical room-management workflow. The system supports booking requests, approval processes and schedule tracking, helping organisations make better use of shared meeting spaces and reduce the frustration of double-booked or underused rooms.
Mounted outside a meeting room, VizionGuard Meeting Signage presents current meeting information at the point where people need it. Users can check room availability, make or manage a booking and view meeting details from a dedicated interface. For busy offices, education facilities, hotels and community venues, this provides a more visible and organised alternative to relying on a separate calendar alone.
The manufacturer presents the range in 10-inch and 15.6-inch display options. This NZTeco listing is centred on the 15.6-inch DG03-A9W15 model specified in the official brochure; discuss your preferred display size and project requirements with NZTeco before ordering. The 15.6-inch unit has a 1920 × 1080 E-LED touch display, 178° viewing angle and 300 cd/m² brightness, helping room information remain clear in typical indoor commercial environments.
VizionGuard can support facial authentication and card authentication as part of a configured meeting-room workflow. A built-in 2MP camera is included on the DG03-A9W15. It offers normal and advertising display layouts, so organisations can combine room information with approved internal communications where appropriate. A wide range of background options also makes it easier to keep the device aligned with the site’s visual identity.
For reliable day-to-day operation, the DG03-A9W15 runs Android 11 on a quad-core Cortex-A55 platform with 2 GB RAM and 16 GB storage. It supports Wi-Fi, 10/100 Mbps Ethernet and Bluetooth 4.1, giving project teams several options when planning a connected installation. USB Type-C is provided for 5 V power input and output. The brochure specifies wall mounting, a 3 mm tempered-glass front and a 30 W whole-machine power rating.
The platform separates the needs of users, administrators and reception staff. Administrators can manage meeting rooms, bookings and permissions; reception teams can monitor upcoming meetings and meeting requirements; and users can book, cancel or check room availability. This role-based approach helps organisations establish a consistent process across a growing estate of rooms, while still keeping the front-of-room experience simple.
VizionGuard Meeting Signage is suited to office buildings, hotel and convention halls, educational institutions and communal facilities. It is designed for indoor use within its stated -10°C to 60°C operating-temperature range. For the best outcome, confirm mounting location, power, networking, access-control workflow and software requirements during project scoping. Explore ZKDigimax digital signage or contact NZTeco for an enquiry, installation guidance and a tailored quotation.
| Series | VizionGuard Meeting Signage |
|---|---|
| Brochure model | DG03-A9W15 |
| Display options | 10-inch and 15.6-inch options listed by ZKDigimax |
| Specification scope | The following technical specifications apply to the 15.6-inch DG03-A9W15 brochure model |
| Operating system | Android 11.0 |
| CPU | Quad-core Cortex-A55 at 2.0 GHz |
| GPU | ARM G52 2EE |
| Chipset | RK3568 |
| RAM | 2 GB |
| Storage | 16 GB |
| Display size | 15.6-inch |
| Backlight | E-LED |
| Aspect ratio | 16:09 |
| Colour gamut | 72% |
| Resolution | 1920 × 1080 |
| Contrast | 1200:1 |
| Response time | 8 ms (G to G) |
| Refresh rate | 60 Hz |
| Viewing angle | 178° (H) / 178° (V) |
| Brightness | 300 cd/m² |
| Display life | More than 30,000 hours |
| Touch | Supported |
| Camera | 2 megapixels |
| Speaker power | 2 W × 2 |
| Type-C (5 V) | 1 |
| Type-C (output) | 1 |
| Supported video | WMV, AVI, FLV, RM, RMVB, MPEG, TS, MP4 |
| Supported audio | MP3, WMA, MP2, WAV |
| Supported image | JPG, BMP, PNG, GIF |
| Wi-Fi | 2.4 GHz |
| Ethernet | 10/100M adaptive Ethernet |
| Bluetooth | Bluetooth 4.1 |
| Power input | 5 V / 2 A |
| Whole-machine power | 30 W |
| Mounting style | Wall mounted |
| Product colour | Black and white |
| Tempered glass | 3 mm |
| Operating temperature | -10°C to 60°C |
| Storage temperature | -20°C to 70°C |
| Operating humidity | 0% to 95% RH, non-condensing |
| Storage humidity | 5% to 90% RH, non-condensing |
