ZKDigimax DG01-A5 indoor transparent LED screens for retail windows, curtain walls and commercial displays. 44% or 60% transparency, 140° viewing and ScreenDirect CMS compatibility.

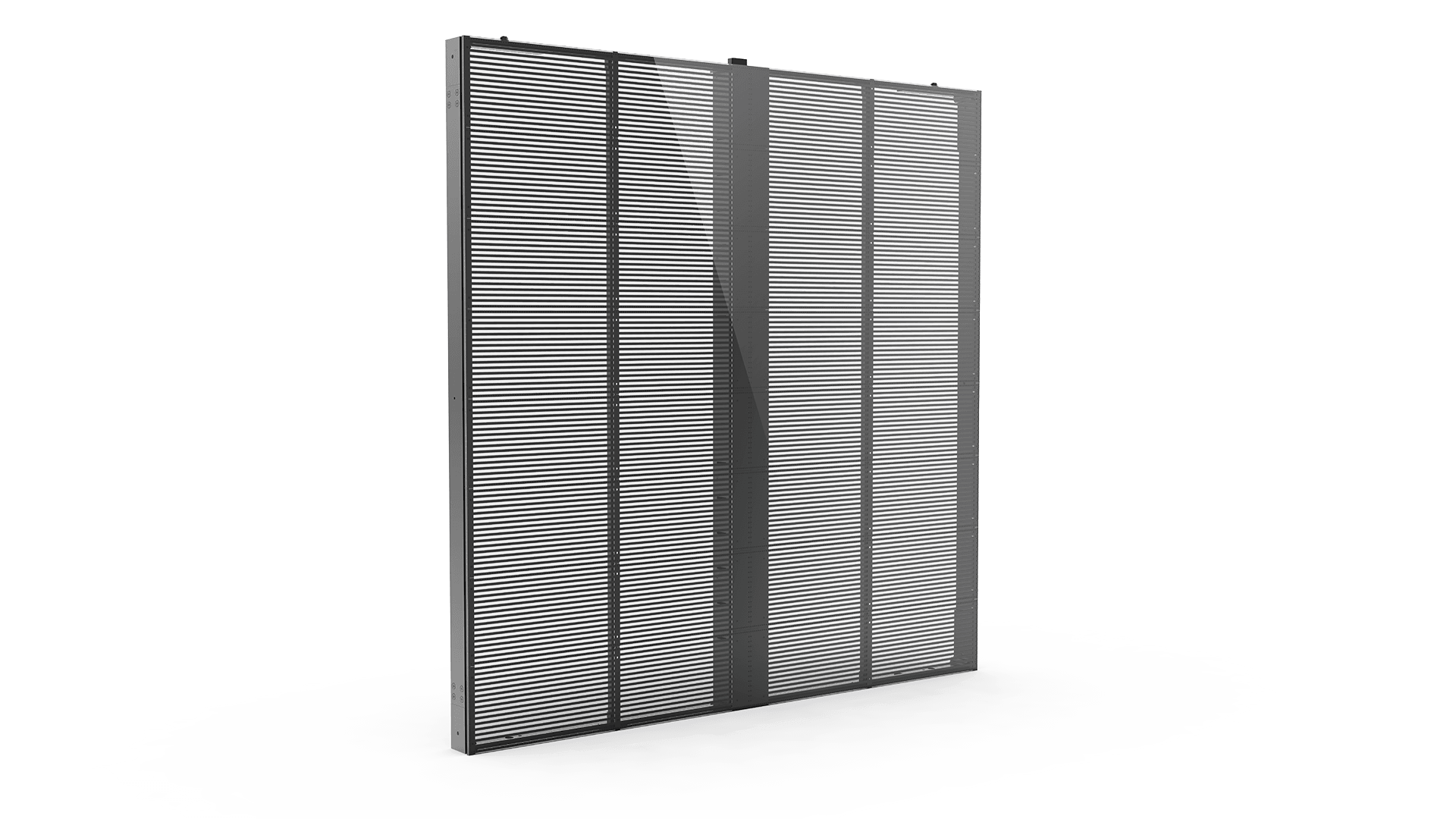

The ZKDigimax DG01-A5 Indoor Transparent LED Display turns a glass storefront, curtain wall or interior retail feature into a high-impact digital communication surface while retaining the openness of the space behind it. Designed for transparent indoor display applications, it gives retailers, hospitality venues, showrooms and commercial spaces a practical way to present campaigns, product content and brand messages without replacing the visual connection through the glass.

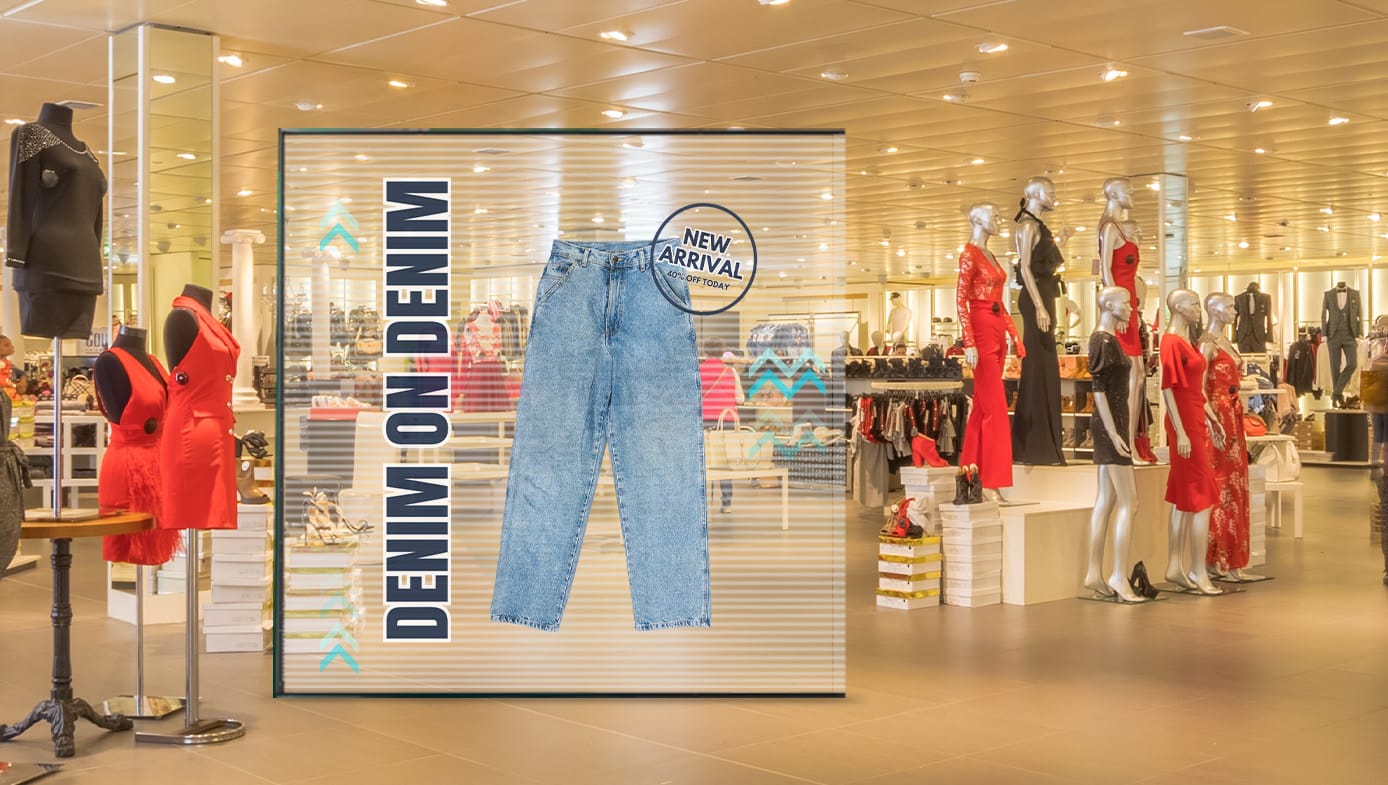

Unlike a conventional solid LED wall, the DG01-A5 uses a transparent screen structure that allows light and sightlines to remain part of the design. It is suited to shop windows, retail entrances, internal glass partitions, commercial displays and product presentation zones where visual impact needs to work alongside the existing architecture.
The series provides two transparent LED configurations: H2.6/V5.6 and H3.9/V7.8. The H2.6/V5.6 configuration delivers 44% transparency and a 348 × 178 module resolution, while the H3.9/V7.8 configuration provides 60% transparency and a 256 × 128 module resolution. Both options use 500 × 125 × 5mm modules and support a 140° ±10° horizontal and vertical viewing angle.
Select the configuration around the intended viewing distance, available glass area and content detail. The brochure specifies a best sight distance of at least 4m. For close viewing or detailed promotional creative, discuss the pixel configuration with NZTeco before finalising the display layout.
DG01-A5 cabinets are available in 1,000 × 1,000mm, 1,000 × 500mm, 500 × 1,000mm and 500 × 500mm formats. This makes it easier to build a display around window mullions, store fit-outs and the available presentation area rather than forcing the project into one cabinet size. The transparent construction is lightweight, with specified cabinet weights of 7kg and 8.5kg for the two configurations.
Installation is designed to be convenient, but the support structure, electrical supply, cable routes, access requirements and glass or façade detailing should be assessed as part of the project. NZTeco can help define a display layout that fits the site and supports safe servicing.
The H2.6/V5.6 configuration is specified at ≥800cd/m² brightness and the H3.9/V7.8 configuration at ≥4,500cd/m². Both are rated for 100,000 hours of life, provide 16-bit grey scale and use an AC200–240V (47–63Hz) power supply. Peak power consumption is specified at 800W/m²; average power consumption is 288W/m² for H2.6/V5.6 and 245W/m² for H3.9/V7.8.
Use the DG01-A5 with ZKDigimax ScreenDirect CMS to organise, schedule and manage the content shown on the display. Designing content to the selected physical resolution, with readable messages and strong visual contrast, helps the transparent screen remain effective in a busy retail or commercial environment.
Browse our ZKDigimax LED display range and the wider ZKDigimax range. For a DG01-A5 proposal, share your window or display dimensions, viewing distance, planned content and installation context with NZTeco. Contact our team for project guidance and pricing.

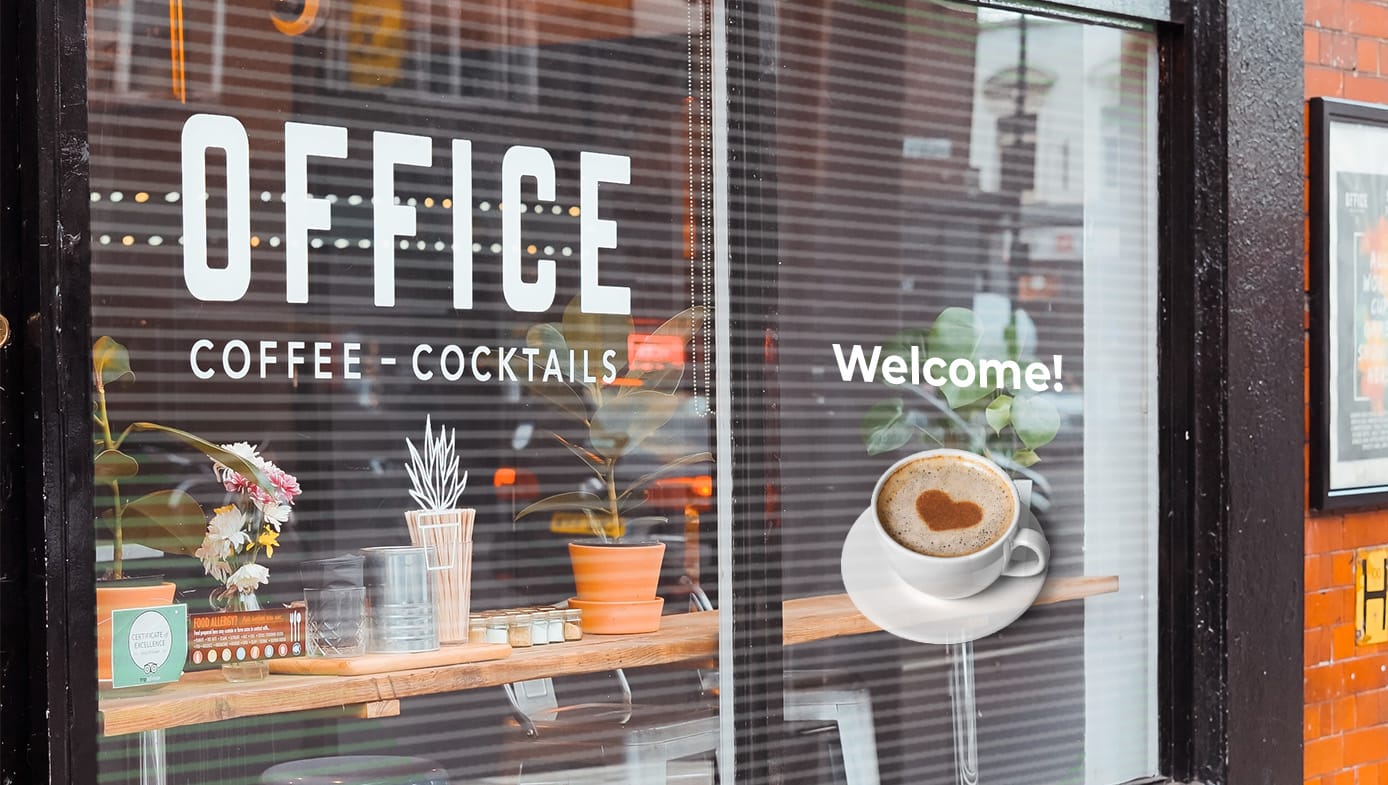

Plan the content and display position together. Window graphics should be legible from the natural pedestrian approach, avoid overly fine detail and leave enough transparent area for the interior merchandise to remain visible. Before installation, confirm how content will be produced, who will manage ScreenDirect CMS and when campaign updates are required. This gives the store team a display that supports day-to-day promotional activity rather than a static installation.
| Specification | H2.6 / V5.6 configuration | H3.9 / V7.8 configuration |
|---|---|---|
| Module resolution (W × H) | 348 × 178 | 256 × 128 |
| Module size (W × H × D) | 500 × 125 × 5mm | 500 × 125 × 5mm |
| Modules | 2 × 8 | 2 × 8 |
| Cabinet resolution (W × H) | 348 × 176/m² | 256 × 128/m² |
| Cabinet sizes (W × H) | 1,000 × 1,000 / 1,000 × 500 / 500 × 1,000 / 500 × 500mm | 1,000 × 1,000 / 1,000 × 500 / 500 × 1,000 / 500 × 500mm |
| Weight | 7kg | 8.5kg |
| Pixel density (dots/m²) | 67,584 | 32,768 |
| Maximum power consumption | 800W/m² | 800W/m² |
| Average power consumption | 288W/m² | 245W/m² |
| White-balance brightness | ≥800cd/m² | ≥4,500cd/m² |
| Viewing angle | 140° ±10° (H and V) | 140° ±10° (H and V) |
| Transparency | 44% | 60% |
| Refresh rate | ≥1,920 / ≥3,840Hz | ≥1,920Hz |
| Power supply | AC200–240V (47–63Hz) | AC200–240V (47–63Hz) |
| Life span | 100,000 hours | 100,000 hours |
| Working temperature | -10°C to +40°C | -10°C to +40°C |
| Operating humidity | 10%–65% RH | 10%–65% RH, without condensation |
