A compact 15-inch all-in-one POS terminal with a splash-proof PCAP touch display, fanless design and configurable customer display, storage and integrated peripherals.

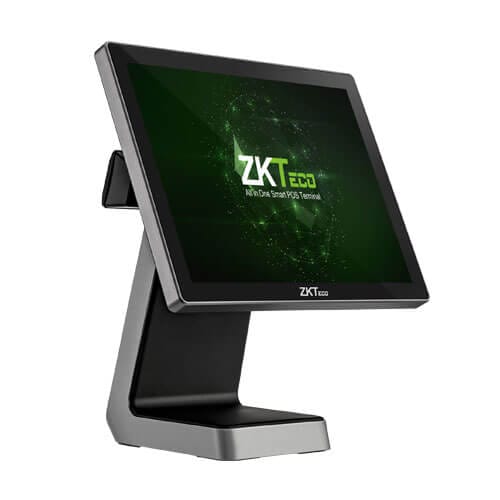

For busy retail and hospitality counters, the point-of-sale terminal needs to feel simple for staff, tidy for customers and dependable through a full trading day. The ZKTeco ZKBio710 is a compact all-in-one POS terminal built around a 15-inch true-flat PCAP touch screen, giving businesses a clean touchscreen workstation without a separate desktop PC taking up counter space.
Its front display uses a 15-inch HD 1024 × 768 capacitive touch screen with splash-proof protection. The ZKBio710 combines aluminium alloy and ABS construction with hidden cable management, a fanless heat-pipe design and a compact desktop footprint. It is available in black and grey, with white offered as an option.
The platform can be specified with a range of customer-display arrangements. Choose an 8-character LED digital-tube display, a 2 × 20-line VFD, a 9.7-inch LCD HD display or a 15-inch LCD HD display. This lets a POS solution be matched to the counter layout and the level of customer-facing information required.
For the ZKBio710 model, processing is provided by an Intel Celeron J1900 at 1.99GHz, with an Intel Celeron J6412 at 2.00GHz listed as an option. It includes 4GB RAM as standard and supports up to 8GB, while the standard 64GB SSD can be specified up to 512GB. Optional external M.2 SATA SSD and HDD storage options are also listed by ZKTeco.
The modular design supports built-in fingerprint, 2D barcode-scanning, magnetic-stripe-reader and RFID-reader modules. These are options to scope with the terminal configuration; they are not assumed to be included in every unit. ZKBio710 also provides one USB 3.0 port, five USB 2.0 ports, RJ45 LAN, COM, VGA, audio, microphone input and power connections, helping integrators connect appropriate POS peripherals.
The terminal supports Windows 7, 8, 10 and 11. Optional single-band 2.4GHz or dual-band 2.4GHz/5GHz Wi-Fi can be specified. Bluetooth is not supported, so any required wireless peripheral workflow should be confirmed during solution design.
At 346 × 190 × 402mm, the ZKBio710 is suited to compact counter installations. Fanless operation and concealed cable routing help maintain a clean presentation at a service counter, café, retail checkout or reception. The working environment is rated at 0°C to 40°C and 20% to 80% humidity; it is an indoor POS terminal and should be installed in a suitable protected location.
Explore NZTeco’s Point of Sale range and POS software solutions, or contact NZTeco to specify customer display, storage, operating system and integrated peripheral options for your project.
A POS terminal is one part of a working counter, so selection should account for the customer display, payment equipment, barcode workflow, software and any identity or card-reading requirement. The ZKBio710 provides the configured processing, display and connection foundation, while the selected options determine the finished counter experience. Its standard DC 12V/5A power requirement and stated indoor operating conditions should be considered alongside site power, network and mounting arrangements.
For an accurate NZTeco quotation, provide the preferred customer display, Windows version, storage capacity, Wi-Fi requirement and any fingerprint, barcode, MSR or RFID module. This allows the terminal to be configured around the intended POS software and checkout workflow rather than treating optional hardware as standard inclusions.
| Specification | ZKBio710 |
|---|---|
| Product type | All-in-one POS terminal |
| Processor | Intel Celeron J1900 @ 1.99GHz; optional Intel Celeron J6412 @ 2.00GHz |
| Memory | 4GB RAM standard (DDR3 & DDR4), up to 8GB |
| Storage | 64GB SSD standard, up to 512GB; optional M.2 SATA SSD 120GB and HDD 500GB external memory slots |
| Main display | 15-inch HD, 1024 × 768 capacitive touch screen |
| Customer display configurations | 8-character LED digital tube; 2 × 20-line VFD; 9.7-inch LCD HD 1024 × 768; or 15-inch LCD HD 1024 × 768 |
| Construction | Aluminium alloys, ABS |
| Colour | Black and grey; white optional |
| Operating system support | Windows 7, 8, 10 and 11 |
| Dimensions | 346 × 190 × 402mm |
| Net weight | 5.4kg (configurations 1 & 2); 6.3kg (configuration 3); 7.8kg (configuration 4) |
| Interfaces | 1 × USB 3.0; 5 × USB 2.0; 1 × RJ45 LAN; 1 × COM; 1 × VGA; audio jack; MIC IN; power port |
| Power supply | DC 12V/5A |
| Wi-Fi | Optional single-band 2.4GHz or dual-band 2.4GHz/5GHz |
| Bluetooth | Not supported |
| Optional integrated modules | Fingerprint, 2D barcode scanner, MSR, RFID reader |
| Operating environment | 0°C to 40°C at 20% to 80% humidity |
| Storage environment | -15°C to 60°C at 20% to 80% humidity |
| Certifications | ISO9001, CE, FCC, RoHS |
