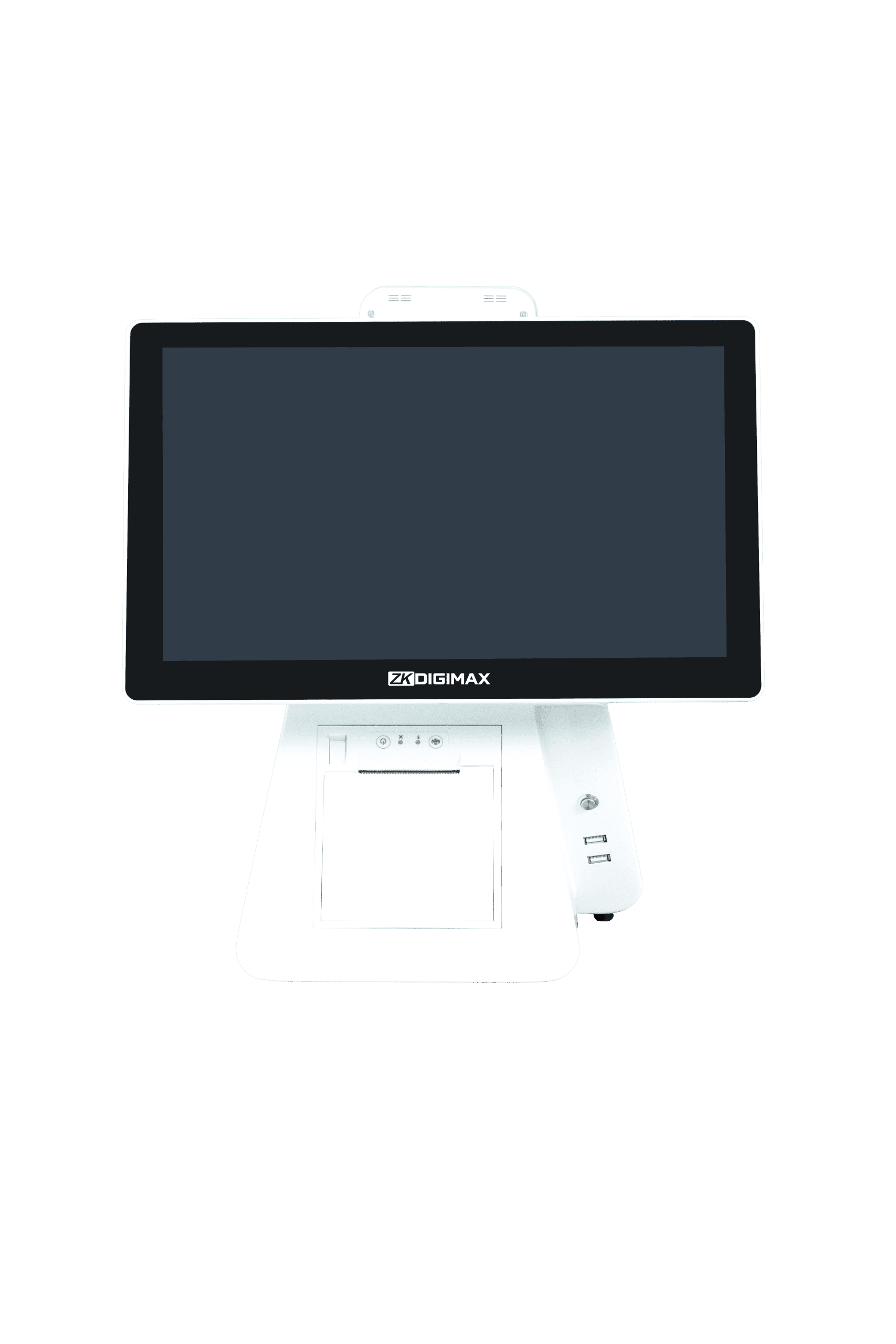

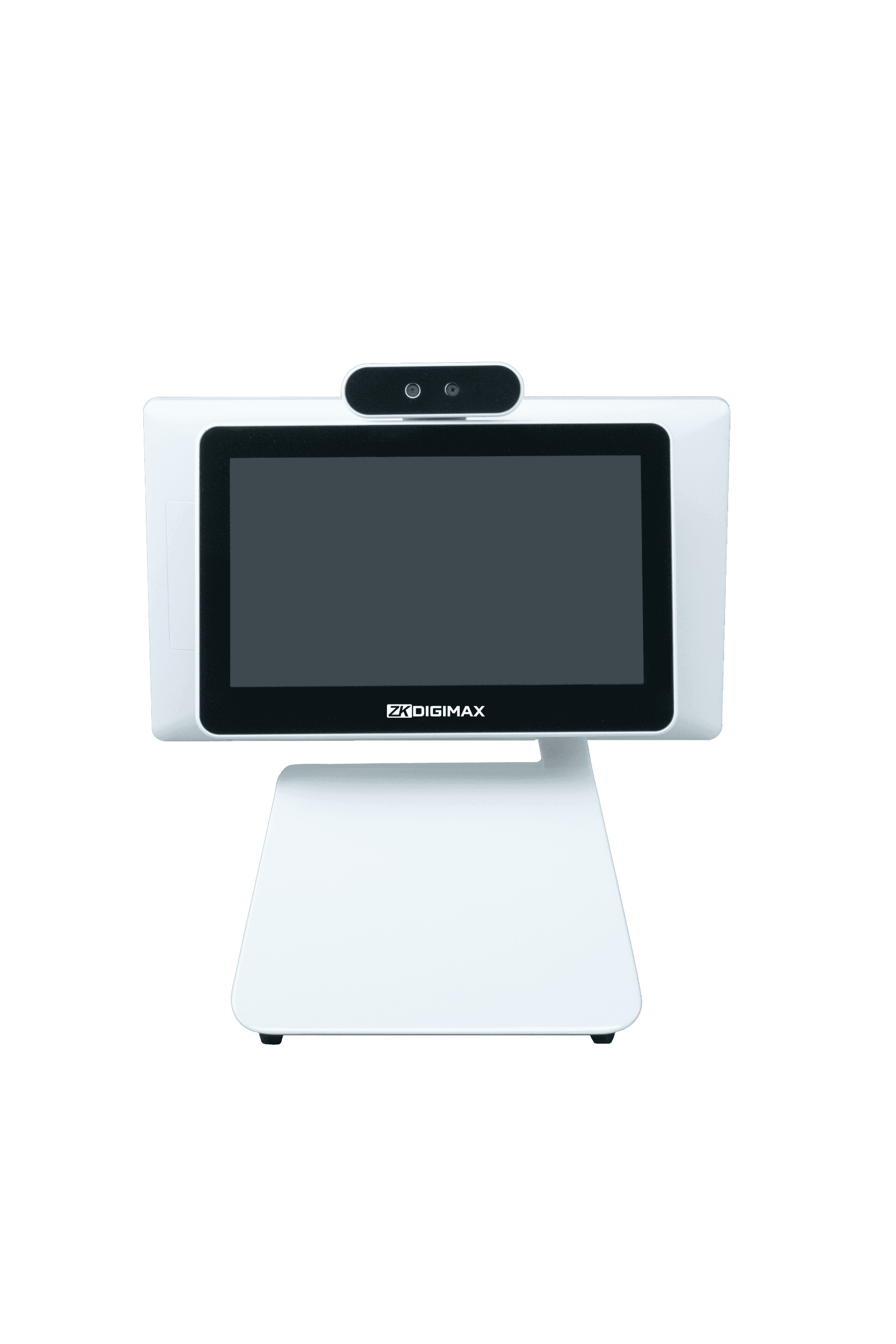

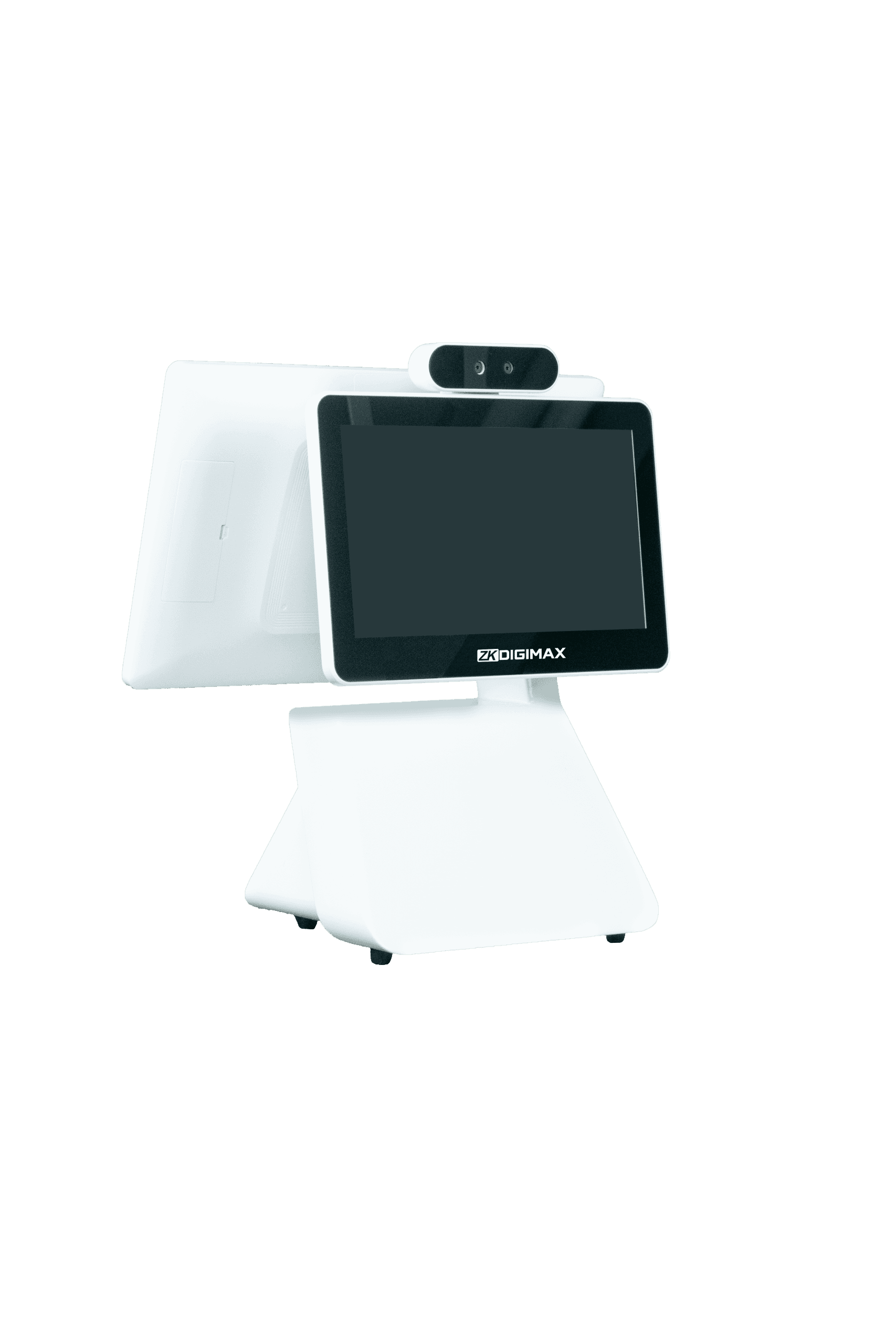

ZKDigimax SC01-TD-A4000C AI POS terminal with 15-inch true-flat touchscreen, configuration-dependent customer displays and optional POS peripherals for retail and hospitality counters.
The ZKDigimax SC01-TD-A4000C AI POS terminal brings a touchscreen point-of-sale workstation, integrated peripheral options and a compact counter format together for retail and hospitality operations. It is designed for businesses that want a modern POS platform with a 15-inch true-flat capacitive touchscreen, space-saving design and provision for the hardware components commonly used at the counter.
The product’s AI POS concept is intended for deployments that use customer data and demographics to support tailored advertising and promotions. The suitability of this functionality depends on the selected POS software, lawful data collection, customer consent and the business’s privacy obligations. NZTeco can help assess the POS hardware fit, but the software and compliance workflow must be confirmed for the project.
The SC01-TD-A4000C is specified as an all-in-one integrated POS with a 15-inch true-flat PCAP touchscreen. The official product brochure lists a built-in fingerprint reader, 2D barcode scanner and MSR as optional peripherals, giving businesses a platform that can be configured around the intended transaction and identification workflow. Its fanless cooling system uses heat-pipe technology, and the design includes hidden cable management to help maintain a cleaner counter presentation.
It is available in black and grey, with white listed as an option. The case uses aluminium alloy and ABS. The terminal measures 346 × 190 × 402mm and is specified for 0°C to 40°C operation at 20% to 80% humidity.
The brochure lists Intel Celeron J1900, Intel Core i3-6100U and Intel Core i5-6200U processor choices, with 4GB RAM standard and up to 8GB stated. Storage is listed as 64GB SSD standard, expandable to 512GB. It also lists multiple secondary-display configurations, including LED, VFD, 9.7-inch LCD and 15-inch LCD options. These are configuration-dependent values, so NZTeco will confirm the required build before quotation.
Available interfaces vary with the selected processor configuration and include USB, LAN, COM, VGA, HDMI, audio and microphone connections. Optional Wi-Fi is also listed. Confirm the exact operating system, POS application, barcode scanner, payment terminal, receipt printer and customer-display requirements before ordering.
Where a business plans to use customer demographics or targeted promotions, the process must be designed around clear legal and privacy obligations. Define the customer-data source, consent process, permitted use, retention and access controls before activating any related software function. This helps make the counter workflow useful to the business while respecting customers and applicable requirements.
Explore our point-of-sale products, POS software systems and ZKDigimax range. Contact NZTeco with your software, checkout peripherals, customer display and site requirements for pricing and configuration support.
Plan enough bench space for the touchscreen, payment device, optional scanner and receipt printer, together with clear access for staff. Use the terminal’s cable-management design to keep power and data routes tidy, and confirm the selected peripherals with the POS application before commissioning. This makes the counter easier to operate and supports a consistent checkout experience during busy service periods.
| Specification | SC01-TD-A4000C AI POS |
|---|---|
| Main display | 15-inch HD, 1024 × 768, capacitive touchscreen |
| Processor options | Intel Celeron J1900; Intel Core i3-6100U; Intel Core i5-6200U |
| Memory | 4GB RAM standard; up to 8GB |
| Storage | 64GB SSD standard; up to 512GB |
| Secondary display options | LED, VFD, 9.7-inch LCD or 15-inch LCD, configuration dependent |
| Material | Aluminium alloy and ABS |
| Colours | Black and grey; white optional |
| Dimensions | 346 × 190 × 402mm |
| Power supply | DC12V/5A |
| Wi-Fi | Single-band 2.4GHz or dual-band 2.4GHz/5GHz, optional |
| Optional peripherals | Fingerprint reader, 2D barcode scanner, MSR reader and RFID reader |
| Operating temperature | 0°C to 40°C at 20%–80% humidity |
| Storage temperature | -15°C to 60°C at 20%–80% humidity |
