ZKTeco ZKAIO4000W All-in-One Android POS Terminal

Description

The ZKTeco ZKAIO4000W is an all-in-one Android POS terminal designed to bring the display, customer-facing screen, receipt printer and counter connections together in one streamlined unit. It is well suited to retail outlets, restaurants, cafés and coffee shops that need a compact point-of-sale workstation with a modern touchscreen interface and a tidy counter footprint.

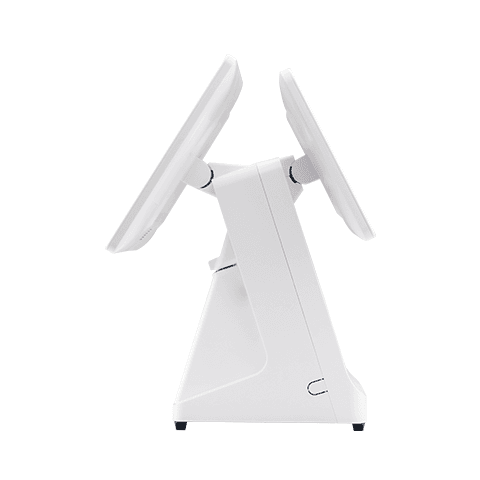

At the operator side, the ZKAIO4000W uses a 15.6-inch bezel-free, true-flat LCD with projected capacitive multi-touch. A standard 11.6-inch secondary customer display provides a clear second screen for customer-facing information. The terminal is built around an ARM Cortex-A17 quad-core processor with Android 7.1, 2GB DDR3 RAM and 16GB ROM.

Integrated receipt printing and counter connectivity

A built-in 80mm thermal printer gives the terminal an integrated receipt-printing workflow, with a 58mm printer option available. The unit also provides a direct RJ11 connection for a cash drawer, helping keep routine counter hardware contained within the POS setup rather than relying on separate desktop peripherals.

For connection to the wider store network and accessories, the ZKAIO4000W includes four USB ports, one Micro USB OTG port and one RJ45 LAN port supporting 10/100Mbps. Wi-Fi 802.11 b/g/n is supported for sites that require wireless network connectivity. Confirm the requirements of your chosen POS software, payment terminal and peripheral devices before deployment so that the complete counter workflow is compatible.

Designed for retail and hospitality counters

The ZKAIO4000W offers a 395 × 225 × 430mm footprint and a net weight of 5.2kg. Its ABS enclosure is supplied in white, with black listed as an option. The adjustable, integrated form factor is a practical choice for service counters that need operator visibility, customer engagement and receipt printing without filling the bench with separate screens and printer hardware.

It is specified for operation from -10°C to +40°C and 0% to 90% RH, non-condensing. This is an indoor commercial POS terminal: position it in an appropriate counter environment and plan power, network, cash-drawer cabling and ongoing access for receipt-paper replacement as part of the installation.

Choose the terminal around your POS application

The ZKAIO4000W supplies the Android POS hardware platform; POS software, payment acceptance, barcode scanning and other store integrations depend on the selected software and peripherals. Before ordering, confirm application support for Android 7.1, required network connectivity, receipt-printer settings, cash-drawer interface and customer-display workflow. NZTeco can help you assess the terminal’s hardware fit for the intended counter and operational process.

Talk to NZTeco about POS hardware

Explore NZTeco’s point-of-sale products and POS software systems, or browse the wider ZKTeco range. For a ZKAIO4000W proposal and project pricing, contact NZTeco with your software, peripheral and counter requirements.

Prepare the counter for a reliable POS workflow

A good POS installation begins with the counter layout. Allow space for the operator to use the touchscreen comfortably, present the secondary display to the customer and replace thermal-paper rolls without disturbing cables. Plan a protected power outlet and either a wired LAN point or appropriate Wi-Fi coverage. If the terminal is used with a payment device, barcode scanner or cash drawer, confirm the selected accessory interfaces and software settings before commissioning. This creates a cleaner handover and supports day-to-day service at the counter.
