A commercial ZKDigimax video wall display series with 43, 49 and 55-inch models, IPS viewing, Android 11 and ScreenDirect CMS compatibility for retail, showroom and meeting-space content.

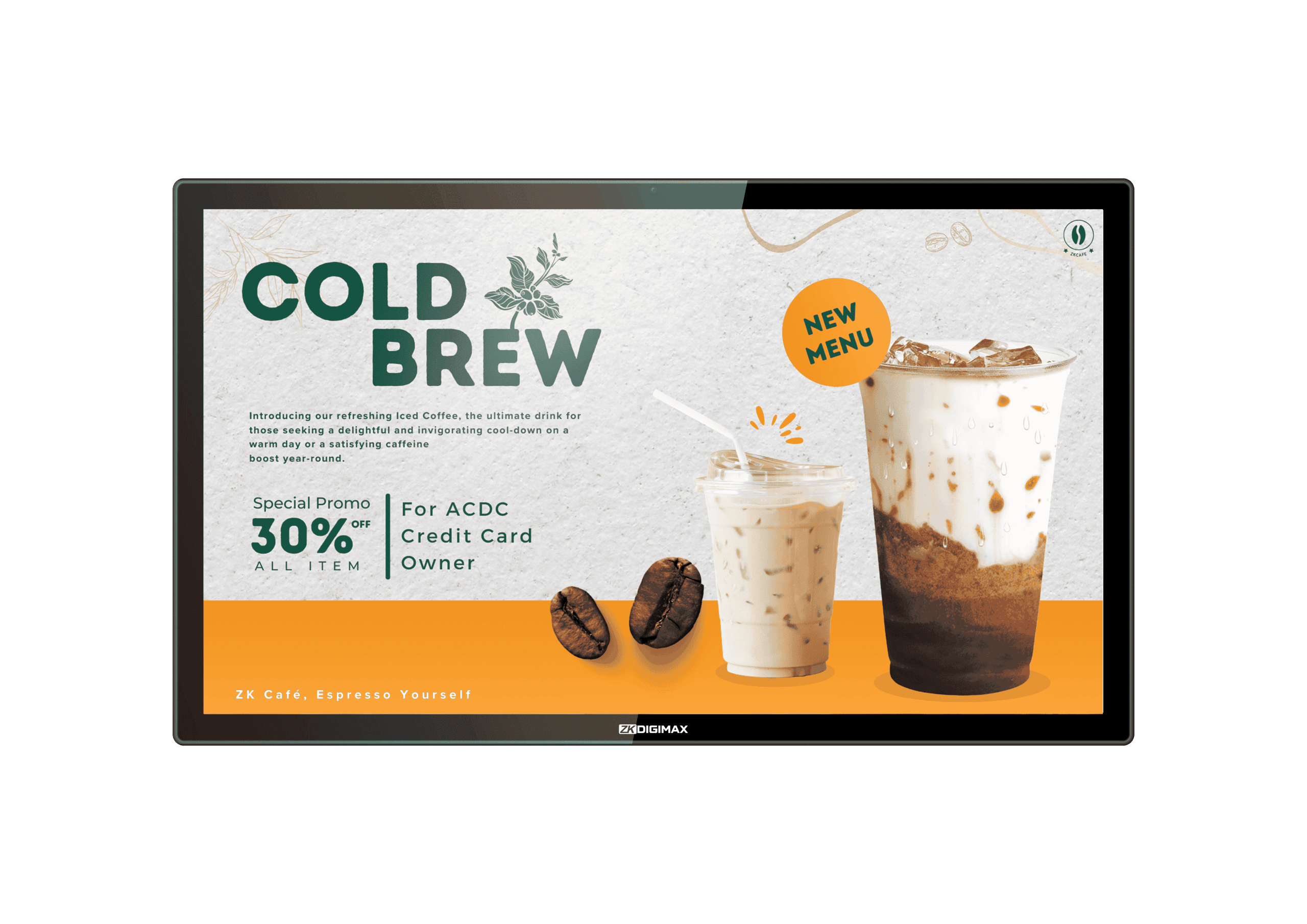

ZKDigimax DG03-A2W video wall displays give commercial spaces a practical way to deliver high-impact visual communication across retail, showroom, hospitality and meeting environments. The series is available in 43-inch, 49-inch and 55-inch screen sizes, helping designers and operators select a format that suits the available wall area, intended viewing distance and content plan. With a slim commercial profile, Full HD presentation and IPS screen technology, it is a strong option for organisations that want promotional, informational or branded content to remain clear and engaging throughout the day.
Each display is built around Android 11 with a quad-core Cortex-A53 processor, RK3566S chipset, 2 GB RAM and 16 GB ROM. That integrated platform supports dependable day-to-day signage playback without adding unnecessary complexity to the installation. The DG03-A2W series is compatible with ZKDigimax ScreenDirect CMS, allowing teams to organise, schedule and update approved digital content from a central content-management workflow.
The DG03-A2W43 is the 43-inch option and is rated at 1,000 cd/m² typical brightness, making it the brightest model in the range. The DG03-A2W49 and DG03-A2W55 provide 49-inch and 55-inch alternatives, each rated at 500 cd/m² typical brightness. All three models use a 16:9, 1920 × 1080 display with 16.7 million colours, 1,200:1 contrast, 60 Hz refresh frequency and 178° horizontal and vertical viewing angles.
For visual planning, bezel requirements differ by size. The DG03-A2W43 has a 1.8 mm physical border, while the DG03-A2W49 and DG03-A2W55 have 4 mm bezels. Review the selected model, mounting method, cable routing and viewing environment together before ordering so the installed display solution matches the site and content objectives.
When planning a project, consider the selected screen size alongside the content workflow, mounting method, power, network access and the viewing environment. The 43-inch model is particularly relevant where higher typical brightness is a priority, while the 49-inch and 55-inch models provide a larger display area for locations with longer viewing distances. A site survey helps confirm structural support, cable routes and practical service access before installation. NZTeco can help align the chosen DG03-A2W model with the ScreenDirect CMS workflow and the commercial objective.
The brochure specifies E-LED backlighting, an 8 ms response time and a display life of more than 30,000 hours. Integrated 3 W × 2 speakers, Ethernet, 2.4G Wi-Fi, HDMI input, USB 2.0, USB 3.0, TF card, RJ45 and earphone connections give installers useful connection options for the wider audiovisual setup. The series also supports common image, audio and video file formats, giving content teams flexibility when preparing campaigns and information screens.
ZKDigimax has designed the range with seamless orientation switching and a sleek, lightweight look for contemporary interior environments. This makes the DG03-A2W series well suited to changing campaign layouts, branded portrait concepts and landscape information displays, subject to the final installation design. It is intended for indoor commercial environments, with an operating temperature range of 0°C to 40°C and operating humidity of 20% to 80% RH, non-condensing.

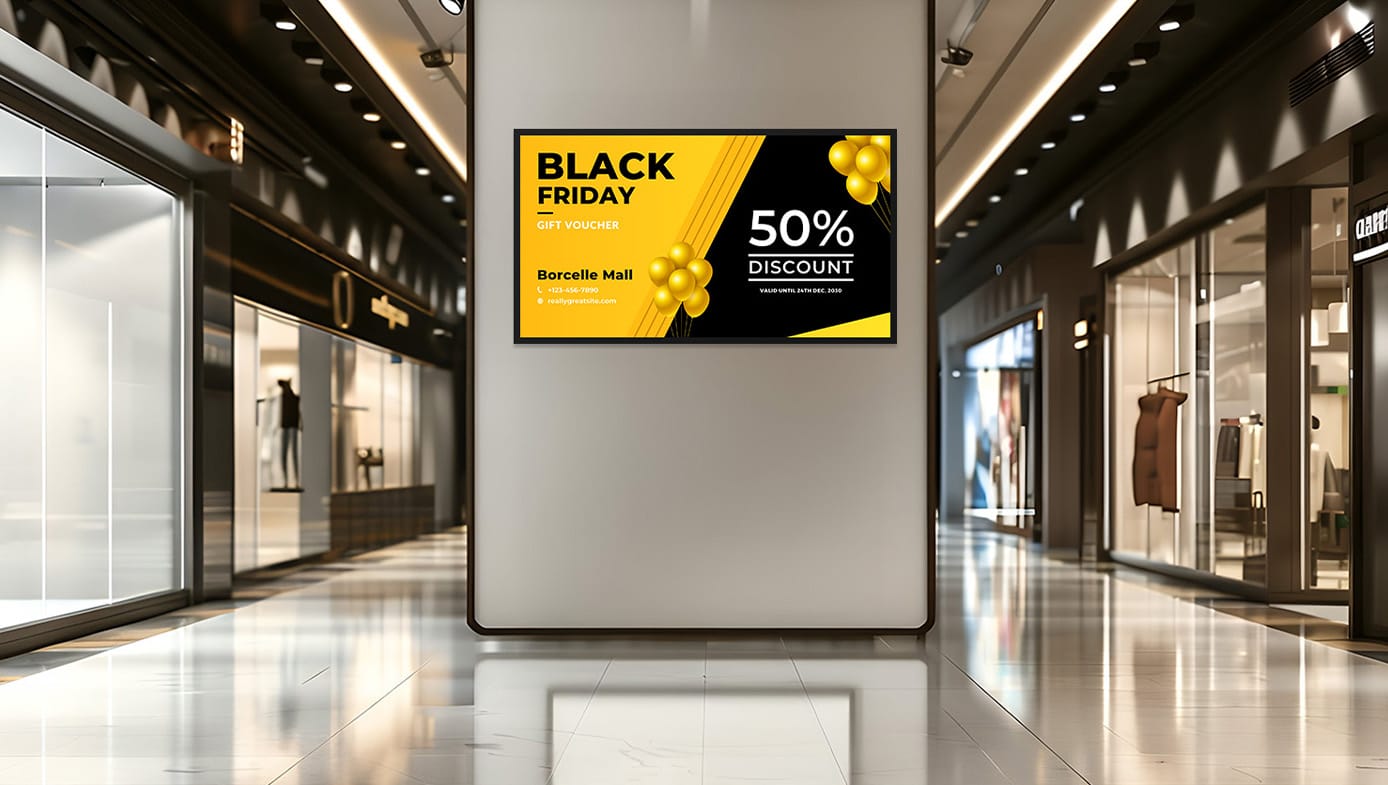

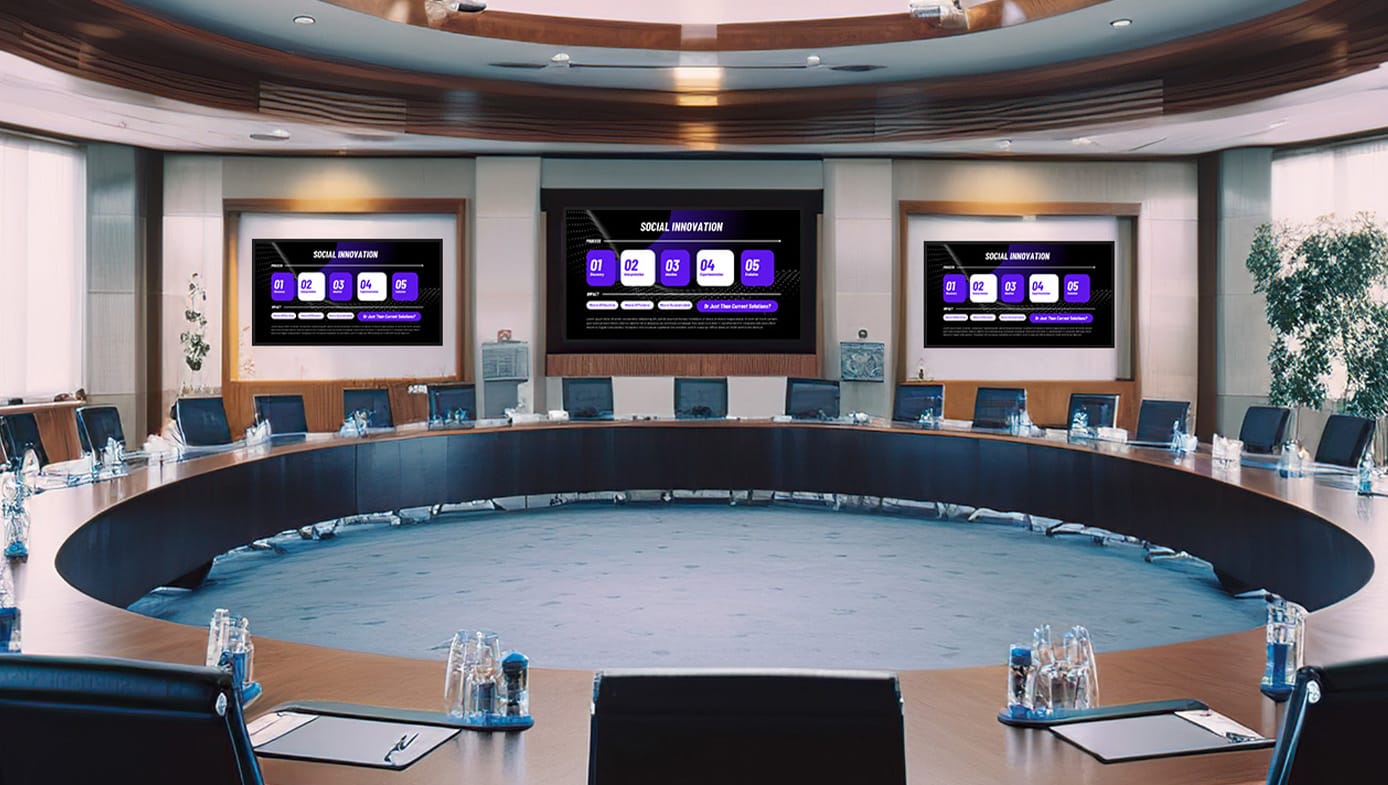

Use a ZKDigimax DG03-A2W video wall display to strengthen promotions in clothing stores and shopping malls, present brand material in automotive showrooms, or support visual collaboration in conference rooms. For related commercial display options, browse our ZKDigimax digital signage range. If you need help selecting a screen size, installation approach or ScreenDirect CMS workflow, contact NZTeco for a practical commercial recommendation and quotation.
| Specification | DG03-A2W43 | DG03-A2W49 | DG03-A2W55 |
|---|---|---|---|
| Screen size | 43-inch | 49-inch | 55-inch |
| Operating system | Android 11.0 | ||
| CPU | Quad-core Cortex-A53 | ||
| Chipset | RK3566S | ||
| Memory | 2 GB RAM | ||
| Storage | 16 GB ROM | ||
| Backlight | E-LED | ||
| Aspect ratio | 16:9 | ||
| Display colours | 16.7M | ||
| Resolution | 1920 × 1080 | ||
| Contrast | 1200:1 | ||
| Refresh frequency | 60 Hz | ||
| Viewing angle | 178° (H) / 178° (V) | ||
| Brightness | 1000 cd/m² (typ.) | 500 cd/m² (typ.) | 500 cd/m² (typ.) |
| Response time | 8 ms | ||
| Bezel thickness | 1.8 mm (physical border) | 4 mm | 4 mm |
| Display life | >30,000 hours | ||
| Speaker power | 3 W × 2 | ||
| Interfaces | 1 × RJ45, 1 × earphone, 1 × USB 2.0, 1 × USB 3.0, 1 × HDMI In, 1 × TF card | ||
| Image formats | JPG, BMP, PNG, GIF | ||
| Audio formats | MP3, WMA, MP2, OGG, AAC, M4A, WMA4, FLAC, APE, 3GP, WAV | ||
| Wi-Fi | 2.4G | ||
| Ethernet | RJ45 | ||
| Power input | AC 100–240 V, 50/60 Hz | ||
| Rated consumption | ≤150 W | ||
| Standby consumption | <0.5 W | ||
| Product dimensions (L × H × W) | 953.7 × 542 × 27.7 mm | 1094.2 × 625.4 × 47.7 mm | 1233.8 × 704.6 × 47.7 mm |
| Package dimensions (L × H × W) | 1025 × 640 × 130 mm | 1245 × 790 × 150 mm | 1370 × 850 × 160 mm |
| Net weight | 10.9 kg | 13 kg | 19 kg |
| Gross weight | 14.9 kg | 18 kg | 24 kg |
| Operating temperature | 0°C to 40°C | ||
| Storage temperature | -20°C to 60°C | ||
| Operating humidity | 20% to 80% RH (non-condensing) | ||
| Storage humidity | 10% to 90% RH (non-condensing) | ||
