ZKDigimax indoor rental LED display for stage, exhibition and temporary-event video walls. P2.604, P2.97 and P3.91 options with lightweight die-cast cabinets.

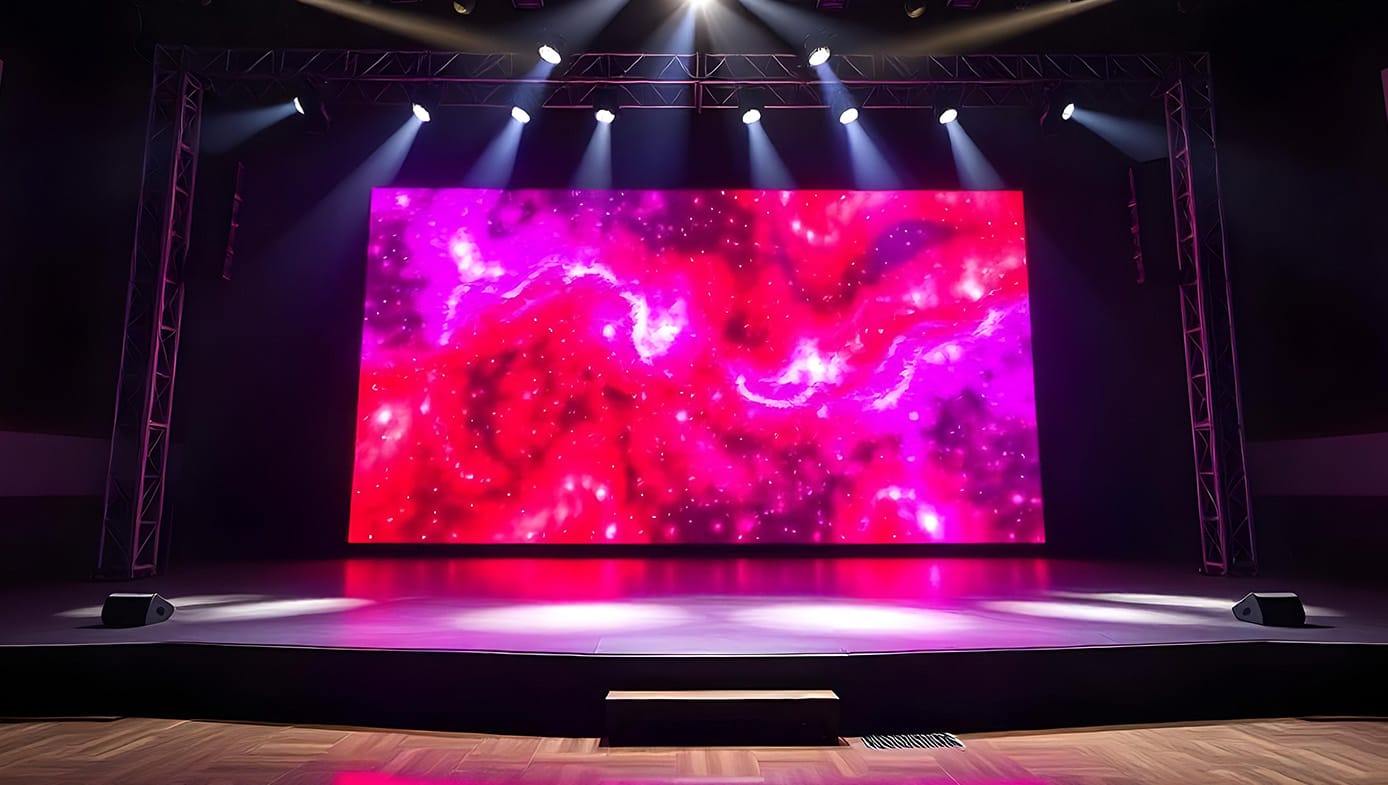

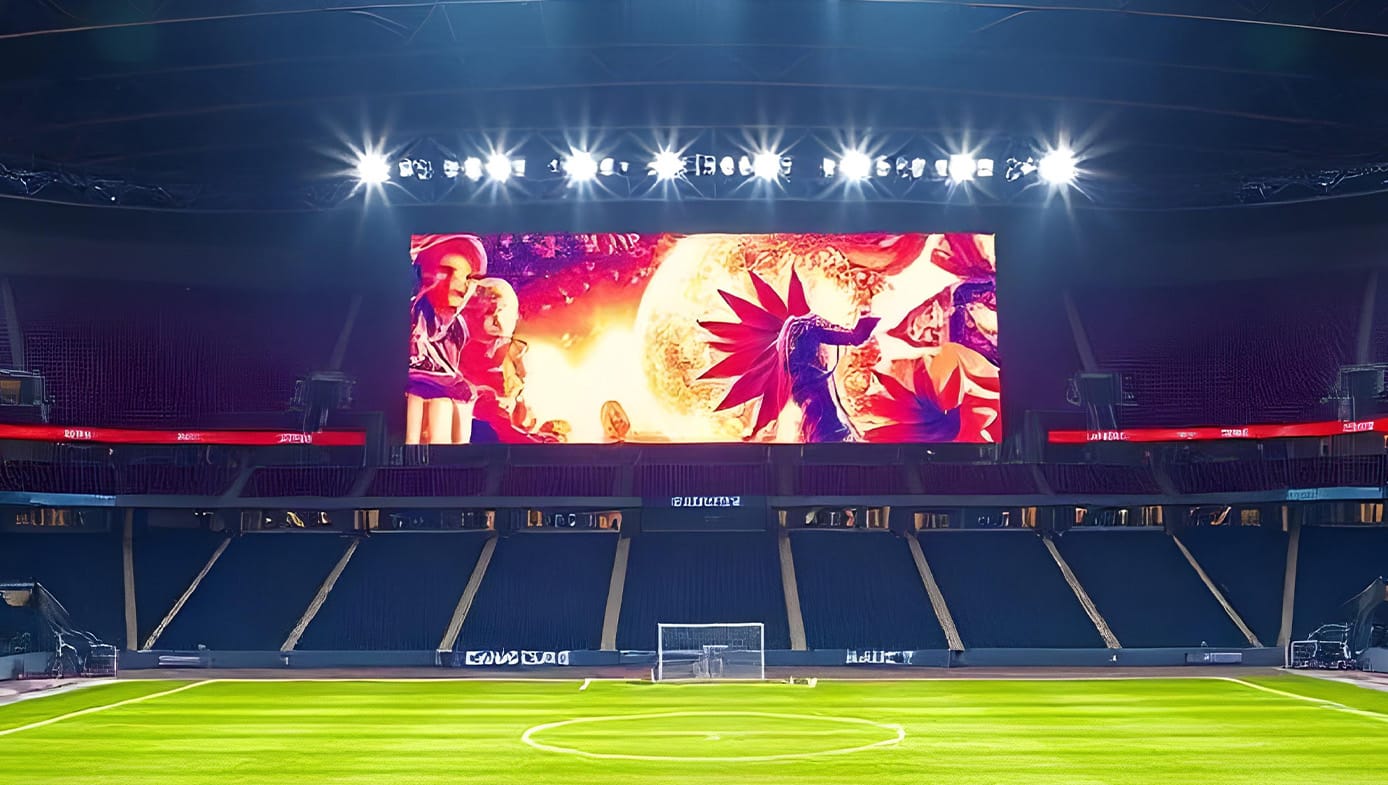

The ZKDigimax DG01-C1 Indoor Rental LED Display is a modular LED screen range for temporary video-wall projects where polished presentation, practical handling and reliable event performance matter. Designed for stage performances, cultural events, exhibitions, stadium environments and retail display projects, it provides a large-format digital canvas for show visuals, live content, presentations, sponsor messaging and branded campaigns.
The DG01-C1 series uses a die-cast aluminium cabinet design that is lightweight, slim and portable. Its quick-install format is designed around rental workflows, helping event teams move equipment into position, build the screen efficiently and remove it after the programme. The range is also described by ZKDigimax as noise-free and high-protection, making it a well-considered option for indoor AV environments where the display should support the production rather than distract from it.
Three models are available: DG01-C1P26 with a 2.604 mm pixel pitch, DG01-C1P29 with a 2.97 mm pixel pitch, and DG01-C1P39 with a 3.91 mm pixel pitch. The P2.604 and P2.97 options are specified for viewing distances from 2 m to 15 m, while P3.91 is specified for 3 m to 15 m. This gives project teams a practical starting point when balancing screen size, audience position and budget.
Across the range, the display delivers 500–700 nits brightness, a 110° horizontal and vertical viewing angle, manual or automatic brightness control, and a 1,920–3,840 Hz refresh rate. Colour temperature is specified at 7,500–10,000 K. These details support clear event content for audiences viewing from different positions within an indoor venue.

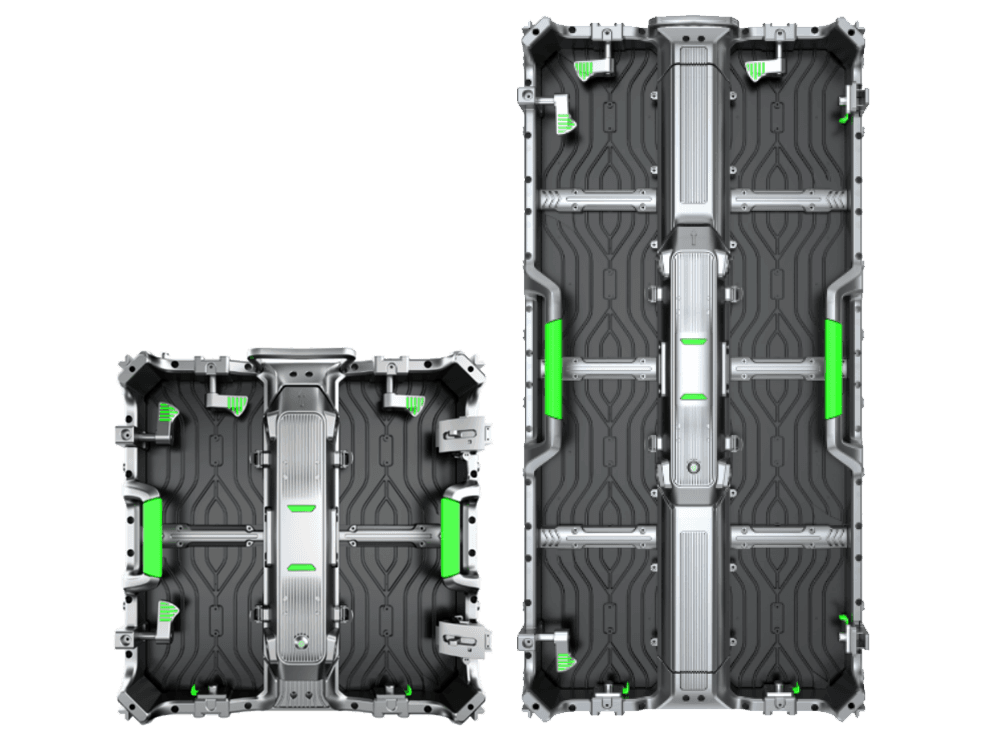

DG01-C1 cabinets are available in 500 × 500 × 90 mm and 500 × 1,000 × 90 mm formats. The 500 mm-high cabinet weighs 8.5 kg per panel, while the 1,000 mm-high cabinet weighs 10.6 kg per panel. This modular approach helps a project team configure a screen to suit the available stage, exhibition or display area without treating the product as a fixed, one-size installation.
The official specification lists IP45 ingress protection and fixed support-bracket rigging. Although the range is designed for indoor rental projects, every installation should be assessed for the venue, structural support, electrical supply and audience environment. NZTeco can help coordinate a configuration that suits the display size, screen content, signal path and installation plan.
A successful rental LED project starts with a clear brief. Include the required screen width and height, the nearest audience position, venue access, event run sheet and the content that will be shown. It is also useful to identify signal-source, playback, power and cable-routing requirements early, so the display layout can be planned alongside the wider AV system.
The DG01-C1 specification covers the LED cabinets themselves; screen structure, support-bracket arrangement, electrical work, signal equipment and installation method should be selected for the individual site. Coordinating these details before load-in helps the event team create a display that fits the venue, meets the programme schedule and can be installed and dismantled safely by suitably qualified personnel.
Explore our ZKDigimax LED display range or view the ZKDigimax brand range for related solutions. To discuss the DG01-C1 model options, pixel pitch, cabinet layout and a project-specific quote, contact NZTeco with your venue, screen dimensions and event requirements.
| Specification | DG01-C1P26 | DG01-C1P29 | DG01-C1P39 |
|---|---|---|---|
| Pixel pitch | 2.604 mm | 2.97 mm | 3.91 mm |
| LED type | 1515 SMD 3-in-1 | 2121 SMD 3-in-1 | 2121 SMD 3-in-1 |
| Brightness | 500–700 nits | 500–700 nits | 500–700 nits |
| Colour temperature | 7,500–10,000 K | 7,500–10,000 K | 7,500–10,000 K |
| Viewing angle | H: 110°; V: 110° | H: 110°; V: 110° | H: 110°; V: 110° |
| Cabinet size | 500 × 500 × 90 mm; 500 × 1,000 × 90 mm | 500 × 500 × 90 mm; 500 × 1,000 × 90 mm | 500 × 500 × 90 mm; 500 × 1,000 × 90 mm |
| Cabinet resolution | 192 × 192 dots; 192 × 384 dots | 168 × 168 dots; 168 × 336 dots | 128 × 128 dots; 128 × 256 dots |
| Pixel density | 147,456 pixels/m² | 112,896 pixels/m² | 65,536 pixels/m² |
| Driving method | 1/32S | 1/28S | 1/16S |
| Greyscale | 14 bits | 14 bits | 15 bits |
| Brightness control | Manual / automatic | Manual / automatic | Manual / automatic |
| Maximum contrast | 3,000:1 | 3,000:1 | 3,000:1 |
| Input power frequency | 50/60 Hz | 50/60 Hz | 50/60 Hz |
| Refresh rate | 1,920–3,840 Hz | 1,920–3,840 Hz | 1,920–3,840 Hz |
| Input voltage | 200–240 Vac; 100–240 Vac | 200–240 Vac; 100–240 Vac | 200–240 Vac; 100–240 Vac |
| Power specification | 500-H: 200 W 5 Vdc; 1000-H: 400 W 5 Vdc | 500-H: 200 W 5 Vdc; 1000-H: 400 W 5 Vdc | 500-H: 200 W 5 Vdc; 1000-H: 400 W 5 Vdc |
| Maximum input power | 500 W/m² | 500 W/m² | 500 W/m² |
| Typical input power | 150 W/m² | 150 W/m² | 150 W/m² |
| Service life | ≤50,000 hours | ≤50,000 hours | ≤50,000 hours |
| Viewing distance | 2–15 m | 2–15 m | 3–15 m |
| Weight | 500-H: 8.5 kg/panel; 1000-H: 10.6 kg/panel | 500-H: 8.5 kg/panel; 1000-H: 10.6 kg/panel | 500-H: 8.5 kg/panel; 1000-H: 10.6 kg/panel |
| Diagonal | 500-H: 27.8 in; 1000-H: 44 in | 500-H: 27.8 in; 1000-H: 44 in | 500-H: 27.8 in; 1000-H: 44 in |
| Aspect ratio | 500-H: 1:1; 1000-H: 1:2 | 500-H: 1:1; 1000-H: 1:2 | 500-H: 1:1; 1000-H: 1:2 |
| Material | Die-cast aluminium | Die-cast aluminium | Die-cast aluminium |
| Ingress protection | IP45 | IP45 | IP45 |
| Operating temperature | −10°C to +45°C; ≤55% RH | −10°C to +45°C; ≤55% RH | −10°C to +45°C; ≤55% RH |
| Storage temperature | −10°C to +55°C; ≤55% RH | −10°C to +55°C; ≤55% RH | −10°C to +55°C; ≤55% RH |
| Rigging form | Fixed with support bracket | Fixed with support bracket | Fixed with support bracket |
